Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm

  • Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm
  • Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm
Place of Origin China
Brand Name HNJBL
Certification SGS, BV
Model Number Q235, Q235B
Minimum Order Quantity 1ton
Price Negotiate
Packaging Details Waterproof,Standard Sea-worthy Packing
Delivery Time 5-25working days
Payment Terms L/C, T/T
Supply Ability 50000ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Structural Steel Grade A36
Processing Bending Web Width 100-1000mm Or As Requested
Application CONSTRUCTION MNQ 2.1Tons
Highlight

Structural ASTM A992 Beam

,

ASTM A992 Beam Black Galvanized

,

ASTM A992 Galvanized Steel H Beam
Leave a Message
Product Description

ASTM A992 Steel Beams​





Description:


ASTM A992 Steel Beams

ASTM A992 steel I beam

ASTM A992 steel contains small content of vanadium or columbium, copper, nickel, chrome and molybdenum, all of which greatly improve A992 comprehensive property. On one hand, it is similar to A572-50 in low ratio of weight-to-strength. on the other hand, the alloy elements optimize the inside structure of the steel and improves its properties.

ASTM A992 Steel I beam is the prime alternative for bridge construction and building frames for its yield strength reaches 65 ksi.

Product description:

  • Item: ASTM A992 steel beam.
  • Technology: hot rolled.
  • Surface treatment: black, galvanized or primed.
  • Sizes: IPN & IPE european standard.
  • Web width: 42 - 215 mm.
  • Depth: 80 - 600 mm.
  • Web thickness: 3.8 - 21.6 mm.
  • Note: special steel beam sizes are customized on order.
Technical data
ASTM A992 HSLA I beam chemical composition
Steel grade Styles Carbon, max, % Manganese, % Silicon, max, % Vanadium, max, % Columbium, max, % Phosphorus, max, % Sulfur, max, %
A992 Steel sections 0.23 0.50 - 1.60 0.40 0.15 0.05 0.035 0.045

A992 high strength i beam mechanical property
Steel grade Styles Tensile strength, ksi Yield point, min, ksi
A992 Steel sections 65 65

ASTM A992 steel beam - IPE dimensions (parallel flanges)
Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
IPE 80 6.0 80 46 3.8 5.2
IPE 100 8.1 100 55 4.1 5.7
IPE 120 10.4 120 64 4.4 6.3
IPE 140 12.9 140 73 4.7 6.9
IPE 160 15.8 160 82 5.0 7.4
IPE 180 18.8 180 91 5.3 8.0
IPE 200 22.4 200 100 5.6 8.5
IPE 220 26.2 220 110 5.9 9.2
IPE 240 30.7 240 120 6.2 9.8
IPE 270 36.1 270 135 6.6 10.2
IPE 300 42.2 300 150 7.1 10.7
IPE 330 49.1 330 160 7.5 11.5
IPE 360 57.1 360 170 8 12.7
IPE 400 66.3 400 180 8.6 13.6
IPE 450 79.1 450 190 9.4 14.6
IPE 500 90.7 500 200 10.2 16
IPE 550 106.0 550 210 11.2 17.2
IPE 600 124.4 600 220 12 19

ASTM A992 steel beam - IPN dimensions (tapered flanges)
Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
IPN 80 5.9 80 42 3.9 5.9
IPN 100 8.3 100 50 4.5 6.8
IPN 120 11.1 120 58 5.1 7.7
IPN 140 14.3 140 66 5.7 8.6
IPN 160 17.9 160 74 6.3 9.5
IPN 180 21.9 180 82 6.9 10.4
IPN 200 26.2 200 90 7.5 11.3
IPN 220 31.1 220 98 8.1 12.2
IPN 240 36.2 240 106 8.7 13.1
IPN 260 41.9 260 113 9.4 14.1
IPN280 47.9 280 119 10.1 15.2
IPN 300 54.2 300 125 10.8 16.2
IPN320 61.0 320 131 11.5 17.3
IPN 340 68.0 340 137 12.2 18.3
IPN 360 76.1 360 143 13 19.5


Application



Structural steel is widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large load-bearing capacity and cross-section are required Large-scale bridges with good stability and large spans; heavy equipment;highways; ship skeletons; mine supports; foundation treatment and embankment





Pictures Show

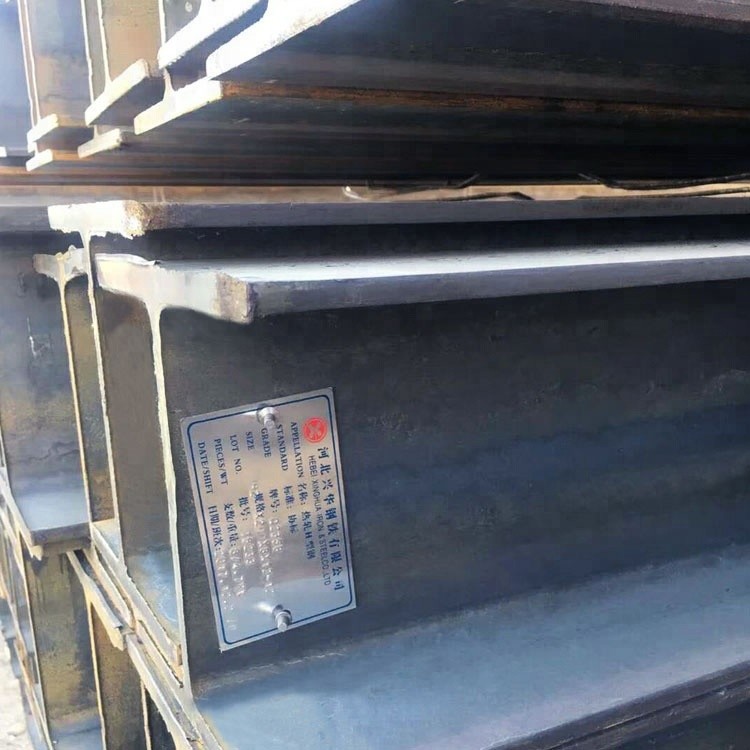

Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm 0

Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm 1

certificates

Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm 2

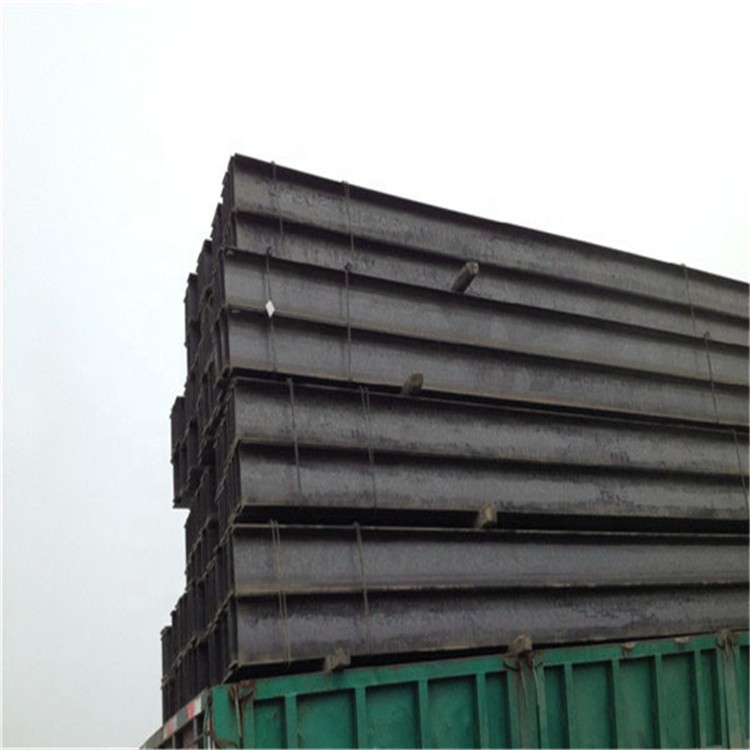

Delivery:

Structural ASTM A992 Beam Black Galvanized Primed 100mm-1000mm 3

FAQ

Q. How do I believe you?
A : We consider honesty as the life of our company, we can tell you the contact information of our some other clients
for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.




Q.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.


Q4.How about the average delivery time?
A:  it takes 15-35 days since order confirmation.

Q5. Could you do OEM?
A: Yes, we can offer the customized solution for you, such as material, hardness, thickness,width and so on.

Q6.How can I visit your factory?
A: Welcome to visit our factory at any time.
