Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure

  • Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure
  • Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure
Place of Origin China
Brand Name HNJBL
Certification SGS, BV
Model Number A36
Minimum Order Quantity 1ton
Price Negotiate
Packaging Details Waterproof,Standard Sea-worthy Packing
Delivery Time 5-25working days
Payment Terms L/C, T/T
Supply Ability 50000ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Structural Steel Application Mechanical & Manufacture, Industry
Processing Service CONSTRUCTION Web Width 100mm~900mm
Flange Thickness 3.2-45mm MNQ 1.7 Tons
Highlight

Mild Steel SS400 H Beam

,

SS400 H Beam 100*100

,

Mild Steel 100x100 H Beam
Leave a Message
Product Description

Mild Structural Steel H Beam Ss400 Weight 100*100*6*8​



Description:


Product post-tensioned anchorages h beam c purlin and z purlin/Prime hot rolled mild steel h beam







Size

 High(H) 100mm-900mm
Flange width(B) 100mm-300mm
Web thickness(t1) 6mm-16mm
Flange thickness(t2) 8mm-28mm
Length 6-12m/pc or as your request
Standard AISI, ASTM, BS, DIN, GB, JIS etc.
Material SS400, Q235B,S235JR,Q345B, S355JR etc.
Technique Hot rolled & Welded
Application

1. Industrial structure of the steel structure bearing bracket.

2. Underground engineering steel pile and retaining structure.

3. Petrochemical and electric power and other industrial equipment structure

4. Large span steel bridge components

5. Ships, machinery manufacturing frame structure

6. The train, automobile, tractor beam bracket

7. Port of conveyor belt, high speed damper bracket
Package Standard seaworthy packing or as required
Port of Shipment Tianjin Port, China
Date of Delivery 10-15 days after received the deposit
MOQ 10T
Production 5000t/ month
Payment T/T, L/C, Western union etc.

Specification





Name Model Specifications Theoretical weight (per meter)
Channel 5# 50*37*4.5 5.438
Channel 6.3# 63*40*4.8 6.634

Channel 8# 80*43*5.0 8.046
Stainless steel channel 10# width: 100mm
high: 48mm
wall thickness: 5.3mm
 Theoretical weight per meter: 10kg
Reference unit price: < $20 / kg
Channel 12# 120*53*5.5 12.059
Channel 14#A 140*58*6.0 14.535
Channel 14#B 140*60*8.0 16.733
Channel 16#A 160*63*6.5 17.24
Channel 16#B 160*65*8.5 19.752
Channel 18#A 180*68*7.0 20.174
Channel 18#B 180*70*9.0 23
Channel 20#A 200*73*7.0 22.637
Channel 20#B 200*75*9.0 25.777
Channel 22#A 220*77*7.0 24.999
Channel 22#B 220*79*9.0 28.453
Channel 25#A 250*78*7.0 27.41
Channel 25#B 250*80*9.0 31.335
Channel 25#C 250*82*1.1 35.26
Channel 28#A 280*82*7.5 31.427
Channel 28#B 280*84*9.5 35.823
Channel 28#C 280*86*11.5 40.219
Channel 30#A 300*85*7.5 34.463
Channel 30#B 300*87*9.5 39.173
Channel 30#C 300*89*11.5 43.883
Channel 32#A 320*88*8.0 38.083
Channel 32#B 320*90*10 43.107
Channel 32#C 320*92*12 48.131
Channel 36#A 360*96*9.0 47.814
Channel 36#B 360*98*11 53.466
Channel 36#C 360*100*13 59.118
Channel 40#A 400*100*10.5 58.928
Channel 40#B 400*102*12.5 65.208
Channel 40#C 400*104*14.5 71.488





HW steel
lWEIGHT(kg/m)
HM steel
WEIGHT(kg/m)
HN steel
WEIGHT(kg/m)
100*100*6*8
17.2
148*100*6*9
21.4
300*150*6.5*9
37.3
125*125*6.5*9
23.8
194*150*6*9
31.2
346*174*6*9
41.8
150*150*7*10
31.9
244*175*7*11
44.1
350*175*7*11
50
175*175*7.5*11
40.3
294*200*8*12
57.3
400*150*8*13
55.8
200*200*8*12
50.5
340*250*9*14
79.7
400*200*8*13
66
200*204*12*12
56.7
390*300*10*16
107
450*150*9*14
65.5
250*250*9*14
72.4
440*300*11*18
124
446*199*8*12
66.7
250*255*14*14
82.2
482*300*11*15
115
450*200*9*14
76.5
294*302*12*12
85
488*300*11*18
129
500*150*10*16
77.1
300*300*10*15
94.5
582*300*12*17
137
496*199*9*14
79.5
300*305*15*15
106
588*300*12*20
151
500*200*10*16
77.1
344*348*10*16
115
594*302*14*23
175
506*204*11*19
103
350*350*12*19
137
--
--
596*199*10*15
95.1
388*402*15*15
141
100*50*5*7
9.54
600*200*11*17
106
394*398*11*18
147
125*60*6*8
13.3
606*200*12*20
120
400*400*13*21
172
150*75*5*7
14.3
692*300*13*24
185
400*408*21*21
197
175*90*5*8
18.2
700*300*13*24
185
414*405*18*28
233
198*99*4.5*7
18.5
792*300*14*22
191
428*407*20*35
284
200*100*5.5*8
21.7
800*300*14*26
210



Application



Structural steel is widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large load-bearing capacity and cross-section are required Large-scale bridges with good stability and large spans; heavy equipment;highways; ship skeletons; mine supports; foundation treatment and embankment





Pictures Show

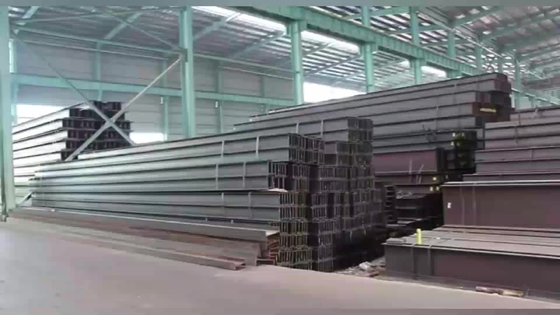

Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure 0

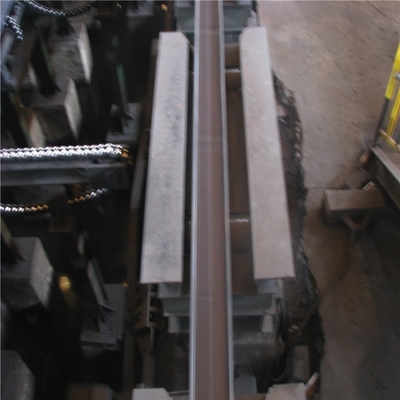

Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure 1

certificates

Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure 2

Delivery:

Mild Steel SS400 H Beam 100*100*6*8 For Petrochemical Industrial Structure 3

FAQ

Q1. Are you a trader or manufacturer?
A: We are a professional manufacturer, providing a wide range of steel products.



1. What are your advantages?

A: Honest business with competitive price and professional service on export process.


Q2.Can I get samples?
A: Yes ,we would provide samples For Free. The courier freight will be covered by customer’s account.

Q3.How about the payment terms?
A: We accept different payment terms like T/T, L/C , Cash, Western Union, Alibaba online paying etc .




Q6.How can I visit your factory?
A: Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your
schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc





2. How do I believe you?
A : We consider honesty as the life of our company, we can tell you the contact information of our some other clients
for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
