SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled

  • SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled
  • SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled
Place of Origin China
Brand Name HNJBL
Certification SGS, BV
Model Number SM490
Minimum Order Quantity 1ton
Price Negotiate
Packaging Details Waterproof,Standard Sea-worthy Packing
Delivery Time 5-25working days
Payment Terms L/C, T/T
Supply Ability 50000ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Structural Steel Application Mechanical & Manufacture, Industry
Grade SM490 Capacity 25Ton
Processing Available Bending, Welding, Punching, Cutting Web Width 100mm~900mm
Highlight

SM490 Structural Steel Profiles

,

Structural Steel Profiles 100mm

,

SM490 Hot Rolled Steel I Beam
Leave a Message
Product Description

SM490 Steel H Beam



Description:

JIS G3106 SM490YA/YB H Beam is a kind of hot rolled steel. JIS G3106 SM490YA/YB H Beams has high ability to resist bending in all directions, its carrying capacity is strong, and the construction is simple, and it can save construction cost effectively.
Product Prime SM490 Steel H Beam
Standard ASTM,AISI,JIS,EN,DIN,GB, EN
Thickness Tolerance ±5%
Web Thickness 5-16mm
Web Width 60-900mm
Flange Thickness 7-28mm
Flange Width 50-300mm
Length as your requirement
MOQ 5 tons
Technique hot rolled /welded


Structural steel H beam H type beam (IPE,UPE,HEA,HEB)
JIS G3106 SM490 YA/YB H Beam chemical composition :

Standard Grade Method of Deoxidization Chemical Components%
C≤ Si≤ Mn≤ P≤ S≤ Nb≤ V≤ Ti≤ Als≥
(Chinese Standard) Q235B Z 0.2 0.35 1.4 0.045 0.045
Q345B Z 0.2 0.5 1.7 0.035 0.035 0.07 0.2 0.2
Q420B Z 0.2 0.5 1.7 0.035 0.035 0.07 0.2 0.2
Q420C Z 0.2 0.5 1.7 0.03 0.03 0.07 0.2 0.2 0.015
Q460C Z 0.2 0.6 1.8 0.03 0.03 0.11 0.2 0.2 0.015
JIS Standard SS400 Z       0.05 0.05
SS540 Z     1.6 0.04 0.04
EN Standard S235JR Z 0.17   1.4 0.035 0.035
S235JO Z 0.17   1.4 0.03 0.03
S235J2 Z 0.17   1.4 0.025 0.025
S275JR Z 0.21   1.5 0.035 0.035
S275JO Z 0.18   1.5 0.03 0.03
S275J2 Z 0.18   1.5 0.025 0.025
S355JR Z 0.24 0.55 1.6 0.035 0.035
S355JO Z 0.2 0.55 1.6 0.03 0.03
S355J2 Z 0.2 0.55 1.6 0.025 0.025
(ASTM Standard) A36 Z 0.25 0.4   0.04 0.05
A572-50 Z 0.23 0.4 1.35 0.4 0.05 0.05 0.15 0.15
A572-60 Z 0.26 0.4 1.3 0.04 0.05 0.05 0.15 0.15
shipbuilding A Z 0.21 0.5 ≥2.5C 0.035 0.035
B Z 0.21 0.35 0.8~1.2 0.035 0.035




Standard Grade Mechanical Property

(N/MM2)

Tensile Strength

 (N/MM2) Yield Strength

Percentage Elongation after

Fracture

 Impact Power
≤16 16~40 20℃ 0℃ -20℃
(Chinese Standard) Q235B 370-500 ≥235 ≥225 ≥26 ≥27
Q345B 470-630 ≥345 ≥325 ≥21 ≥34
Q420B 520-680 ≥420 ≥400 ≥18 ≥34
Q420C 520-680 ≥420 ≥400 ≥19   ≥34
Q460C 550-720 ≥460 ≥440 ≥17   ≥34
JIS Standard SS400 400-510 ≥245 ≥235 ≥23
SS540 ≥540 ≥400 ≥390 ≥17
EN Standard S235JR 360-510 ≥235 ≥225 ≥26 ≥27
S235JO 360-510 ≥235 ≥225 ≥26   ≥27
S235J2 360-510 ≥235 ≥225 ≥24     ≥27
S275JR 410-560 ≥275 ≥265 ≥23 ≥27
S275JO 410-560 ≥275 ≥265 ≥23   ≥27
S275J2 410-560 ≥275 ≥265 ≥21     ≥27
S355JR 470-630 ≥355 ≥345 ≥22
S355JO 470-630 ≥355 ≥345 ≥22
S355J2 470-630 ≥355 ≥345 ≥22
(ASTM Standard) A36 400-550 ≥250 ≥250 ≥23
A572-50 ≥450 ≥345 ≥345 ≥21
A572-60 ≥520 ≥415 ≥415 ≥18
shipbuilding A 400-520 ≥235 ≥235 ≥22
B 400-520 ≥235 ≥235 ≥22   ≥27

Comparison Table
Nominal
Size(mm)		 H×B
(mm)		 T1(mm) T2(mm) JIS Weight
(kg/m)		 GB Weight
(kg/m)		 Available
Length
100×100 100×100 6 8 16.9 17.2 6-16m
120×120 125×125 6.5 9 23.6 23.8 6-16m
150×75 150×75 5 7 14 14.3 6-16m
150×100 148×100 6 9 20.7 21.4 6-16m
150×150 150×150 7 10 31.1 31.9 6-16m
175×90 175×90 5 8 18 18.2 6-16m
175×175 175×175 7.5 11 40.4 40.4 6-16m
194×150 194×150 6 9 29.9 31.2 6-16m
200×100 198×99 4.5 7 17.8 18.5 6-16m
  200×100 5.5 8 20.9 21.7 6-16m
200×200 200×200 8 12 49.9 50.5 6-16m
200×204 12 12 56.2 56.7 6-16m
250×125 248×124 5 8 25.1 25.8 6-16m
250×125 6 9 29 29.7 6-16m
250×175 244×175 7 11 43.6 44.1 6-16m
300×150 298×149 5.5 8 32 32.6 6-16m
300×150 6.5 9 36.7 37.3 6-16m
300×200 294×200 8 12 55.8 57.3 6-16m
298×201 9 14 65.4   6-16m
350×175 346×174 6 9 41.2 41.8 6-16m
350×175 7 11 49.4 50 6-16m
400×200 396×199 7 11 56.1 56.7 6-16m
400×200 8 13 65.4 66 6-16m
250×250 250×250 9 14 71.8 72.4 6-16m
250×255 14 14 81.6 82.2 6-16m
300×300 300×300 10 15 93 94.5 6-16m
294×302 12 12 83.4 85 6-16m
300×305 15 15 105 106 6-16m
350×350 344×348 10 16 113 115 6-16m
350×350 12 1 135 137 6-16m
400×400 388×402 15 15 140 141 6-16m
394×398 11 18 147 147 6-16m
400×400 13 21 172 172 6-16m
400×408 21 21 197 197 6-16m
414×405 18 28 232 233 6-16m
428×407 20 35 283 284 6-16m
350×250 340×250 9 14 78.1 79.7 6-16m
400×300 390×300 10 16 105 107 6-16m
450×300 440×300 11 18 121 124 6-16m
450×200 446×199 8 12 65.1 66.7 6-16m
450×200 9 14 74.9 76.5 6-16m
500×300 482×300 11 15 111 115 6-16m
488×300 11 18 125 129 6-16m
500×200 496×199 9 14 77.9 79.5 6-16m
500×200 10 16 88.2 89.6 6-16m
506×201 11 19 102 103 6-16m
600×200 600×200 11 17 103.4 106 6-16m
596×199 10 15 92.4 95.1 6-16m
606×201 12 20 118 120 6-16m
600×300 582×300 12 17 133 137 6-16m
588×300 12 20 147 151 6-16m
594×302 14 23 170 175 6-16m
700×300 692×300 13 20 163 166 6-16m
700×300 13 24 182 185 6-16m
800×300 800×300 14 26 207 210 6-16m
808×302 16 30 241   6-16m
900×300 890×299 15 23 210 213 6-16m
900×300 16 28 240 243 6-16m
912×302 18 34 283 286 6-16m


Application



Structural steel is widely used, mainly used for: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large load-bearing capacity and cross-section are required Large-scale bridges with good stability and large spans; heavy equipment;highways; ship skeletons; mine supports; foundation treatment and embankment





Pictures Show

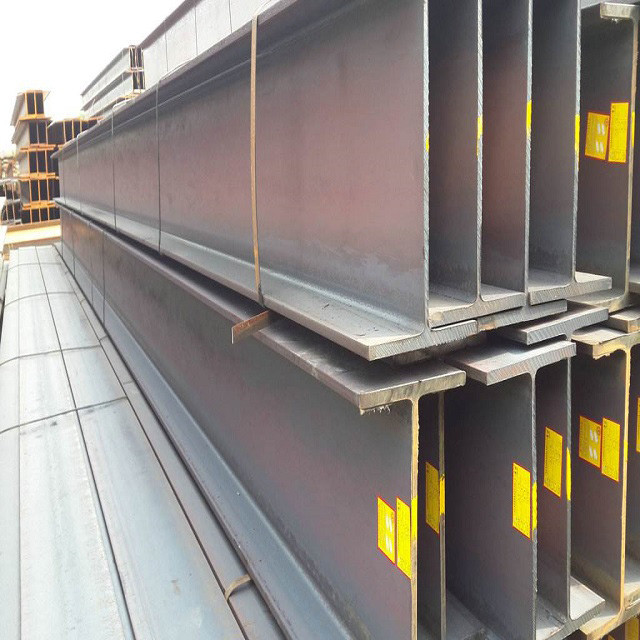

SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled 0

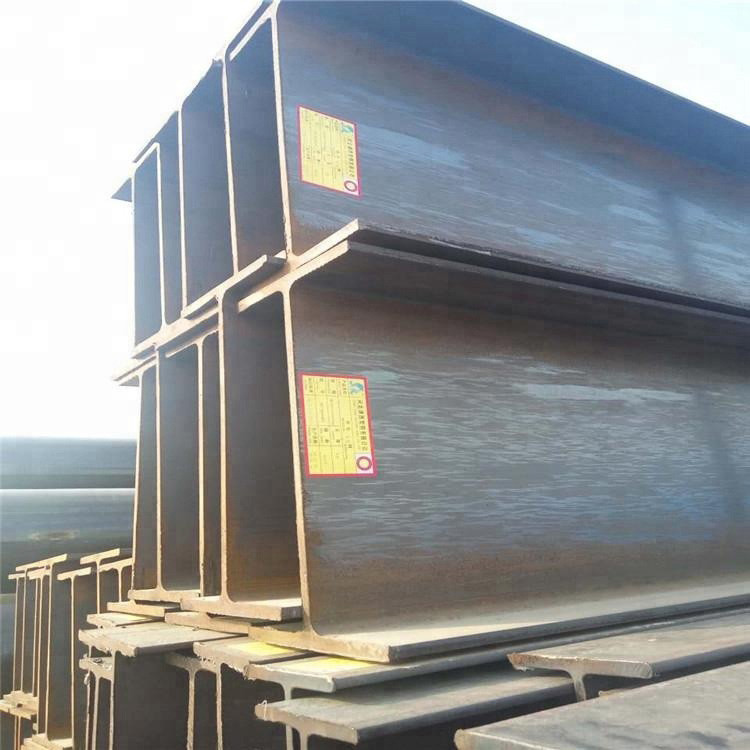

SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled 1

certificates

SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled 2

Delivery:

SM490 Structural Steel Profiles 100mm-900mm Web Width Hot Rolled 3

FAQ

1. Do you have your own factory?

Yes, we do. We have our own factory, and we can provide stable stock with competitive price and good quality.

2. Which payment can you accept?

1).100% irrevocable L/C at sight.

2).30% T/T prepaid and the balance against the copy of B/L.

3).30% T/T prepaid and the balance against L/C.

3. How about the delivery time?

10-15 days after receiving the deposit.
