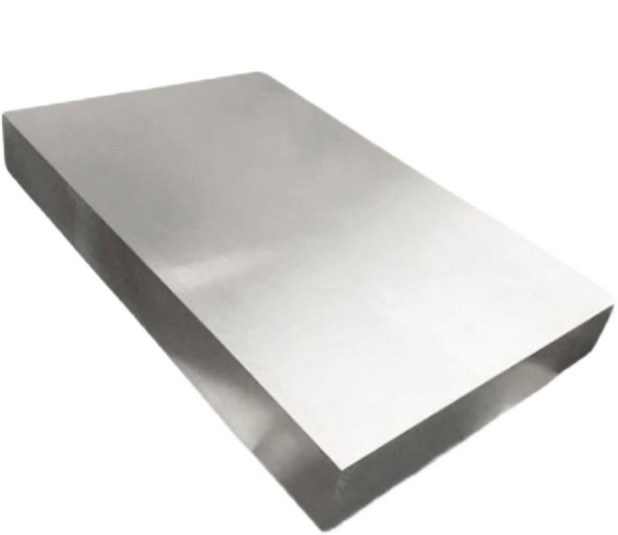

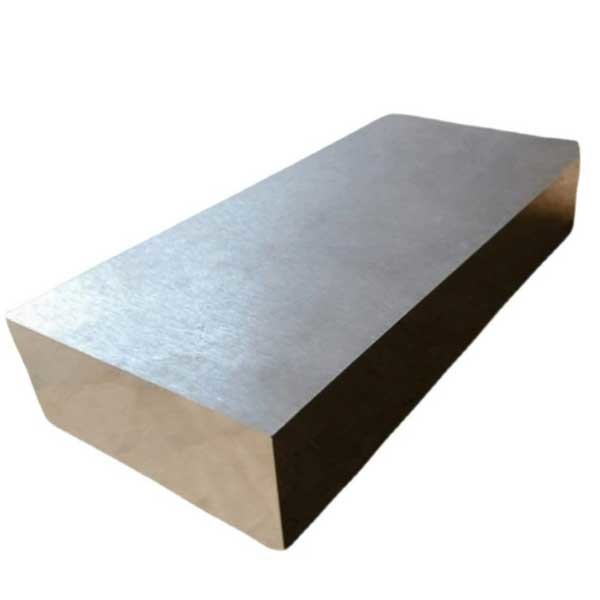

DIN1.233 718H Tool Steel Sheet Metal P20 Plastic Cold Rolled Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Name | P20 Plastic Mold Steel Plate DIN1.233 /718/718H Tool Steel | Technique | Hot Rolled |
|---|---|---|---|
| Transport Package | Standard/Customized | Hardness | HRC33-37 |
| Technology | Cold Rolled.hot Rolled | Wall Thickness(mm) | 0.2-400mm |
| Highlight | 718H Tool Steel Sheet Metal,Tool Steel Sheet Metal P20 Plastic,P20 Plastic Cold Rolled Steel Plate |
||
Product Description
P20 Plastic Mold Steel Plate DIN1.233 /718/718H Tool Steel
Description
(5) The advantage of repair welding is that the preheating and post-heating temperatures are lower than those of SKD11, so repair welding is easier. Features: General cold work dies steel, high hardness, and high toughness.
(4) Advantages in surface hardening treatment, the surface hardness after surface hardening treatment is higher than that of SKD11, so the performance of the mold can be improved.
(3) The advantage of online cutting processing is that high-temperature tempering can reduce residual stress and eliminate residual austenitic iron, which can prevent wire cutting from cracking and deformation.
(2) The advantage of heat treatment is that the quench hardening energy is higher than that of SKD11, so it can improve the defect of insufficient hardness during vacuum heat treatment.
(1) Machinability, good grind ability. Machinability and abrasiveness are better than SKD11, so the service life of processing tools is longer and the number of processing man-hours is less.
Item | ASTM Steel Mold Steel Plate Tool Steel Hot Die Steel H13 1.2344 | ||
3Cr2Mo/1.2311/1.2312/P20/1.2738/718H/P20+Ni/1.2316/1.2083/4Cr13 /sus420j2/420/S136/NAK80H13/1.2344/SKD61/5CrNiMo/SKT4/1.2714 Cr12/D3/1.2080/Cr12MoV/D2/1.2379/SKD11/9CrWMn/O1/1.2510/SKS3 /DC53 40Cr/5140/35CrMo/42CrMo/4140/1.7225 C45/C50/1045/1050/S50C/S45C/T10/T8 M2/1.338/SKH51 | |||
Surface | clean/black rough/milled/grinding painting etc. | ||
Normal Size | Width: 12mm-650mm Length: 1-12m | ||
Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required | ||
Quality test | we offer MTC( mill test certificate) | ||
3.Similar steel grade & equivalent steel materials:
| USA | Japanese | Gemany | British | France | heat treatment | Chinese |
| ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
| AISI D3 | SKD1 | X210Cr12 | ------ | Cr12 | ||
4 we have sold mold steel 1.2080 A2 1.2379 86CRMOV7 1.2344 flat bar and forged round bar to germany,singapore,pakistan and so on,ucan find some pictures below
Chemical Composition
| Grades | C | Si | Mn | P | S | Mo | V | Cr |
| 1.2344 | 0.38-0.42 | 0.8-1.2 | 0.3-0.5 | ≤0.015 | ≤0.002 | 1.2-1.5 | 0.9-1.1 | 4.8-5.5 |
| H13/SKD61/ 4Cr5MoSiV1 | 0.32-0.45 | 0.8-1.2 | 0.2-0.5 | ≤0.03 | ≤0.03 | 1.1-1.75 | 0.8-1.2 | 4.75-5.5 |
Heat Treatment
| Quenching ºC | Tempering ºC/HRC | ||||||||
| 1020-1050 | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 |
| Air/oil/salt bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 |
Stock Size
| Shape | Diameter | Thickness | Width | |
| Flat Bar | / | 16-260mm | 205-610mm | |
| Round Bar | 16-200mm | / | / | |
| Die Block | Die Block | / | 100-500mm | 600-1000mm |
| Round Bar | 150-450 | / | / | |
Why Choose Us
1) Smooth production ability(1000tons/month).
2) Approved by ISO9001,CE,SGS every year.
3) Competitive price and quality from our own factory.
4) Flexible payment with T/T, L/C, Trade Assurance.
5) Best service with 24 hours reply.
6) Quick delivery and standard exporting package.
Product Display
Factory Manufacture Process:
Delivery
