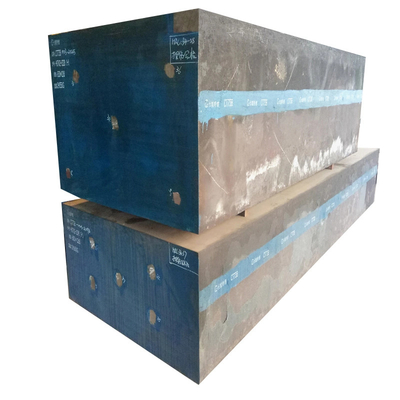

JIS S45C Mold Steel Plate 100mm-12000mm Carbon Steel Plate For Die Casting

JIS S45C Carbon Steel Mold Steel Plate For Die Casting Mold Base

Descriptiion

What is S45C steel?

AISI 1045 is a medium tensile low hardenability carbon steel generally supplied in the cold drawn or turned and polished condition, with a typical tensile strength range 600 – 950 Mpa and Brinell hardness range 179 – 280. in either condition.

Characterised by good strength and impact properties, with good machinability and reasonable weldability in the as supplied condition.

S45C has a low through hardening capability with sections up to around 60mm only generally recommended as suitable for through hardening and tempering. It can however be successfully flame or induction hardened in the as supplied condition resulting in surface hardnesses of up to Rc 54 – Rc 60 depending upon quenching medium employed, type of set up, section size etc. Core strengths will remain as supplied.

It does not however respond satisfactorily to nitriding due to a lack of suitable alloying elements.

S45C Hardness

Brinell Hardness (HB) 160-220 (Annealed)

JIS S45C Equivalents

• DIN Equivalents for JIS S45C

C45, CK45, CF45, CQ45

• ASTM Equivalents for JIS S45C

ASTM A29 , ASTM A510 , ASTM A519 , ASTM A576 , ASTM A682

• SAE Equivalents for JIS S45C

SAE J403 , SAE J412 , SAE J414

• AISI Equivalents for JIS S45C

AISI 1045, AISI 1046

• EN Equivalents for JIS S45C

EN-8 / BS 970 080M40

S45C Chemical Composition

Carbon (C) 0.42% – 0.48%

Silicon (Si) 0.15% – 0.35%

Manganese (Mn) 0.6% – 0.9%

Phosphorus (P) 0.030% Max

Sulphur (S) 0.035% Max

Heat Treatment

The following temperature ranges are applicable for the respective heat treatment operations.
Full Annealing 800 - 850°C
Normalising 840 – 880°C
Hardening 820 – 860°C
Quenching medium Water or Oil
Tempering 550 – 660°C

Melting Point

Melting point of S45C is ~1520 Degree Celsius

Why Choose Us

Why Choose Us
1) Best service with 24 hours reply.
2) Approved by ISO9001,CE,SGS every year.
3) Competitive price andquality from our own factory.
4) Flexible payment with T/T,L/C,Trade Assurance.
5) Smooth production ability(1000tons/month).
6) Quick delivery and standard exporting package.

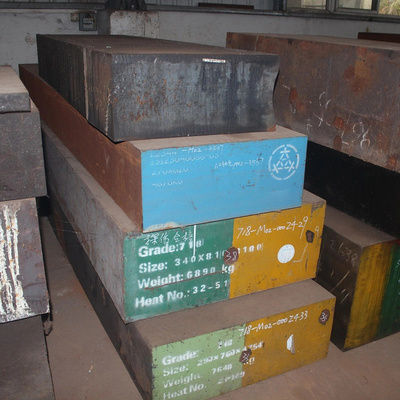

Product Display

Factory Manufacture Process:

Delivery

FAQ

Q: Are you a manufacturer or merely a trader?
A: We are trading company act as exporting Steel Products with our own factory,
we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.

Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.

Q: What is the payment term?
A:100% T/T or 30%T/T deposite prepaid, 70%Balance L/C

Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
