AiSi DIN Abrasion Resistant Steel Plate Anti Wear 14mm For Metallurgy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name 1 | Wear Resistant Steel | Grade | Nm500 |
|---|---|---|---|
| Standard | AiSi, ASTM, Bs, DIN, GB, JIS | Surface Treatment | Coated |
| Product Name | 14mm NM500 Wear Resistant Steel Plate | Keyword | Wear Resistant Plate |
| Highlight | AiSi DIN Abrasion Resistant Steel Plate,Abrasion Resistant Steel Plate 14mm,AiSi DIN Anti Wear Plate |
||
Product Description
Product Name: 14mm NM500 Wear Resistant Steel Plate
Wear-resistant steel plate has high wear resistance and good impact performance. It can be cut, bent and welded. It can be connected with other structures by welding, plug welding and bolt connection. It is time-saving and convenient in the process of maintenance. It is widely used in metallurgy, coal, cement, electric power, glass, mining, building materials, brick and tile and other industries.
400 is a wear-resistant steel plate with a Brinell hardness of 400HB, which has good cold bendability and is mainly used in anti-wear conditions. 400 has very good weldability.
400 wear-resistant steel application: crusher, sieve plate, feeder, feeding funnel, elevator, blade plate, conveyor, bucket, cutter plate, gear, dump truck, scraper, industrial Trucks, rail wagons, bulldozers, excavators. Slurry pipes, screw conveyors, presses, etc.
| Standard | Grade | C | Mn | Si | Cr | Mo | Yield strength min | Tensile strength min | Elongation% |
| GB/Nm360 | Nm360 | ≤0.25 | ≤1.30 | ≤0.70 | ≤1.4 | ≤0.50 | 1000MPa | 1100MPa | 50 |
| AISI | GB | JIS | DIN | KS | BSEN |
| Nm360 | Nm360 | -EH360 | DILLIDUR 400V | 400 | creusabro 4000 |
Grades of 14mm NM500 Wear Resistant Steel Plate
Specification of 14mm NM500 Wear Resistant Steel Plate
| Mechanical Properties | ||||||
| Material | Thickness(mm) | Strength of extension | Elongation | Impact energy(vertical) | BH(Brinell Hardness) | |
| ℃ | Akv/J | |||||
| NM300 | 6-80 | ≥1000 | ≥14 | -20 | ≥24 | 270-300 |
| NM360 | 6-80 | ≥1100 | ≥12 | -20 | ≥24 | 330-390 |
| NM400 | 6-80 | ≥1200 | ≥10 | -20 | ≥24 | 370-430 |
| NM450 | 6-80 | ≥1250 | ≥7 | -20 | ≥24 | 420-480 |
| NM500 | 6-70 | / | / | / | / | ≥470 |
| NM550 | 6-70 | / | / | / | / | ≥530 |
| wear resistant450 | 5-50 | ≥1400 | 10 | -40 | ≥35 | 425~475 |
| wear resistant500 | 5-50 | / | / | -40 | ≥30 | 450~540 |
| wear resistant550 | 5-50 | / | / | -40 | ≥24 | 450~540 |

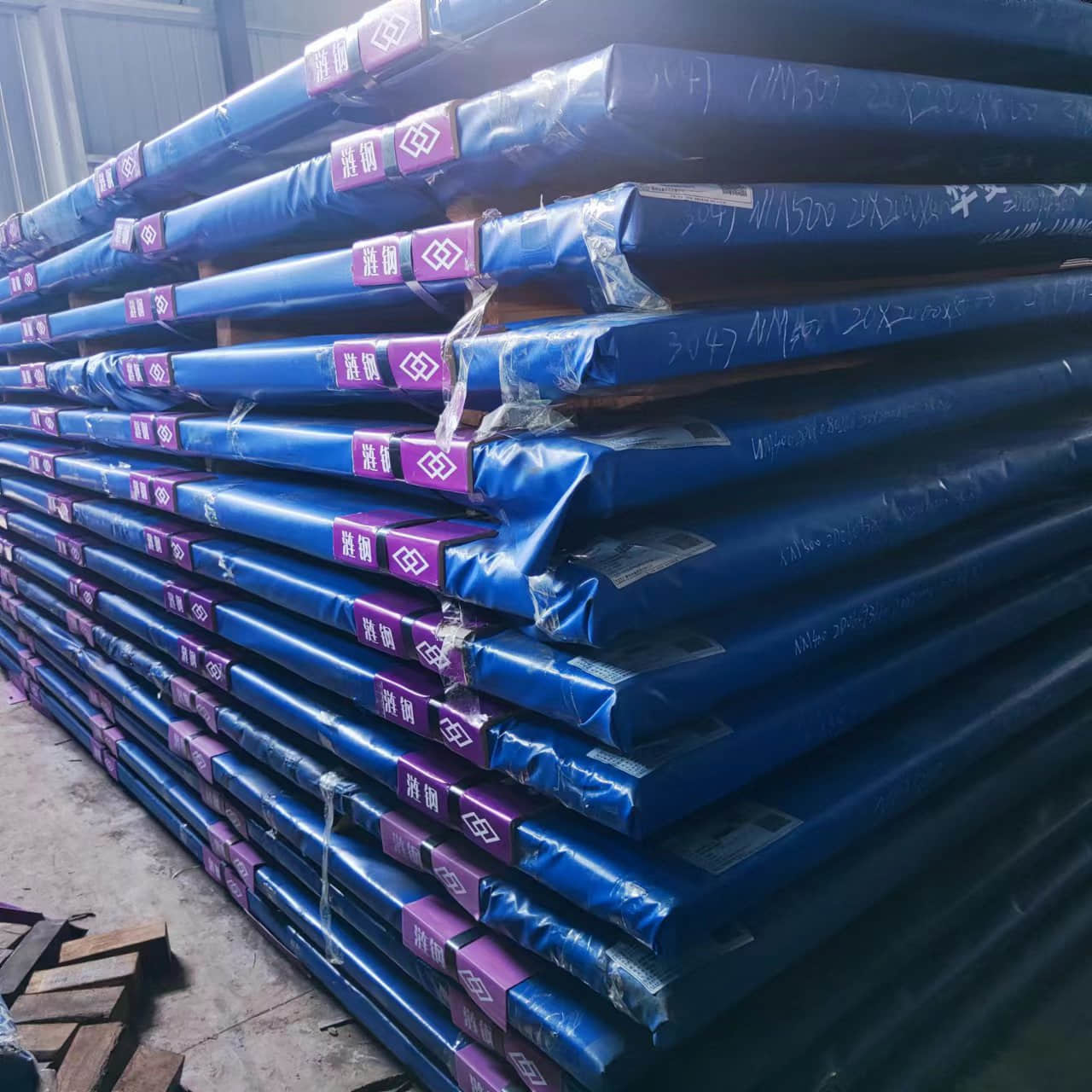

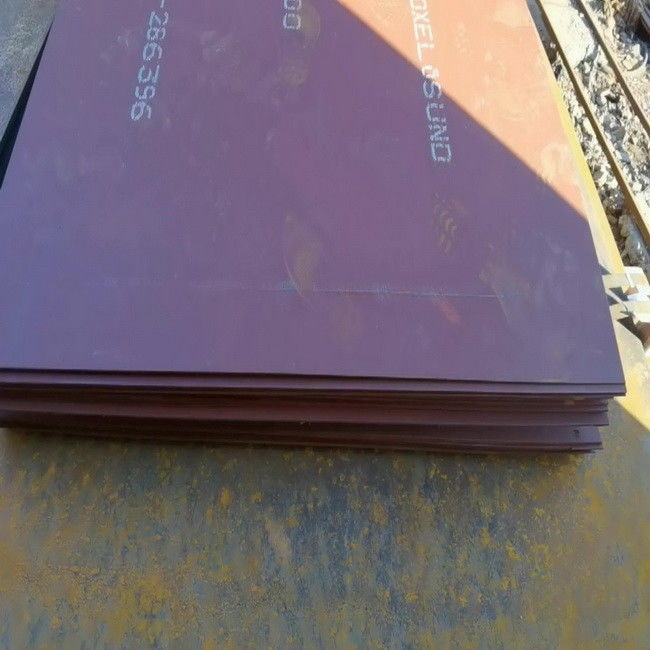

Pictures of 14mm NM500 Wear Resistant Steel Plate
