10mm Wear Resistant Steel Plate NM500
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name 3 | Wear Resistant Steel | Grade | Nm500 |
|---|---|---|---|
| Product Name | 10mm NM500 Wear Resistant Steel Plate | Technique | Cold Rolled; Hot Rolled |
| Keyword | Wear Resistant Plate | Delivery Time | 16 Working Days |
| High Light | 10mm Wear Resistant Steel Plate,Wear Resistant Steel Plate NM500,NM500 Cold Rolled Steel Sheet |
||
Product Description
Product Name: 10mm NM500 Wear Resistant Steel Plate
What is a 10mm NM500 Wear Resistant Steel Plate?
AR500 steel is wear-resistant steel, also known as armored ballistic steel, used in applications of high-wear products such as mining or material handling as well as military equipment. The steel has been heating treated and shown hardening, improved forming, and welding properties. Often used in bulletproof vests.
Wear-resistant steel plate grade for high wear applications such as mining equipment and concrete treatment.
Surface hardness can range from 470 to 540 BNH.
It has excellent resistance to sliding wear, friction wear and heavy wear.
Can withstand high impact forces even at extremely low temperatures.
The AR500 is not certified for ballistic use, although it is often required to provide a munition target surface. Browse Leeco Steel's military and bulletproof Steel labels to obtain military-certified bulletproof Steel plates.
Product Description
| Standard | Grade | C | Mn | Si | Cr | Mo | Yield strength min | Tensile strength min | Elongation% |
| GB/Nm360 | Nm500 | ≤0.25 | ≤1.30 | ≤0.70 | ≤1.4 | ≤0.50 | 1000MPa | 1100MPa | 50 |
| AISI | GB | JIS | DIN | KS | BSEN |
| Nm360 | Nm360 | JFE-EH360 | DILLIDUR 400V | 400 | creusabro 4000 |
Specifications:
| Product Name | KS Ar400 Ar500 Wear Resistance Steel Plate 500 Hot Rolled |
| Edge | Mill Edge / Slit Edge |
| Width | 200cm or as required |
| Thickness | 0.3cm-10cm or as required |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled |
| Thickness tolerance | ±0.1mm |
| Material | Ar400 Ar500 Nm500 |
| MOQ | 3 ton |
| Shipment time | Within 15-20 workdays after receiving deposit |
| Export packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
Grades of 10mm NM500 Wear Resistant Steel Plate
| Product Name | 10mm NM500 Wear Resistant Steel Plate |
| Length | 2m-12m or as required |
| Width | 0.6m-3m or as required |
| Thickness | 3-300mm |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled |
| Surface Treatment | Clean, blasting and painting according to customer requirement |
| Thickness tolerance | ±0.1mm |
| Material | NM360,NM400,NM450,NM500,NR360,NR400 AR400,AR450,AR500,AR550 wear resistant400,wear resistant450,wear resistant500,wear resistant600 XAR400,XAR450,XAR500,XAR600 QUARD400,QUARD450,QUARD500 FORA400,FORA500 RAEX400,RAEX450,RAEX500 JFE-EH360, JFE-EH400,JFE-EH500 |
| Application | It is widely used in mining machinery, environmental protection machinery, cement machinery, engineering machinery, etc due to it is high wear resistance. |
| Shipment time | Within 15-20 workdays after receiving the deposit or L/C |
| Export packing | Waterproof paper and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required. |
Specification of 10mm NM500 Wear Resistant Steel Plate
| Mechanical Properties | ||||||
| Material | Thickness(mm) | Strength of extension | Elongation | Impact energy(vertical) | BH(Brinell Hardness) | |
| ℃ | Akv/J | |||||
| NM300 | 6-80 | ≥1000 | ≥14 | -20 | ≥24 | 270-300 |
| NM360 | 6-80 | ≥1100 | ≥12 | -20 | ≥24 | 330-390 |
| NM400 | 6-80 | ≥1200 | ≥10 | -20 | ≥24 | 370-430 |
| NM450 | 6-80 | ≥1250 | ≥7 | -20 | ≥24 | 420-480 |
| NM500 | 6-70 | / | / | / | / | ≥470 |
| NM550 | 6-70 | / | / | / | / | ≥530 |
| wear resistant450 | 5-50 | ≥1400 | 10 | -40 | ≥35 | 425~475 |
| wear resistant500 | 5-50 | / | / | -40 | ≥30 | 450~540 |
| wear resistant550 | 5-50 | / | / | -40 | ≥24 | 450~540 |

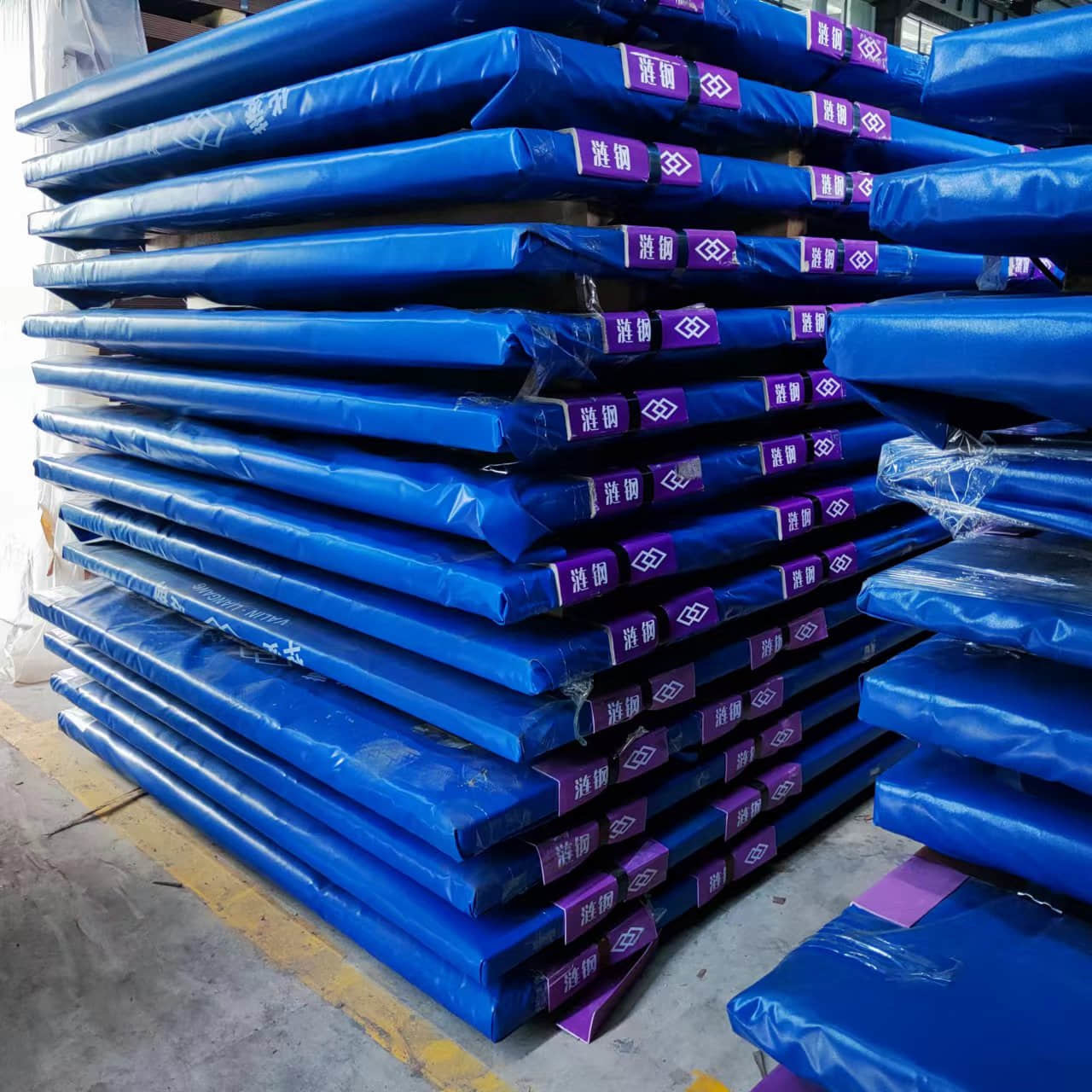

Pictures of 10mm NM500 Wear Resistant Steel Plate
Quality first
Our Certificates
About Us
FAQ
Q1. Where is your factory?
A1: Our company’s processing center is located in Zhengzhou, Henan, China.
Which is well equipped with laser cutting machines, mirror polishing machines, and related machines.
We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products?
A2: Our main products are 1mm thick stainless steel shim plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company?
A4: We have many professionals, technical personnel, more competitive prices, and the best after-sales service than other stainless steel companies.
Q5. How many countries have you already exported to?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide a sample?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7days.
