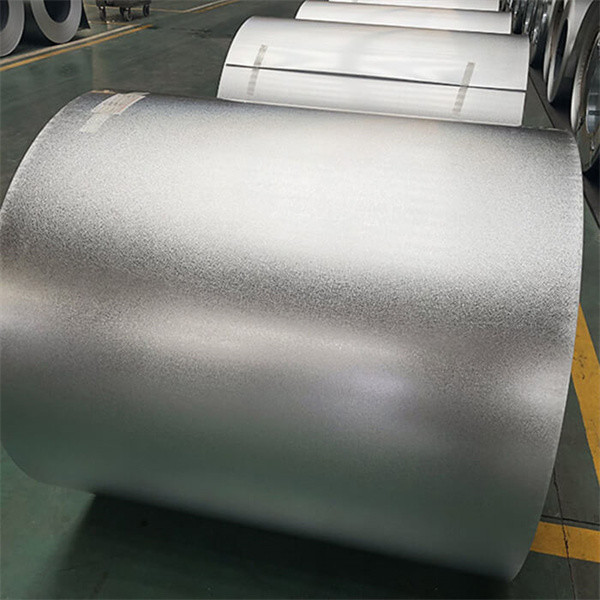

Zinc Coated Hot Dipped Galvanized Coil 0.2-3mm Thickness 1250 1500mm Width
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | DC01/DC02/DX51D/SPCC/SGCC,etc | Standard | ASTM,EN,DIN,JIS |
|---|---|---|---|
| Thickness | 0.2-3mm,or As Required | Width | 600-2500mm,or As Required |
| Technology | Cold Rolled | Surface | Regular/mini/big/zero Spangle,skin Pass, Chromated, Unoiled, Dry |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling | Packing | Standard Export Packing Or As Customer's Requirement |
| Highlight | Zinc Coated hot dipped galvanized coil,Hot Dipped Galvanized Coil 0.2-3mm,1500mm Width galvanized coil |
||
Product Description
Galvanized Steel Coils Description
Hot Dipped Zinc Coated Galvanized Steel Coils is a type of material treated by hot-dip galvanizing, immersing the cold rolled steel in molten zinc to form a layer of pure zinc or zinc-iron alloy coating on its surface, to provide good corrosion protection.
The Zinc coating on the substrate acts as a barrier between the atmosphere and the surface of the steel, effectively preventing moisture and oxygen from contacting the steel sheet, thereby providing a continuous anti-corrosion barrier.
Galvanized Steel Coils Specifications
| Thickness | 0.13-3.0mm |
| Width |
Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm |
| Coil weight | 3-8tons,or as required |
| Zn coating |
0.13-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2; 1.5-6.0 mm is 30-275 g/m2 |
| Coil ID |
600-1500 mm, Normal width is 914/1000/1219/1250/1500 mm |
| Steel grade | DX51D,DX52D,DC01,DC02,SGHC |
| Surface | regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry |
| Packaging | seaworthy export standard package, or according to the customers’requirement |
| MOQ | 1 ton,We can accept sample order. |
| Shipment Time | Within 15-20 workdays after receiving deposit or L/C |
Galvanized steel sheet is cut from galvanized steel coil, the base material is cold rolled steel, it has good processing performance. The galvanized sheet coated with a zinc layer,features a smooth, flat,uniform thickness, strong adhesion, no peeling during processing, good corrosion resistance,and excellent adhesion to paint film. It can withstand high temperatures up to 315 ℃ and has excellent surface conductivity. The surface is smooth and clean, the size is accurate, the board surface is straight, the spangles are even and beautiful.
GI Coil Surface Structure
Galvanized Steel Features
Hot-dip galvanized steel coils have high adhesion,corrosion resistance, and precisely controlled coating thickness. In addition,Galvanized steel is easy to process and weld, and also has a long service life when exposed to the atmosphere.
- Excellent anti-corrosion: Zinc has great anti-oxidation. The zinc layer on the surface of hot-dip galvanized steel coils can prevent the steel from direct contact with oxygen and moisture in the external environment,extending the service life.
- Strong durability: Not only will the zinc coating play the role of a physical barrier but also protects the steel underneath through electrochemical reactions (sacrificial anode action) when the coating is scratched or damaged.
- Good workability: Hot-dip galvanized steel coils maintain the processability of steel, and the zinc layer is thin and uniform, which does not affect the performance of steel during processing and forming.
GI Steel Processing Service
We offer value-added services including polishing, annealing, heat treatment, and welding for GI steel.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as requirement
GI Coil Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Galvanized Steel Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide samples ? is it free or extra ?
A: The sample could provide for customer free,but the freight will be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by HNJBL piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 6 hours,and the Wechat and WhatsApp will be online 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out the best price soon.
