S690QL High Strength Steel Sheet With Good Toughness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | S690QL,960QL,S890QL,etc | Standard | GB,ASTM,AISI,BS,JIS,DIN,EN |
|---|---|---|---|
| Thickness | 2-300mm,or As Required | Length | 1000-12000mm Or As You Request |
| Technology | Hot Rolled, Cold Rolled, Cold Drawn,ect. | Shape | Steel Plate / Sheet |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling | Packing | Standard Export Packing Or As Customer's Requirement |
| Highlight | S690QL Steel Sheet,Good Toughness high strength steel sheet,S690QL High Strength Steel Sheet |
||
Product Description
S690QL Plate Description
690QL steel plate is a quenched and tempered high-strength structural steel plate produced in accordance with European standard EN 10025-6,with a minimum yield strength of 690MPa. has high strength and good toughness,excellent tensile strength, elongation and low-temperature impact properties after quenching (rapid cooling) and tempering (slow cooling after heating) heat treatment processes.
Grade designation of S690QL
S = Structural Steel
690 = minimum yield strength (MPa)
Q = Quenching & Tempering
L = Low notch toughness testing temperature
High-strength low-alloy steel (HSLA) is a type of alloy steel that provides better mechanical properties or greater resistance to corrosion than carbon steel. HSLA steels vary from other steels in that they are not made to meet a specific chemical composition but rather specific mechanical properties.
HSLA Steel Sheet Features
- Reduced weight of products and structures while retaining strength
- Increased payload capacity
- Increased reach capacity
- Reduced fuel usage
- Resistance to wear and corrosion
- Easy weldability and laser cutting
High Strength Plates Specifications
|
Standard |
ASTM,AISI,JIS,GB,DIN,EN |
|
Type |
Low alloy steel (wear resistant), weather resistant steel plate, acid resistant steel plate,high strength steel plate, wear resistant steel plate, general steel |
|
Thickness |
2-300mm,or as required |
|
Width |
100-3000mm,or as required |
|
Tolerance |
±1% |
|
Technique |
Hot rolled,cold rolled |
|
Processing service |
Bending,Welding,Decoiling,Cutting,Punching |
|
Packing |
standard export packing (inside:water proof paper;outside:steel covered with strips and pallets) |
S690QL Steel Yield Strength Min. (Mpa)
|
Thickness (mm) |
3-50mm |
50-100mm |
100-125mm |
125-200mm |
|
S690Q/S690QL/S690QL1 |
690Mpa |
650Mpa |
630Mpa |
630Mpa |
S690QL Plate Tensile Strength and Elongation
|
EN 10025-6 |
Tensile |
Tensile |
Tensile |
Tensile |
Elongation |
|
Grade |
Mpa |
Mpa |
Mpa |
Mpa |
After fracture |
|
Thickness (mm) |
3-50mm |
50-100 |
100-125 |
125-200 |
|
|
S690Q/S690QL/S690QL1 |
770-940 |
760-930 |
710-900 |
710-900 |
≥14% |
We can customize the length, width and thickness according to your needs. If you have any requirements, please contact us in time, we will provide you with the most timely and professional service to help you solve the problem.
HSLA Steel Plate Processing Service
We offer value-added services including polishing, annealing, heat treatment, and welding for HSLA steel sheet.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as requirement

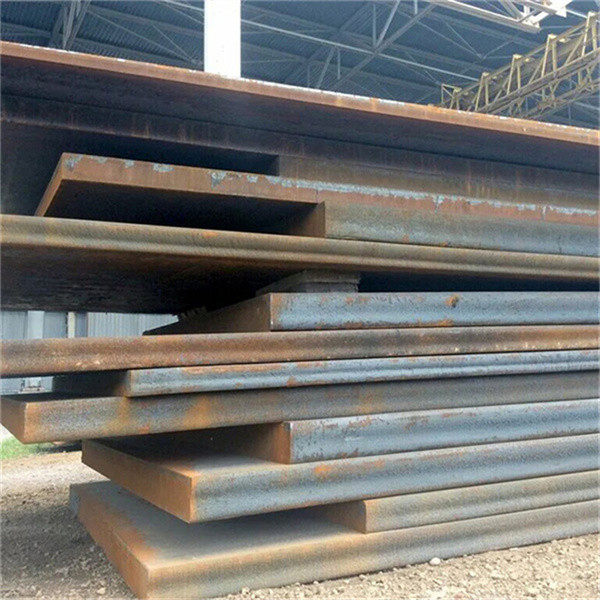

Product Photo
High Strength Sheet Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
High Strength Plates Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide HSLA Steel Plate samples ? is it free or extra ?
A: The sample could provide for customer free,but the freight will be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by HNJBL piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 6 hours,and the Wechat and WhatsApp will be online 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out the best price soon.
