3mm 316 316L Hot Rolled Stainless Steel Sheet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | 200 Series,300 Series,400 Series | Material | 201/ 304/ 304L/ 321/ 316/ 316L/ 309S/ 310S/ 904L, Etc |
|---|---|---|---|
| Thickness | 0.3-30mm | Length | 100-12000mm |
| Technology | Hot Rolled Plate (HR), Cold Rolled Sheet (CR) | Packing | Standard Export Packing Or As Customer's Requirement |
| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, Mirror, Brush, Etching, SATIN (Met With Plastic Coated) Etc. | Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Highlight | 3mm Stainless Steel Sheet 316,Hot Rolled Stainless Steel Sheet 3mm,3mm 316L Stainless Steel Sheet |
||
Product Description
316L Stainless Steel Sheet Description
316 and 316L stainless steel are common types of austenitic stainless steel. Molybdenum is added to the basic 304 steel, making 316 more corrosion-resistant and high-temperature resistant, especially suitable for more demanding environments. "L" stainless steel indicates low carbon content,316L is a low carbon variant of 316 stainless steel. The low carbon content makes 316L less prone to intergranular corrosion, which makes them more stable during high temperature welding.
316 and 316L stainless steel offer high creep strength, stress-to-rupture and tensile strength at high temperatures, as well as excellent corrosion resistance and strength properties.
316/316L stainless steel is ideally suited for applications requiring corrosion resistance superior to Grade 304 and has good elevated temperature strength.The low carbon content decreases carbide precipitation that sensitizes the grain boundaries of welds in these materials. The austenitic structure of 316L provides excellent toughness even at cryogenic temperatures.
 |
|
|
|
Stainless Steel Plate Specifications
|
Product Name |
Stainless steel sheet |
|
Thickness |
0.2~200mm |
|
Standard |
ASTM,JIS,EN,DIN,GB,etc |
|
Material |
310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302,301, 201,202,403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc |
|
Surface |
2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,Brush,etching,etc |
|
Width |
1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
|
Length |
2000mm,2440mm,3000mm,5800mm,6000mm,etc |
|
Package |
Standard export package,suit for all kinds of transport,or as required. |
316 Stainless Steel Chemical Elements
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
316L Stainless Steel Mechanical Properties
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
SS Plate Processing Service
We offer value-added services including polishing, annealing, heat treatment, and welding for stainless steel sheets.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as requirement
SS Steel Plate Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.

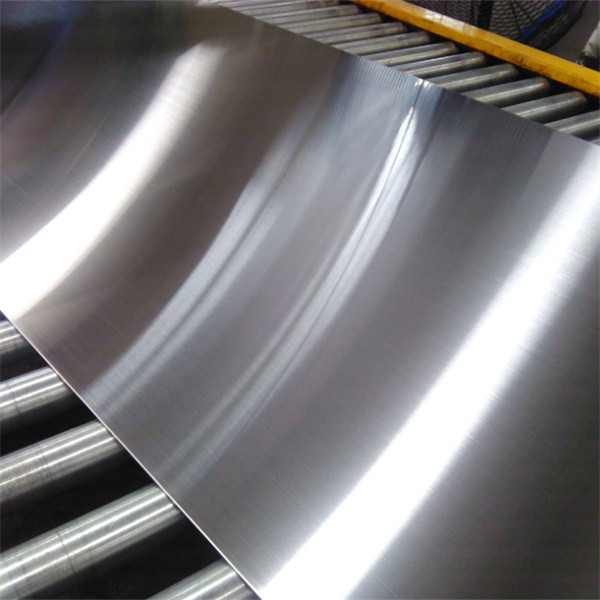

Product Photo
Stainless Steel Plate Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
SS Steel Plate Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
FAQ
Q: Do you provide stainless steel plate samples ? is it free or extra ?
A: The ss plate sample could provide for customer free,but the freight will be covered by customer account.
Q: Do you accept the third-party inspection?
A: Yes,absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by HNJBL piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email will be checked within 8 hours,and,the Wechat and WhatsApp will be online 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out the best price soon.
