SS Plate ASTM A240 2205 Duplex Stainless Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | 200 Series,300 Series,400 Series | Material | 201/ 304/ 304L/ 321/ 316/ 316L/ 309S/ 310S/ 904L, Etc |
|---|---|---|---|
| Thickness | 0.3-30mm | Length | 100-12000mm |
| Technology | Hot Rolled Plate (HR), Cold Rolled Sheet (CR) | Packing | Standard Export Packing Or As Customer's Requirement |
| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, Mirror, Brush, Etching, SATIN (Met With Plastic Coated) Etc. | Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Highlight | 2205 Duplex Stainless Steel Plate,ASTM A240 Duplex Stainless Steel Plate,SS Plate Duplex Stainless Steel Plate |
||
Product Description
2205 Duplex Plate Description
2205 duplex stainless steel is a composite material composed of austenite and ferrite structure, including 22% chromium, 2.5% molybdenum and 4.5% nickel-nitrogen alloy.Its unique dual structure offer high strength, good impact toughness and excellent overall and local corrosion resistance,is the most widely used grade in the duplex family of stainless steels.
Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels.also demonstrates excellent pitting and crevice corrosion resistance,higher yield strength and thermal conductivity. SS Duplex 2205 Plate performs well in applications in temperature ranges between -50℉ and as high as 600 ℉ in the system.
Our stainless steel sheet plate is available in a variety of grades, including 201, 304, 304L, 321, 316, 316L, 309S, 310S, 904L, and more. We can also provide stainless steel sheet in various specification,size and surface finish,we support customization service as your requirement.
 |
|
|
|
Duplex 2205 Features
- High resistance to chloride stress corrosion cracking
- Resistance to chloride pitting and crevice corrosion
- Good general corrosion resistance
Stainless Steel Plate Parameters
|
Product Name |
Stainless Steel Plate Sheet |
|
Thickness |
0.2~200mm |
|
Standard |
ASTM,JIS,EN,DIN,GB,etc |
|
Material |
310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302,301,201,202, 403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc |
|
Surface |
2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,Brush,etching,etc |
|
Width |
1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
|
Length |
2000mm,2440mm,3000mm,5800mm,6000mm,etc |
|
Package |
Standard export package,suit for all kinds of transport,or as required. |
2205 Plate Thickness
| 1/4" | 3/16" | 3/8" | 1 3/8" | 5/16" | 5/8" | 1 1/8" | 1/2" | 7/8" | 3/4" | 1" | 1 1/4" | 1 1/2" |
| 6.3mm | 4.8mm | 9.5mm | 34.9mm | 7.9mm | 15.9mm | 28.6mm | 12.7mm | 22.2mm | 19mm | 25.4mm | 31.8mm | 38.1mm |
| >1 3/4" | 1 5/8" | 2 1/4" | 6" | 2" | 2 3/4" | 4" | 2 1/2" | 3 1/4" | 3" | 3 1/2" | 5" | |
| 44.5mm | 41.3mm | 57.2mm | 152.4mm | 50.8mm | 69.9mm | 101.6mm | 63.5mm | 82.6mm | 76.2mm | 88.9mm | 127mm |
Duplex 2205 Chemical Composition
| Element | Percent by Weight |
| Cr | 22.0 - 23.0% |
| Ni | 4.5 - 6.5% |
| Mn | 2.0% max |
| Si | 1.0% max |
| P | 0.03% max |
| S | 0.02% max |
| C | 0.03% max |
| N | 0.1 - 0.2% |
| Mo | 3.0 - 3.5% |
| Fe | Balance |
Duplex 2205 Equivalent
| Alloy | AFNOR | JIS | UNS | EN | BS | SS | DIN |
| Duplex 2205 | Z 2 CND 22-05-03 | SUS 329J3L | UNS S31803/ UNS S32205 | 1.4462 | 318S13 | 2377 | X 2 CrNiMoN 22 5 3 |
2205 Duplex Stainless Steel Mechanical Properties
| Ultimate Tensile Strength | .2% Yield Strength | Hardness Maximum |
| 95 ksi Minimum | 65 ksi Minimum | 31 Rockwell C |
SS Plate Processing Service
We offer value-added services including polishing, annealing, heat treatment, and welding for stainless steel sheets.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as requirement
SS Steel Plate Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.

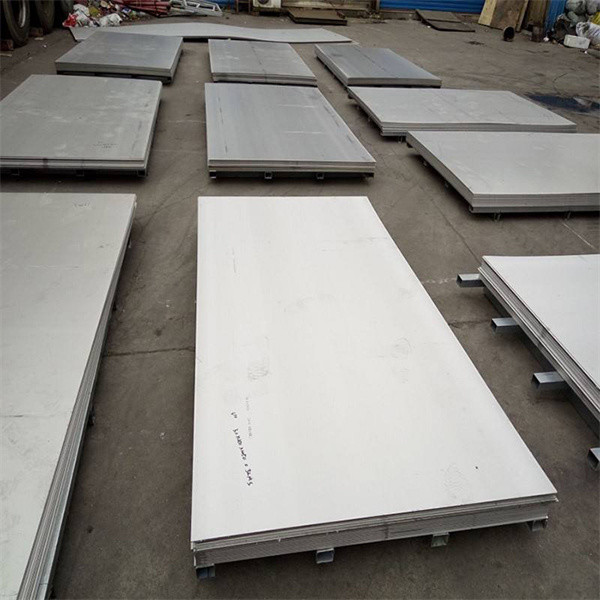

Product Photo
Stainless Steel Plate Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
SS Steel Plate
Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
