316 Stainless Steel Square Pipe SMLS Pipe

  • 316 Stainless Steel Square Pipe SMLS Pipe
  • 316 Stainless Steel Square Pipe SMLS Pipe
Place of Origin China
Brand Name HNJBL
Certification SGS,BV
Model Number 300 series
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard packing
Delivery Time 5-25 working days
Payment Terms L/C, T/T
Supply Ability 100000Ton/Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM/ASME/EN/DIN/JIS,etc Grade 201,304,316,etc
Type Seamless/Welded Length 4000mm,5800mm,6000mm,12000mm,or As Required.
Thickness 0.3-50mm,or As Required Shape Round,square,rectangular,or As Request
Technique Hot Rolled,Cold Rolled End Plain End, Beveled End, Threaded,etc
Surface 2B, No.4, No.1, No.8 Mirror Finish,etc Package Standard Export Seaworthy Package,or As Required.
Highlight

SMLS 316 Stainless Steel Square Pipe

,

316 Stainless Steel Square Pipe

,

SMLS Stainless Steel Square Pipe
Leave a Message
Product Description

SS Pipe Description

316 stainless steel is a chromium, nickel, molybdenum-bearing stainless steel grade,known for its corrosion resistance to pitting and crevice corrosion in chloride environments.The additiion of extra molybdenum content, provides better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments.In addition,316 steel also has high temperature resistance and is suitable for marine and chemical environments.

Stainless steel square pipe is a type of tubing material with a square or rectangular cross-section. The unique geometric shape provides extra strength in structural applications.SS Square tubes are divided into seamless and welded types. Seamless stainless steel square pipe is formed by extruding seamless round tubes.

Stainless steel pipes are in different grades, categories and in shapes.Stainless steel pipes are being manufactured in different shapes,sizes, schedules and diameters as every application requires different size and diameter. HNJBL stainless pipes are available in different grades,as grade 201,304,304L,316,316L,etc.Stainless steel tubing is easy to weld, cut, bend, and be processed into various shapes and sizes according to specific needs to adapt to different application scenarios.

316 Stainless Steel Square Pipe SMLS Pipe 0

Stainless Steel Pipe​ Specification

ItemStainless Steel Pipe/Tube
Grade200 series,300 series,400 series
Standard

ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296

Material304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202,etc
SurfacePolishing,annealing,pickling,bright,etc
Typehot rolled,cold rolled,seamless,welded
stainless steel round pipe/tube
SizeWall thickness1mm-150mm(SCH10-XXS)
Outer diameter1mm-150mm(SCH10-XXS)
stainless steel square pipe/tube
SizeWall thickness1mm-150mm(SCH10-XXS)
Outer diameter4mm*4mm-800mm*800mm
stainless steel rectangular pipe/tube
SizeWall thickness1mm-150mm(SCH10-XXS)
Outer diameter1mm-150mm(SCH10-XXS)
Length4000mm,5800mm,6000mm,12000mm,or as required.
PackingStandard Seaworthy Package,or as requirement
PortTianjin,Qingdao,Shanghai port,any port in China is available


316 Stainless Steel Square Pipe SMLS Pipe 1

316 Stainless Steel Square Pipe SMLS Pipe 2

316 Stainless Steel Square Tube Dimension

1/8" IPS(.405"O. D.)3 1/2" IPS( 4.000"O. D.)
SCH 40, 80SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)4" IPS(4.500"O. D.)
SCH 10, 40, 80SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)5" IPS( 5.563"O. D.)
SCH 10, 40, 80SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXHSCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXHSCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXHSCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXHSCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXHSCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Stainless Steel Square Pipe Thickness

NPS Designator

Outside
Diameter in.

Schedule
10S in.

Schedule
40S in.

Schedule
80S in.

Schedule
160 in.

Schedule
XX in.

1/40.5400.0650.0880.119
3/80.6750.0650.0910.126
1/20.8400.0830.1090.147.188.294
3/41.0500.0830.1130.154.218.308
1.01.3150.1090.1330.179.250.358
1 1/41.6600.1090.1400.191.250.382
1 1/21.9000.1090.1450.200.281.400
22.3750.1090.1540.218.343.436
2 1/22.8750.1200.2030.276.375.552
33.5000.1200.2160.300.438.600
3 1/24.0000.1200.2260.318 .636
44.5000.1200.2370.337.534.674
55.5630.1340.2580.375.625.750
66.6250.1340.2800.432.719.864
88.6250.1480.3220.500.906.875
1010.7500.1650.3650.5001.125
1212.7500.1800.3750.5001.312
1414.0000.1880.3750.5001.406
1616.0000.1880.3750.5001.594

SS Tube Surface Finish

Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
316 Stainless Steel Square Pipe SMLS Pipe 3

Stainless Pipe End Protection:Plastic Caps

Ends:Plain End, Beveled End, Threaded
316 Stainless Steel Square Pipe SMLS Pipe 4

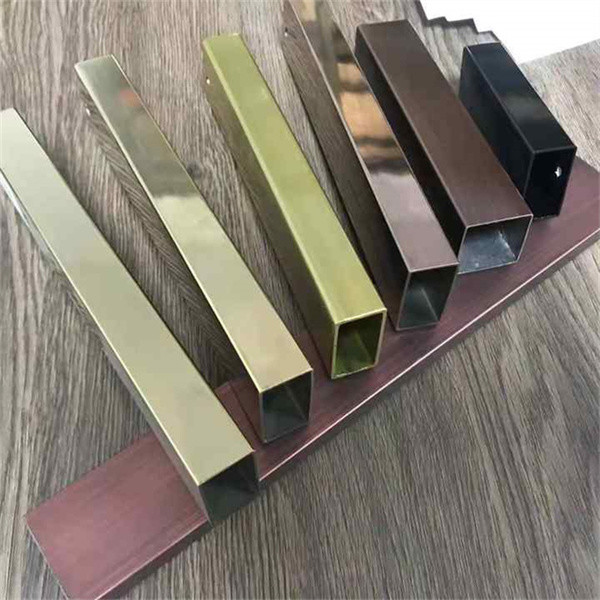

Stainless Tube Photo

316 Stainless Steel Square Pipe SMLS Pipe 5316 Stainless Steel Square Pipe SMLS Pipe 6

Stainless Steel Pipe Packing:

Details:Standard Seaworthy Package,or as requirement

Port:Tianjin,Qingdao,Shanghai port,or as required

Container Size20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM


316 Stainless Steel Square Pipe SMLS Pipe 7

Stainless Steel Pipe FAQ

Q: What about Stainless steel pipe price information?

A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.


Q: What are your company's main stainless steel products?

A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.


Q: What are your payment terms?

A: We can accept the TT,LC or Negotiation


Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.


Q: Can I pay you a visit at your factory?

A: Customers from all around the world are welcome to visit our factory.
