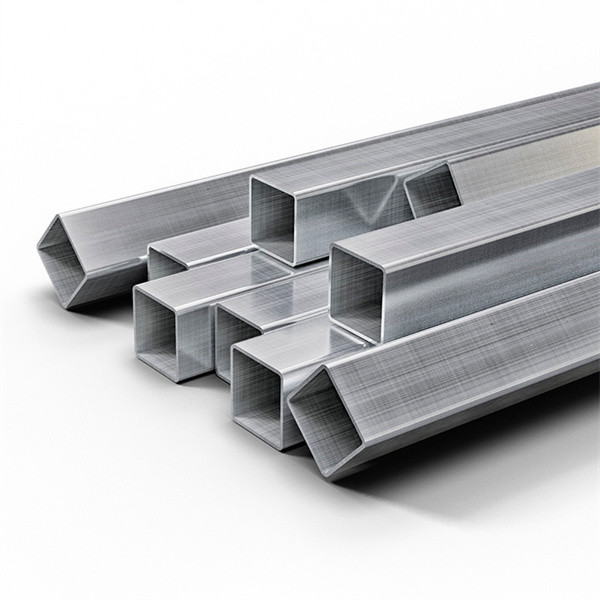

Stainless Steel Square Pipe 304/304L SS Square Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless/Welded | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded,etc |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | 304L Stainless Steel Square Pipe,304/304L SS Square Tube,304 Stainless Steel Square Pipe |
||
Product Description
SS Square Tube Description
Stainless steel square pipe is a type of stainless steel tubing with a square or rectangular cross-section. The unique geometric shape provides extra strength in structural applications.SS Square tubes are divided into seamless and welded types. Seamless stainless steel square pipe is formed by extruding seamless round tubes.
Type 304/304L is the basic “18-8” chromium-nickel stainless steel,the most commonly used stainless steel alloy,with strong formability and excellent weldability,known for its strength and corrosion resistance.
304 Stainless Steel Features
- Fair Machinability
- Good Corrosion Resistance
- Excellent Weldability
- Good Bending/Forming Properties
- No Magnetic
Stainless steel pipes are in different grades, categories and in shapes.Stainless steel pipes are being manufactured in different shapes,sizes, schedules and diameters as every application requires different size and diameter. HNJBL stainless pipes are available in different grades,as grade 201,304,304L,316,316L,etc.Stainless steel tubing is easy to weld, cut, bend, and be processed into various shapes and sizes according to specific needs to adapt to different application scenarios.
Stainless Steel Pipe Specification
| Item | Stainless Steel Pipe/Tube | |
| Grade | 200 series,300 series,400 series | |
| Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
|
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202,etc | |
| Surface | Polishing,annealing,pickling,bright,etc | |
| Type | hot rolled,cold rolled,seamless,welded | |
| stainless steel round pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) | |
| stainless steel square pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm | |
| stainless steel rectangular pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) | |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
| Packing | Standard Seaworthy Package,or as requirement | |
| Port | Tianjin,Qingdao,Shanghai port,any port in China is available | |
Stainless Steel Square Pipe Thickness
| NPS Designator |
Outside Diameter in. |
Schedule 10S in. |
Schedule 40S in. |
Schedule 80S in. |
Schedule 160 in. |
Schedule XX in. |
|---|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.065 | 0.088 | 0.119 | ||
| 3/8 | 0.675 | 0.065 | 0.091 | 0.126 | ||
| 1/2 | 0.840 | 0.083 | 0.109 | 0.147 | .188 | .294 |
| 3/4 | 1.050 | 0.083 | 0.113 | 0.154 | .218 | .308 |
| 1.0 | 1.315 | 0.109 | 0.133 | 0.179 | .250 | .358 |
| 1 1/4 | 1.660 | 0.109 | 0.140 | 0.191 | .250 | .382 |
| 1 1/2 | 1.900 | 0.109 | 0.145 | 0.200 | .281 | .400 |
| 2 | 2.375 | 0.109 | 0.154 | 0.218 | .343 | .436 |
| 2 1/2 | 2.875 | 0.120 | 0.203 | 0.276 | .375 | .552 |
| 3 | 3.500 | 0.120 | 0.216 | 0.300 | .438 | .600 |
| 3 1/2 | 4.000 | 0.120 | 0.226 | 0.318 | .636 | |
| 4 | 4.500 | 0.120 | 0.237 | 0.337 | .534 | .674 |
| 5 | 5.563 | 0.134 | 0.258 | 0.375 | .625 | .750 |
| 6 | 6.625 | 0.134 | 0.280 | 0.432 | .719 | .864 |
| 8 | 8.625 | 0.148 | 0.322 | 0.500 | .906 | .875 |
| 10 | 10.750 | 0.165 | 0.365 | 0.500 | 1.125 | |
| 12 | 12.750 | 0.180 | 0.375 | 0.500 | 1.312 | |
| 14 | 14.000 | 0.188 | 0.375 | 0.500 | 1.406 | |
| 16 | 16.000 | 0.188 | 0.375 | 0.500 | 1.594 |
SS Tube Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Stainless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Tube Photo
Stainless Steel Pipe Packing:
Details:Standard Seaworthy Package,or as requirement
Port:Tianjin,Qingdao,Shanghai port,or as required
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
