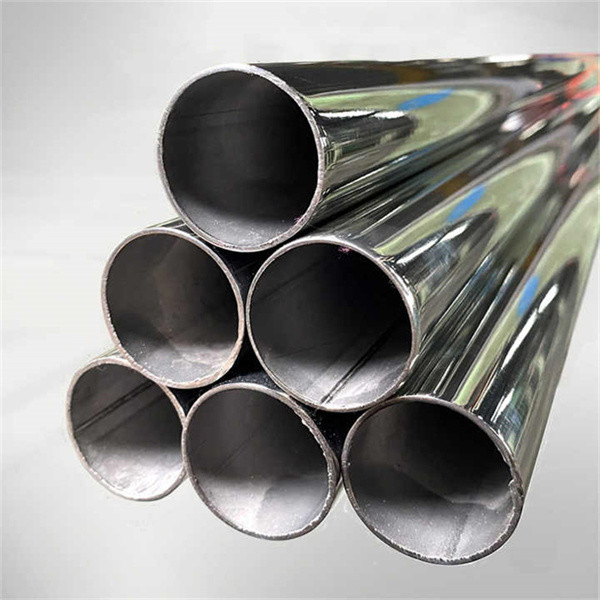

SS304 Stainless Steel Welded Pipe Sch 40s Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless/Welded | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded,etc |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | Sch 40s Stainless Steel Pipe,Sch 40s Stainless Steel Welded Pipe,SS304 Stainless Steel Welded Pipe |
||
Product Description
Stainless Steel Welded Pipe Description
Stainless Steel Welded Pipe can be made up of different stainless steel material,with excellent corrosion resistance, good strength, toughness and high temperature resistance.The Stainless Steel Welded Pipe can be of spiral weld or straight welded.There are different dimensions and standards of these pipes. The Schedule 40 Pipe is one of the medium range schedules that allows medium range pressure containment of the pipes.
Grade 304 stainless steel is the most versatile stainless steel material, known for its strength and corrosion resistance widely used in general environments.Stainless steel pipes are in different grades, categories and in shapes.Stainless steel pipes are being manufactured in different shapes,sizes, schedules and diameters as every application requires different size and diameter. HNJBL stainless steel pipes in different grades,as grade 201,304,304L,316,316L,etc.
Stainless Steel Pipe Specification
| Item | Stainless Steel Pipe/Tube | |
| Grade | 200 series,300 series,400 series | |
| Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
|
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202,etc | |
| Surface | Polishing,annealing,pickling,bright,etc | |
| Type | hot rolled,cold rolled,seamless,welded | |
| stainless steel round pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) | |
| stainless steel square pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm | |
| stainless steel rectangular pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 1mm-150mm(SCH10-XXS) | |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
| Packing | Standard Seaworthy Package,or as requirement | |
| Port | Tianjin,Qingdao,Shanghai port,any port in China is available | |
Stainless Steel Welded Pipe Manufacturing Process
- Electric resistance welded (ERW)
- Laser Welding (LW)
- Continuous Welding (CW)
- Submerged Arc Welding (SAW)
Stainless Steel ERW Tube Schedule Size
|
1/8" IPS(.405"O. D.) |
3 1/2" IPS( 4.000"O. D.) |
|---|---|
|
SCH 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/4" IPS(.540"O. D.) |
4" IPS(4.500"O. D.) |
|
SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
3/8" IPS(.675"O. D.) |
5" IPS( 5.563"O. D.) |
|
SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/2" IPS(.840"O. D.) |
6" IPS(6.625"O. D.) |
|
SCH 5, 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
3/4" IPS(1.050"O. D.) |
8 ” IPS(8.625"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
1" IPS:(1.315′O. D.) |
10" IPS(10.750"O. D.) |
|
SCH 5, 10, 40, 80, 160, XXH |
SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
|
1-1/4" IPS(1.660"O. D.) |
12" IPS(12.750"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
|
1-1/2" IPS(1.900"O. D.) |
14" IPS(14.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH10 (.188), SCH40 (.375) |
|
2" IPS(2.375"O. D.) |
16" IPS(16.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH10(.188), SCH40(.375) |
|
2 1/2" IPS(2.875"O. D.) |
18" IPS (18.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH-40 (.375) |
|
3" IPS( 3.500"O. D.) |
|
|
SCH 5, 10, 40, 80, 160, XXH |
SS Tube Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Stainless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Tube Photo
Stainless Steel Pipe Packing:
Details:Standard Seaworthy Package,or as requirement
Port:Tianjin,Qingdao,Shanghai port,or as required
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
