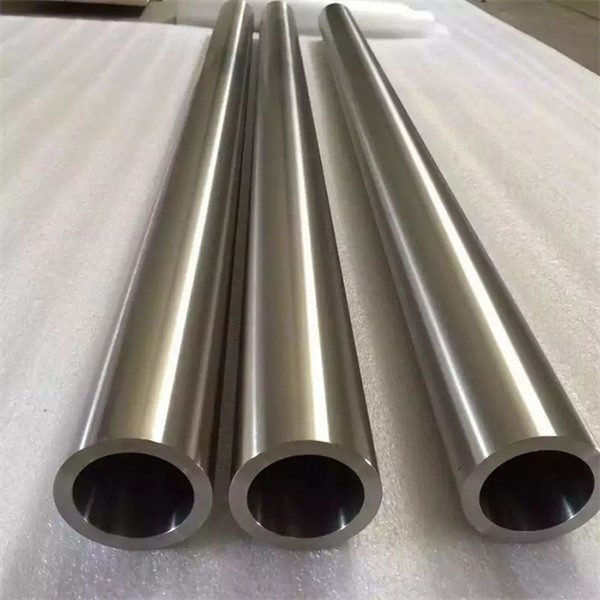

ASTM A312 TP321 Seamless Stainless Steel Tubing Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | ASTM A312 Seamless Pipe,Stainless Steel Tubing Seamless Pipe,TP321 Seamless Pipe |
||
Product Description
321 SS Tubing Description
321 Stainless Steel Tubing is a titanium-stabilized austenitic stainless steel with good intergranular corrosion resistance and high temperature strength.Due to the addition of titanium, 321 stainless steel tube has high mechanical strength and creep resistance at high temperatures, suitable for long-term use in high temperature environments.
321 ss tubing has excellent oxidation resistance and corrosion resistance in high temperature environments, especially in the temperature range of 800-1500°F (427-816°C), which can effectively prevent intergranular corrosion.
SS321 Seamless Pipe Size
Size:6NB -1200NB
OD:1/8"-12" NPS
Thickness:0.6-12.7mm
Length:Single, Double Random & Cut Length
ASTM A312 TP321 Welded Pipe
Size:1/8”-36” NB, 1/4” -36” OD
OD:6.35-114.3 mm
Thickness:0.8-12.7 mm
Length:up to 26 meters,or as requirements
Size can be customized
 |
|
Stainless Steel Pipe Specification
| Grade | ASTM A312 / ASTM SA 312 |
| Specifications | ANSI/ ASME B36.19M, ANSI/ ASME B36.10M |
| Forms | Rectangle, Hex, Honed, Square, Round, Hydraulic Pipe,or as required |
| Technology | 100% X Ray Welded, CDW, ERW, Welded, Seamless, Fabricated |
| End Bevel | Plain, Beveled and Treaded End |
| Delivery & Finished Condition | Bright Annealed, Cold Drawn, Polished, Annealed and Pickled, Pickled and Passivated |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Additional Service | Grooving, Threading, Machining, Ultrasonic Testing, Customer Tagging/ Marking, Destructive, MTR’s Available, Threading, Polishing, Export Documentation, Non Destructive, Beveling, Export Packaging, Cutting, Color Coding, Material testing |
Type 321 Stainless Steel is an austenitic stainless steel. It has many of the same qualities of Type 304, except for a higher level of titanium and carbon.
Type 321 offers outstanding corrosion and oxidation resistance, as well as excellent toughness even down to cryogenic temperatures. 321 Stainless is resistant to atmospheric corrosion, sterilizing solutions, many organic chemicals, and a wide variety of inorganic chemicals.
321 SS Pipe Chemical Composition
| Ni | 9 - 12 |
| Cr | 17 - 19 |
| C | 0.08 max |
| N | 0.10 max |
| Fe | Balance |
| Mn | 2 max |
| Si | 0.75 max |
| S | 0.03 max |
| P | 0.045 max |
| Ti | 5xC min 0.60% max |
321 Stainless Pipe Mechanical Properties
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi - 75000 , MPa - 515 |
| Yield Strength (0.2%Offset) | Psi - 30000 , MPa - 205 |
| Elongation | 35 % |
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
