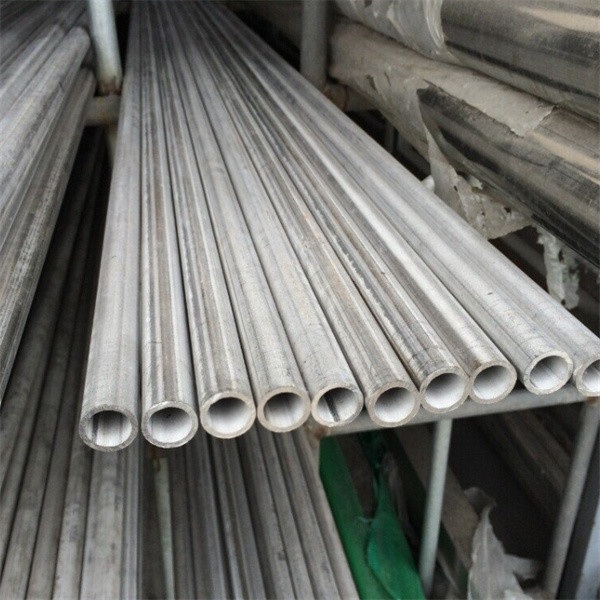

304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing

  • 304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing
  • 304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing
Place of Origin China
Brand Name HNJBL
Certification SGS,BV
Model Number 300 series
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard packing
Delivery Time 5-25 working days
Payment Terms L/C, T/T
Supply Ability 100000Ton/Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM/ASME/EN/DIN/JIS,etc Grade 201,304,316,316L,etc
Type Seamless,Welded Length 4000mm,5800mm,6000mm,12000mm,or As Required.
Thickness 0.3-50mm,or As Required Shape Round,square,rectangular,or As Request
Technique Hot Rolled,Cold Rolled End Plain End, Beveled End, Threaded
Surface 2B, No.4, No.1, No.8 Mirror Finish,etc Package Standard Export Seaworthy Package,or As Required.
Highlight

Schedule 80 Stainless Steel Round Pipe

,

304L Stainless Steel Round Pipe

,

304 Stainless Steel Round Pipe
Leave a Message
Product Description

Stainless Steel Pipe Description

HNJBL produces the 304 Pipes in different types, shapes and sizes. Stainless pipe is built in seamless, welded, and other forms and comes in round, square, and rectangular shapes,etc.



Grade 304/304L is the most versatile and commonly used austenitic stainless steel, also known as "18/8" stainless as the make-up of the steel is 18% chromium and 8% nickel.The high Ni content improve the resistance to moderately aggressive organic acids,at the same time,the high Cr content offer excellent resistance to corrosion in oxidizing environments.



304/304L is non-magnetic in the annealed condition, but can be slightly magnetic as a result of cold working or welding. It can be easily welded and processed.

304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 0 304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 1

304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 2

304 304L Stainless Steel Tube Specification

Specifications ASTM A/ASME SA213/A269/A249
Dimensions ASTM, ASME and API
Size 1/8" NB TO 30" NB IN
Thickness 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Type Seamless / ERW / Welded / Fabricated / LSAW Tubes
Schedule SCH20, SCH30, SCH40, XS, SCH60, STD, SCH80, SCH80, SCH120, SCH140, SCH160, XXS
Form Round, Square, Rectangular, Hydraulic.
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Threaded



304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 3

TP304 Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304 min. - - - - - 18.0 - 8.0 -
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10
304L min. - - - - - 18.0 - 8.0 -
max. 0.030 2.0 0.75 0.045 0.030 20.0 12.0 0.10

304L SS Tube Mechanical Properties

Grade 304 304L
Tensile Strength (MPa) 540 - 750 520 - 700
Proof Stress (MPa) 230 Min 220 Min
Elongation A50 mm 45 Min % 45 Min %



304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 4

SS Seamless Pipe Surface Finish

Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 5


Seamless Pipe End Protection:Plastic Caps

Ends:Plain End, Beveled End, Threaded
304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 6
304 Stainless Steel Tube Size

Wall Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 7

304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 8304 304L Stainless Steel Round Pipe Schedule 80 SS Tubing 9

Stainless Steel Pipe FAQ



Q: What about Stainless steel pipe price information?

A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.


Q: What are your company's main stainless steel products?

A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.


Q: What are your payment terms?

A: We can accept the TT,LC or Negotiation


Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.


Q: Can I pay you a visit at your factory?

A: Customers from all around the world are welcome to visit our factory.
