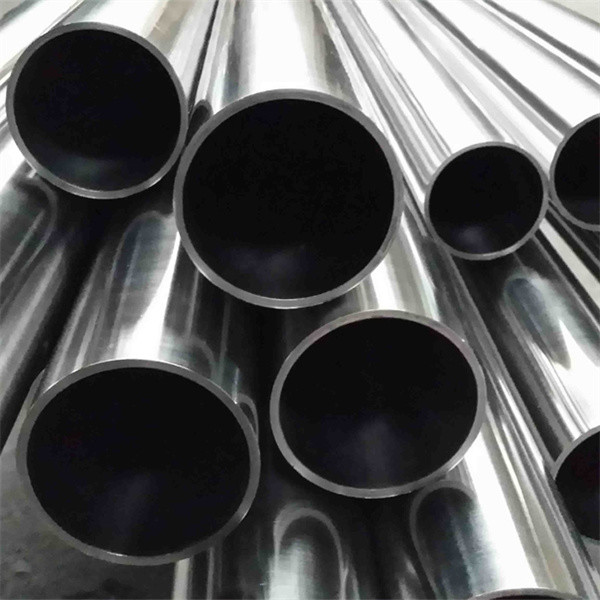

ASTM A312 TP304 Schedule 40 304 Stainless Steel Seamless Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,316L,etc |
|---|---|---|---|
| Type | Seamless,Welded | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | Schedule 40 Seamless Stainless Steel Pipe,ASTM A312 Seamless Stainless Steel Pipe,TP304 Seamless Stainless Steel Pipe |
||
Product Description
304 SS Pipe Description
Grade 304 is the most versatile and commonly used austenitic stainless steel, also known as an "18/8" stainless as the make-up of the steel is 18% chromium and 8% nickel.The high Ni content improve the resistance to moderately aggressive organic acids,at the same time,the high Cr content offer excellent resistance to corrosion in oxidizing environments.In addition, The carbon content is controlled in the range of 0.04-0.10% for increased strength at temperatures above 800°F (427°C). It is an economical and versatile corrosion resistant alloy suitable for a wide range of general purpose applications.
304 steel is non-magnetic in the annealed condition, but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
 |
|
304 Stainless Steel Tube Specification
|
Type: |
Stainless Steel Pipe |
|
|
Outer Diameter |
6-2500mm,(3/8"-100") |
|
|
Thickness |
0.3-150mm,(SCH10-XXS) |
|
|
Length: |
2000mm,2500mm,3000mm,5800mm,6000mm,12000mm,etc |
|
|
Standard: |
ASTM,AISI,JIS,GB,DIN,EN |
|
|
Surface: |
BA,2B,NO.1,NO.4,4K,HL,8K |
|
|
Certification: |
ISO,SGS,BV,also support Third-party inspection |
|
|
Technique: |
Cold Drawn,Seamless,Welded |
|
|
Edge: |
Mill Edge/Slit Edge |
|
TP304 Chemical Composition
| % | 304 |
| C | 0.0 - 0.07 |
| Mn | 0.0 - 2.0 |
| Si | 0.0 - 1.00 |
| P | 0.0 - 0.05 |
| S | 0.0 - 0.03 |
| Cr | 17.50 - 19.50 |
| Ni | 8.00 - 10.50 |
| Fe | Balance |
| N | 0.0-0.11 |
304L SS Tube Mechanical Properties
| Grade | 304 |
| Tensile Strength (MPa) | 540 - 750 |
| Proof Stress (MPa) | 230 Min |
| Elongation A50 mm | 45 Min % |
Schedule 40 304 Stainless Steel Pipe Weight Chart
| 28 | .028" Thick |
| 035 | .035" Thick |
| 039 | .039" Thick |
| 049 | .049" Thick |
| 065 | .065" Thick |
| 083 | .083" Thick |
| 109 | .109" Thick |
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
ASTM A312 TP304 Pipe Schedule
| 1/8" IPS(.405"O. D.) | 3 1/2" IPS( 4.000"O. D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4" IPS(.540"O. D.) | 4" IPS(4.500"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8" IPS(.675"O. D.) | 5" IPS( 5.563"O. D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2" IPS(.840"O. D.) | 6" IPS(6.625"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4" IPS(1.050"O. D.) | 8 ” IPS(8.625"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1" IPS:(1.315′O. D.) | 10" IPS(10.750"O. D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4" IPS(1.660"O. D.) | 12" IPS(12.750"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2" IPS(1.900"O. D.) | 14" IPS(14.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2" IPS(2.375"O. D.) | 16" IPS(16.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2" IPS(2.875"O. D.) | 18" IPS (18.000"O. D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3" IPS( 3.500"O. D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
