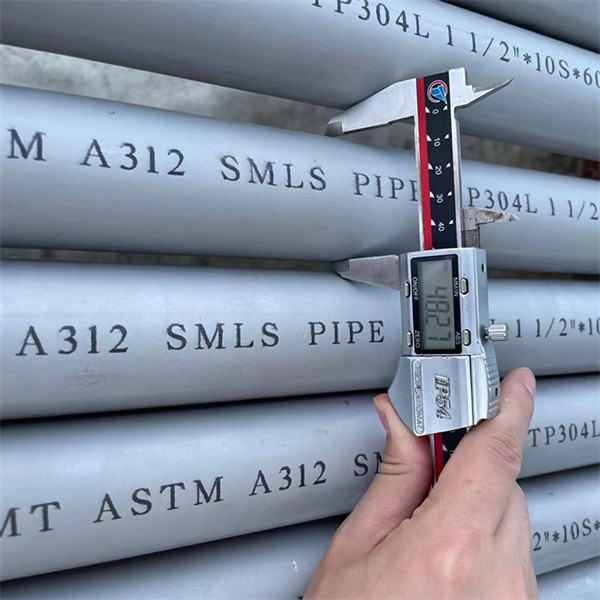

304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe

  • 304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe
  • 304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe
Place of Origin China
Brand Name HNJBL
Certification SGS,BV
Model Number 300 series
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard packing
Delivery Time 5-25 working days
Payment Terms L/C, T/T
Supply Ability 100000Ton/Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM/ASME/EN/DIN/JIS,etc Grade 201,304,316,316L,etc
Type Seamless,Welded Length 4000mm,5800mm,6000mm,12000mm,or As Required.
Thickness 0.3-50mm,or As Required Shape Round,square,rectangular,or As Request
Technique Hot Rolled,Cold Rolled End Plain End, Beveled End, Threaded
Surface 2B, No.4, No.1, No.8 Mirror Finish,etc Package Standard Export Seaworthy Package,or As Required.
Highlight

304 Seamless Stainless Steel Pipe

,

Sch 40 Seamless Stainless Steel Pipe

,

304L Seamless Stainless Steel Pipe
Leave a Message
Product Description

304 SS Pipe Description

Grade 304 is a 300 series austenitic stainless steel alloy which contains 18% chromium and 8% nickel,is the standard “18/8 stainless steel”,has good corrosion resistance,excellent welding and forming properties.



304L is the low-carbon version of 304 stainless steel,the carbon content is usually less than 0.03%.The lower carbon content which minimizes chromium carbide precipitation due to welding and its susceptibility to intergranular corrosion.304L stainless steel has better resistance to intergranular corrosion in the welded state and is suitable for applications that do not require post-weld annealing.



304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 0 304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 1


304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 2

304 304L Stainless Steel Tube Specification

Type:

Stainless Steel Pipe

Outer Diameter

6-2500mm,(3/8"-100")

Thickness

0.3-150mm,(SCH10-XXS)

Length:

2000mm,2500mm,3000mm,5800mm,6000mm,12000mm,etc

Standard:

ASTM,AISI,JIS,GB,DIN,EN

Surface:

BA,2B,NO.1,NO.4,4K,HL,8K

Certification:

ISO,SGS,BV

Technique:

Cold Drawn,Seamless Tube,Welded pipe

Edge:

Mill Edge/Slit Edge

TP304 Chemical Composition

% 304 304L
C 0.0 - 0.07 0.0 - 0.03
Mn 0.0 - 2.0 0.0 - 2.00
Si 0.0 - 1.00 0.0 - 1.00
P 0.0 - 0.05 0.0 - 0.05
S 0.0 - 0.03 0.0 - 0.02
Cr 17.50 - 19.50 17.50 - 19.50
Ni 8.00 - 10.50 8.00 - 10.50
Fe Balance Balance
N 0.0-0.11 0.0-0.11

304L SS Tube Mechanical Properties

Grade 304 304L
Tensile Strength (MPa) 540 - 750 520 - 700
Proof Stress (MPa) 230 Min 220 Min
Elongation A50 mm 45 Min % 45 Min %



304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 3

SS Seamless Pipe Surface Finish

Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 4


Seamless Pipe End Protection:Plastic Caps

Ends:Plain End, Beveled End, Threaded
304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 5
304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 6

ASTM A312 TP304 Pipe Schedule

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH



304 304L Seamless Welded Stainless Steel Tubing Sch 40 Pipe 7

Stainless Steel Pipe FAQ



Q: What about Stainless steel pipe price information?

A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.


Q: What are your company's main stainless steel products?

A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.


Q: What are your payment terms?

A: We can accept the TT,LC or Negotiation


Q: How do you control quality?

A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.


Q: Can I pay you a visit at your factory?

A: Customers from all around the world are welcome to visit our factory.
