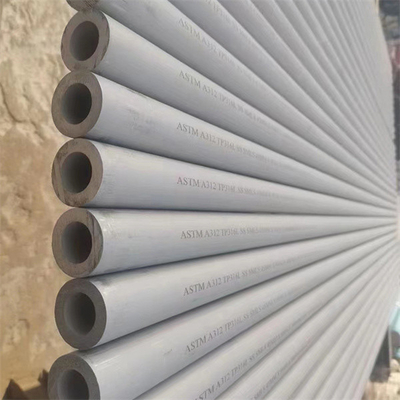

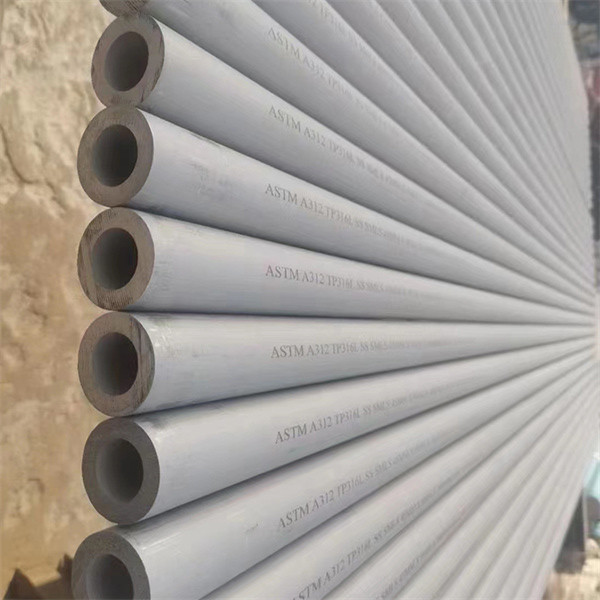

316 316L Seamless Welded Stainless Steel Tubing Sch 40s Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,316L,etc |
|---|---|---|---|
| Type | Seamless,Welded | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | 316 Seamless Stainless Steel Pipe,316L Seamless Stainless Steel Pipe,Sch 40s Seamless Stainless Steel Pipe |
||
Product Description
316 316L Pipe Description
316/316L is molybdenum-bearing austenitic stainless steel,with 2-3% molybdenum content,which improves the 316/316L alloys corrosion resistance to pitting and crevice corrosion in chloride environments.The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments.
316L is a low-carbon version of 316 stainless steel, belongs to the 300 series stainless steel.It does not precipitate due to carbides at the grain boundaries,which means it is not susceptible to sensitization.The 'L' indicates 316L Stainless Steel is a low carbon version of Grade 316,which minimizes carbide precipitation due to welding,thereby avoids the problem of intergranular corrosion.
316L is a molybdenum-containing stainless steel, containing 2%-3% molybdenum,properties is better than 310 and 304 stainless steel. Under high temperature conditions, when the concentration of sulfuric acid is lower than 15% or higher than 85%, 316L stainless steel has a wide range of applications. 316L stainless steel also has good resistance to chloride corrosion,widely used in marine environments.
 |
|
316 Stainless Pipe Specification
| Specifications | ASTM A/ASME SA213/A249/A269 |
| Dimensions | ASTM, ASME and API |
| Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, XS, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Thickness | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Form | Round, Rectangular, Square, Hydraulic Etc |
| Type | Seamless / Fabricated / ERW / Welded / LSAW Tubing |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
TP316 Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
316L SS Tube Mechanical Properties
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Steel 316L Features
- The appearance of colr-rolled products is gloss and beautiful
- Due to the addition of Mo, corrosion resistance, especially pitting resistance is excellent;
- Excellent high temperature strength
- Excellent work hardening (weak magnetism after processing)
- Non-magnetic in solid solution state
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
