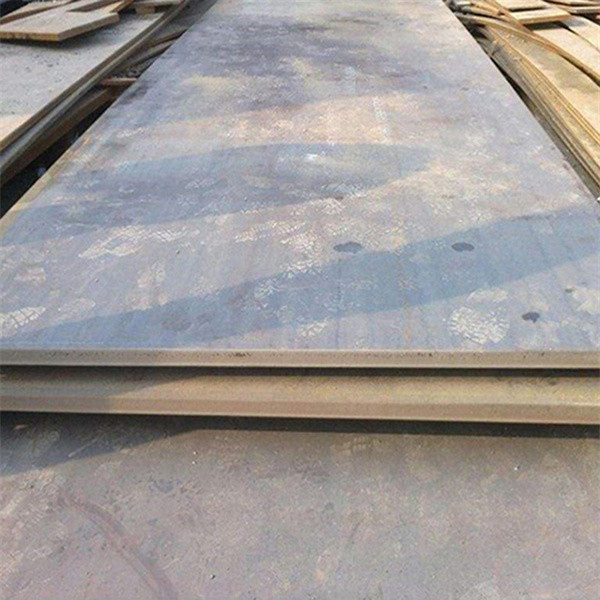

AH36 Steel Plate Hot Rolled Shipbuilding Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Ship Plate, Boiler Plate, Container Plate, Making Pipes, | Grade | A, B, D, E, AH32/36/40, DH32/36/40, And EH32/36/40 |
|---|---|---|---|
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling | Tolerance | ±1% |
| Use | Common Use High Strength Steel In Offshore & Marine | Thickness Range | 5 Mm -150 Mm |
| Width Range | 1500 Mm - 3900 Mm | Length Range | 6 M, 12 M, Coils |
| Highlight | Hot Rolled Shipbuilding Steel Plate,Shipbuilding Hot Rolled Steel Plate,AH36 Shipbuilding Steel Plate |
||
Product Description
AH36 Steel Plate Description
Shipbuilding steel plate also named as ship plate,marine steel plate,marine plate and shipbuilding plate,refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society, mainly used to building vessels and ships.
AH36 Steel Plate is a high-strength, low-alloy hot-rolled steel plate, specially used for shipbuilding and marine engineering.The AH36 steel plate comes under the specification of ASTM A131/A131M grade. These plates have a good impact strength and work well in different marine ecosystems.
Definition
AH36 in accordance with the specification of the American Bureau of Shipping (ABS), "A" means that the steel plate belongs to the ordinary strength marine steel plate series, "H" means high strength, and "36" means that its minimum yield strength is 36 ksi (about 250 MPa).
There are 9 main classification societies in worldwide
A.B.S American Bureau of Shipping
B.V. Bureau Veritas
C.C.S. China Classification Society
D.N.V Det Norske Veritas
G.L. Germanischer Lloyd
K.R. Korean Register of Shipping
L.R. Lloyd’s Register of Shipping
N.K. Nippon Kaiji Kyokai
R.I.N.A Registro Italiano Navale
Shipbuilding Plates Specification
| Thickness | 4-200 mm |
| Width | 1500-4000 |
| Length | as request |
| grades in high demand |
AH36, A36, B, A40, A32, DH32, D32, E36, AH32, D40, D36, F40, A, AH40, EH32, D, E32,EH36, DH36, DH40, EH40 E, E40,etc |
| Delivery condition | normalised rolled or normalised, Hot-rolled, quenched and tempered and thermomechanically rolled,etc |
Shipbuilding Steel Chemical Composition (%)
| Grade | C%≤ | Mn % | Si % | p % ≤ | S % ≤ | Al % | Nb % | V % |
|---|---|---|---|---|---|---|---|---|
| A | 0.22 | ≥ 2.5C | 0.10~0.35 | 0.04 | 0.40 | — | — | — |
| B | 0.21 | 0.60~1.00 | 0.10~0.35 | 0.04 | 0.40 | — | — | — |
| D | 0.21 | 0.60~1.00 | 0.10~0.35 | 0.04 | 0.04 | ≥0.015 | — | — |
| E | 0.18 | 0.70~1.20 | 0.10~0.35 | 0.04 | 0.04 | ≥0.015 | — | |
| A32 D32 E32 | 0.18 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.10~0.50 | 0.04 | 0.04 | ≥0.015 | — | — |
| A36 D36 E36 | 0.18 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.10~0.50 | 0.04 | 0.04 | ≥0.015 | 0.015~0.050 | 0.030~0.10 |
Shipbuilding Steel Plate Mechanical Properties
| Grade | Elongation (%)≥ |
Yieldpoint (Mpa) ≥ |
Thickness (mm) |
Tensile Strength (Mpa) |
V-impact test | cold bend test | |||
|---|---|---|---|---|---|---|---|---|---|
| Temperature (℃) |
Average AKV A kv /J |
b=5a 120° |
b=2a 180° |
||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A32 | 22 | 315 | ≤50 mm | 440~590 | 0 | 31 | 22 | d=3a | — |
| D32 | -20 | ||||||||
| E32 | -40 | ||||||||
| A | 22 | 235 | ≤50 mm | 400~490 | — | — | — | — | d=2a |
| B | 0 | 27 | 20 | d=3a | — | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| A36 | 21 | 355 | ≤50 mm | 490~620 | 0 | 34 | 24 | d=3a | — |
| D36 | -20 | ||||||||
| E36 | -40 | ||||||||
AH36 Plate Delivery Condition
| Side/surface condition | pickled | non-pickled | pickled and oiled |
|---|---|---|---|
| Trimmed edges | √ | - | √ |
| Mill edges | √ | √ | √ |
COMPANY INTRODUCTION
Henan Jinbailai Industrial Co.,LTD is a professional manufacturer dedicated to manufacturing high-quality steel pipes.Located in Henan Province, it mainly produces steel pipe, stainless steel, galvanized sheet, aluminum sheet and other metal materials. The company adheres to the concept of "people-oriented, dedicated and innovative" and always attaches importance to the introduction and training of talents. The company has a strong technical force, the technical staff have undergone strict training and assessment, the work is rigorous and conscientious, and the testing equipment is complete to ensure the quality of the products.
PRODCTION PROCESS
CERTIFICATE
FAQ
Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
Q: How is your Payment Term?
A: We prefer TT or L/C
Q: Can you provide sample?
A: Yes, for regular size of samples, it's for free but buyer need to pay freight cost.
Q: Surface coating?
A: Antirusted painting, varnish painting, galvanized, 3LPE, 3PP,Zinc oxide yellow primer,Zinc phosphate primer and as per
customers' request.
Q: Why choose our company?
A: (1)We are specialized in this industry for more than 20 years
(2) We are the gold supplier on Alibaba com
Q: What's the MOQ?
A: 25Tons is ok
Q: What's your delivery time?
A: Regular lead time is 15 to 30 days after receiving deposit
