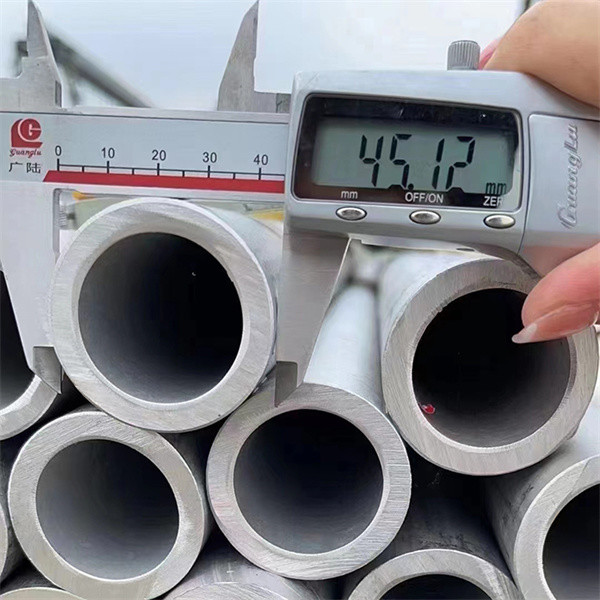

ASTM A312 TP316L Seamless Stainless Steel Pipe Schedule 80 SMLS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | ASTM A312 Seamless Stainless Steel Pipe,Schedule 80 Seamless Stainless Steel Pipe,TP316L Seamless Stainless Steel Pipe |
||
Product Description
316L Pipe Description
316L stainless steel is a molybdenum-containing austenitic stainless steel,a low-carbon version of 316 stainless steel, belongs to the 300 series stainless steel.It does not precipitate due to carbides at the grain boundaries,which means it is not susceptible to sensitization.The "L" in 316L indicates the low carbon content (up to 0.03%), which significantly reduces the risk of carbide precipitation during welding,to maintain its corrosion resistance after welding,making 316L a preferred material for welding applications.
316L is a molybdenum-containing stainless steel, containing 2%-3% molybdenum,properties is better than 310 and 304 stainless steel. Under high temperature conditions, when the concentration of sulfuric acid is lower than 15% or higher than 85%, 316L stainless steel has a wide range of applications. 316L stainless steel also has good resistance to chloride corrosion,widely used in marine environments.
 |
|
316L Seamless Pipe Specification
| Grade | ASTM A312 / ASTM SA 312 |
| Specifications | ANSI/ ASME B36.19M, ANSI/ ASME B36.10M |
| Forms | Rectangle, Hex, Honed, Square, Round, Hydraulic Pipe,or as required |
| Technology | 100% X Ray Welded, CDW, ERW, Welded, Seamless, Fabricated |
| End Bevel | Plain, Beveled and Treaded End |
| Delivery & Finished Condition | Bright Annealed, Cold Drawn, Polished, Annealed and Pickled, Pickled and Passivated |
| Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Additional Service | Grooving, Threading, Machining, Ultrasonic Testing, Customer Tagging/ Marking, Destructive, MTR’s Available, Threading, Polishing, Export Documentation, Non Destructive, Beveling, Export Packaging, Cutting, Color Coding, Material testing |
TP316L Chemical Composition
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
316L SS Tube Mechanical Properties
| Material | Heat Treatment |
Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | |||
| º F(º C) | |||||
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
316L Stainless Steel Heat Treatment
Melting point: 1375~1450C;
Solution treatment: 1010~1150C.
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
Stainless Steel 316L Features
- The appearance of colr-rolled products is gloss and beautiful
- Due to the addition of Mo, corrosion resistance, especially pitting resistance is excellent;
- Excellent high temperature strength
- Excellent work hardening (weak magnetism after processing)
- Non-magnetic in solid solution state
Stainless Steel Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
