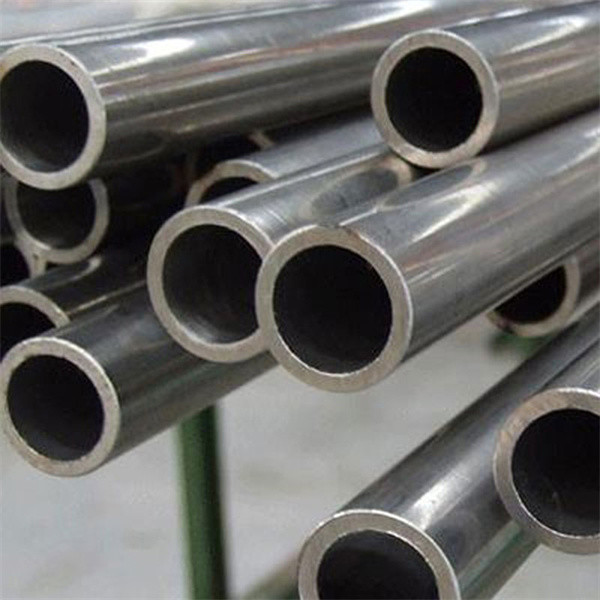

High Pressure Stainless Steel Tubing Grade 304/316 SS Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless,Welded,etc | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,Square,Rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | Grade 316 Stainless Steel Tubing,High Pressure Stainless Steel Tubing,Grade 304 Stainless Steel Tubing |
||
Product Description
Stainless Steel Pipe Description
High Pressure Stainless Steel Tubing is a key component of piping systems used to withstand high-pressure liquids or gases. It is made of stainless steel material, has excellent pressure resistance and corrosion resistance, and is often used in industrial fields that require high reliability and safety.
High-pressure stainless steel pipes are usually made of high-quality stainless steel materials, such as 316 stainless steel, 304 stainless steel, etc.,have excellent corrosion resistance and mechanical properties and perform well in high-pressure environments.
The process of manufacturing high-pressure ss pipes includes cold drawn, cold rolled, cold extrusion and other processes to ensure the dimensional accuracy and surface quality of the pipes. The ends of steel pipes are usually welded or flanged to ensure tightness and structural strength.
We offer our range of stainless-steel tube (or pipe, pole, piping, tubing, as it is also often referred to as) in steel grades 304 and 316.
Grade 304 is the most used standard grade has good corrosion resistance and good machinability.
316 Grade has much better corrosion resistance and is the grade recommended for marine environments or coastal applications,also known as "marine grade"
 |
|
SS Pipe Specification
|
Item |
Stainless Steel Pipe |
|
|
Steel grade |
200 series,300 series,400 series,etc |
|
|
|
ASTM ,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
|
|
Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
|
|
Surface |
Polishing,annealing,pickling,bright |
|
|
Type |
hot rolled and cold rolled |
|
|
stainless steel round pipe/tube |
||
|
|
Wall thickness |
1mm-150mm(SCH10-XXS) |
|
Outer diameter |
6mm-2500mm (3/8"-100") |
|
|
stainless steel square pipe/tube |
||
|
|
Wall thickness |
1mm-150mm(SCH10-XXS) |
|
Outer diameter |
4mm*4mm-800mm*800mm |
|
|
stainless steel rectangular pipe/tube |
||
|
Size |
Wall thickness |
1mm-150mm(SCH10-XXS) |
|
Outer diameter |
6mm-2500mm (3/8"-100") |
|
|
Length |
4000mm,5800mm,6000mm,12000mm,or as required. |
|
|
Trade terms |
Price terms |
FOB,CIF,CFR,Ex-work,or Negotiation |
|
Payment terms |
T/T,L/C,or Negotiation |
|
Stainless Steel Pipe Chemical Composition
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
SS Tube Mechanical Properties
| Material | Heat Treatment |
Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | |||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
SS Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
SS Pipe Features
- High strength
- Resistant to high mechanical stresses
- Resistant to high pressure
- Resistant to high temperature
- Good formability
Stainless Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
