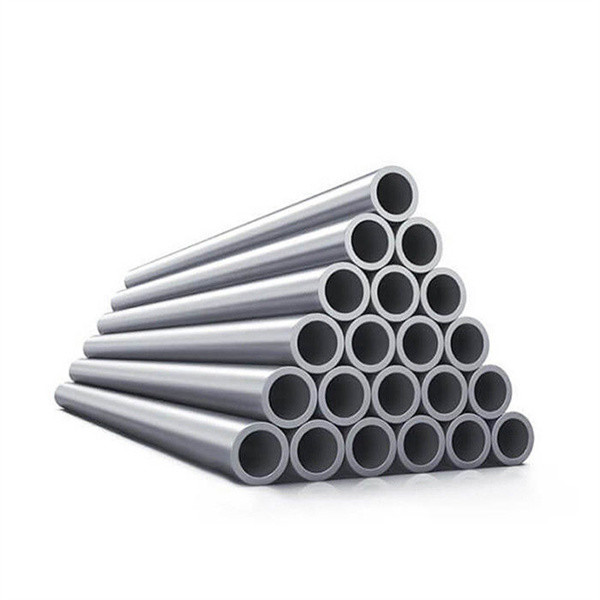

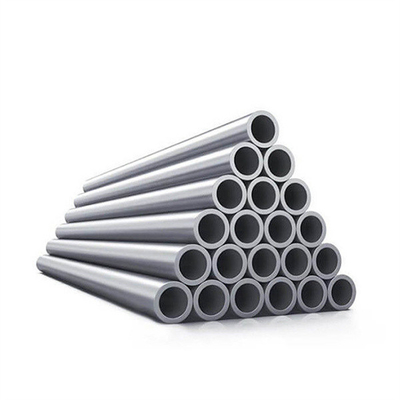

3 Inch Seamless Stainless Steel Round Pipe Grade 304/316
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM/ASME/EN/DIN/JIS,etc | Grade | 201,304,316,etc |
|---|---|---|---|
| Type | Seamless | Length | 4000mm,5800mm,6000mm,12000mm,or As Required. |
| Thickness | 0.3-50mm,or As Required | Shape | Round,square,rectangular,or As Request |
| Technique | Hot Rolled,Cold Rolled | End | Plain End, Beveled End, Threaded |
| Surface | 2B, No.4, No.1, No.8 Mirror Finish,etc | Package | Standard Export Seaworthy Package,or As Required. |
| Highlight | 304 Seamless Stainless Steel Round Pipe,316 Seamless Stainless Steel Round Pipe,3 Inch Stainless Steel Round Pipe |
||
Product Description
Stainless Steel Seamless Pipe Description
Stainless steel pipe is a key component in pipeline systems used to transport fluids, gases and solids. It is widely used in chemical industry, petroleum, pharmaceuticals, food processing, building decoration and other fields.We offer our range of stainless-steel tube (or pipe, pole, piping, tubing, as it is also often referred to as) in steel grades 304 and 316.
Grade 304 is the most used standard grade has good corrosion resistance and good machinability.
316 Grade has much better corrosion resistance and is the grade recommended for marine environments or coastal applications,also known as "marine grade"
 | |
Seamless Stainless Steel Round Pipe Specification
Item | Stainless Steel Pipe | |
Steel grade | 200 series,300 series,400 series,etc | |
| ASTM ,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 | |
Surface | Polishing,annealing,pickling,bright | |
Type | hot rolled and cold rolled | |
stainless steel round pipe/tube | ||
| Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 6mm-2500mm (3/8"-100") | |
stainless steel square pipe/tube | ||
| Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 4mm*4mm-800mm*800mm | |
stainless steel rectangular pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 6mm-2500mm (3/8"-100") | |
Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
Trade terms | Price terms | FOB,CIF,CFR,Ex-work,or Negotiation |
Payment terms | T/T,L/C,or Negotiation | |
304 Stainless Steel Pipe Chemical Composition
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
316 SS Tube Mechanical Properties
| Material | Heat Treatment | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | |||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
SS Seamless Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Seamless Pipe End Protection:Plastic Caps
Ends:Plain End, Beveled End, Threaded
SS 304 Seamless Pipe Sizes
NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
1/8″ | √ | √ | √ | √ | √ |
1/4″ | √ | √ | √ | √ | √ |
3/8″ | √ | √ | √ | √ | √ |
1/2″ | √ | √ | √ | √ | √ |
3/4″ | | √ | √ | √ | √ |
1″ | √ | √ | √ | √ | √ |
1 1/4″ | √ | √ | √ | √ | √ |
1 1/2″ | √ | √ | √ | √ | √ |
2″ | √ | √ | √ | √ | √ |
2 1/2″ | √ | √ | √ | √ | √ |
3″ | √ | √ | √ | √ | √ |
4″ | √ | √ | √ | √ | √ |
5″ | √ | √ | √ | √ | √ |
6″ | √ | √ | √ | √ | √ |
Seamless Pipe SS 304 Features
- High strength
- Resistant to high mechanical stresses
- Resistant to high pressure
- Resistant to high temperature
- Good formability
Stainless Pipe FAQ
Q: What about Stainless steel pipe price information?
A: Negotiation.Prices vary due to changes in raw material prices on a regular basis.
Q: What are your company's main stainless steel products?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q: Can I pay you a visit at your factory?
A: Customers from all around the world are welcome to visit our factory.
