316 Stainless Steel Schedule 40 Seamless Pipe For Petrochemical Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ASTM,ASME,AISI,EN,DIN | Grade | 300 Series |
|---|---|---|---|
| Type | Seamless | Wall Thickness | Sch5s-Sch160, Xs, XXs |
| Length | Single Random, Double Random & Cut Length | Shape | Round,Square,Rectangle,or As Request |
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | Technique | Cold Rolled/Hot Rolled |
| Delivery Condition | Annealed And Pickled, Polished, Bright Annealed, Cold Drawn | Packing Details | Standard Seaworthy Packages In Bundles Or As Per Requirement |
| Highlight | Petrochemical Industry Schedule 40 Seamless Pipe,316 Stainless Steel Schedule 40 Seamless Pipe |
||
Product Description
316 Stainless Pipe Specification
316 Stainless Steel,also referred to in many cases as marine stainless steel,is designed with excellent corrosion resistance. Grade 316 has better crevice corrosion and pitting resistance compared to the 304 alloys.SS 316 Seamless Pipe is made without a fillet or welds. 316 ss tubing sizes range from ½ inches to 16 inches in outer diameter. 316 ss pipes are widely used in marine systems, pulp, and paper, chemical industries, etc.
|
Item |
316 Stainless Steel Schedule 40 Seamless Pipe | |
|
Steel Grade |
300 series |
|
|
Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296 |
|
|
Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
|
|
Surface |
Polishing,annealing,pickling,bright |
|
|
Type |
hot rolled and cold rolled |
|
|
Stainless steel round pipe/tube |
||
|
Size |
Wall thickness |
1mm-150mm |
|
Outer diameter |
6mm-2500mm |
|
|
Package |
Standard export seaworthy package,or as required. |
|
316 SS Pipe Chemical Compostion
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | min. | – | – | – | – | – | 16.0 | 2.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 | |
316 Stainless Pipe Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |

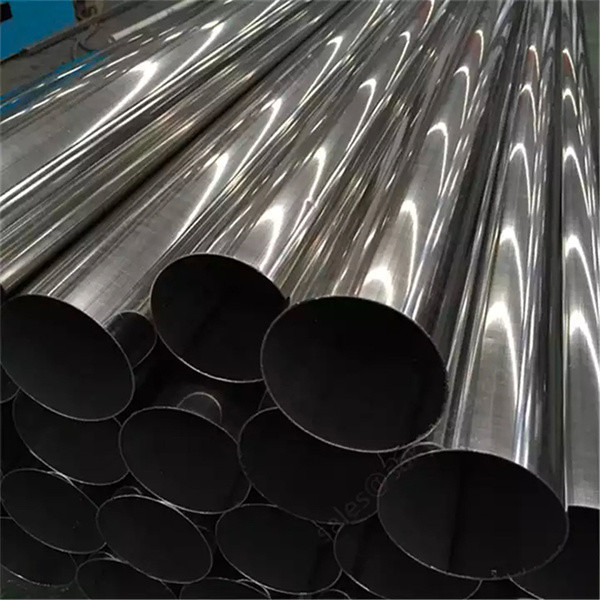

316 Stainless Steel Tubing Detailed Photo
316 Stainless Steel Pipe Schedule Chart
|
1/8" IPS(.405"O. D.) |
3 1/2" IPS( 4.000"O. D.) |
|---|---|
|
SCH 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/4" IPS(.540"O. D.) |
4" IPS(4.500"O. D.) |
|
SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
3/8" IPS(.675"O. D.) |
5" IPS( 5.563"O. D.) |
|
SCH 10, 40, 80 |
SCH 10, 40, 80, 160, XXH |
|
1/2" IPS(.840"O. D.) |
6" IPS(6.625"O. D.) |
|
SCH 5, 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
3/4" IPS(1.050"O. D.) |
8 ” IPS(8.625"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH 5, 10, 40, 80, 120, 160, XXH |
|
1" IPS:(1.315′O. D.) |
10" IPS(10.750"O. D.) |
|
SCH 5, 10, 40, 80, 160, XXH |
SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
|
1-1/4" IPS(1.660"O. D.) |
12" IPS(12.750"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
|
1-1/2" IPS(1.900"O. D.) |
14" IPS(14.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH10 (.188), SCH40 (.375) |
|
2" IPS(2.375"O. D.) |
16" IPS(16.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH10(.188), SCH40(.375) |
|
2 1/2" IPS(2.875"O. D.) |
18" IPS (18.000"O. D.) |
|
SCH 10, 40, 80, 160, XXH |
SCH-40 (.375) |
|
3" IPS( 3.500"O. D.) |
|
|
SCH 5, 10, 40, 80, 160, XXH |
Stainless Steel 316 Pipes Packing:
Packing Details:Standard export seaworthy package,or as required.
Container Size
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Shipping Port:Tianjin,Shanghai,Qingdao port,or as required
