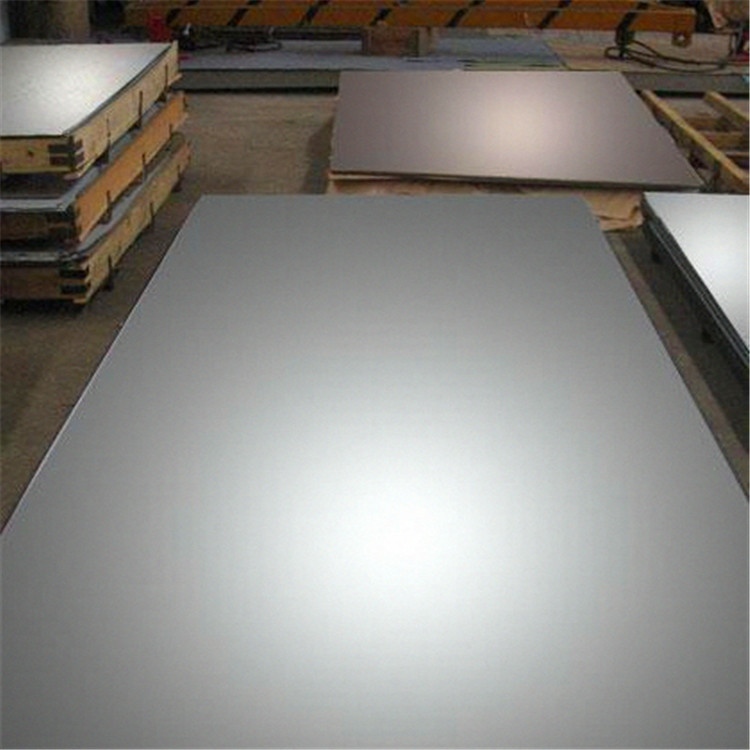

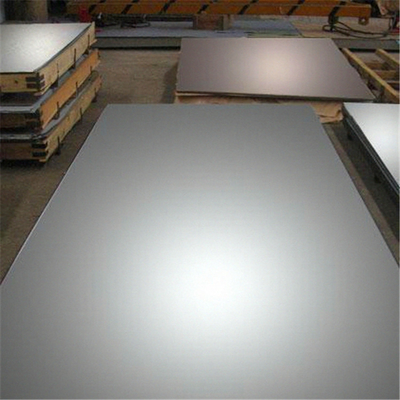

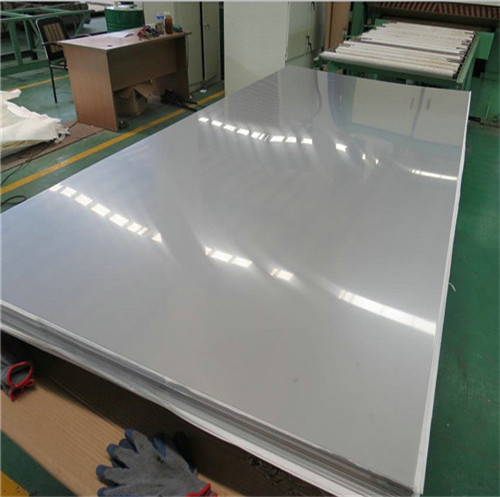

321H Stainless Steel Sheet Plate 1000-2200mm Width High Rust Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 321h Stainless Sheet Metal | Material | 321h Stainless Steel Plate |
|---|---|---|---|
| Surface | NO.2 2B No.4 No.6 | Third Party | SGS BV |
| Width | 1000-2200mm Or As Requirements | Thickness | 1mm~24mm |
| Highlight | Stainless Steel Sheet Plate 2200mm,Stainless Steel Sheet Plate Rust Resistance,Stainless Steel metal Plate Rust Resistance |
||
Product Description
what is 321H Stainless Steel Plate?
321H steel is a high-carbon stainless steel with a higher chromium content than 304H. It has excellent corrosion resistance, good weldability and formability, and high-temperature properties. It is suitable for applications up to about 900°C and can be used in more aggressive environments than 304H. It is also non-magnetic and has a higher strength-to-weight ratio than 304H. Some of its general properties include:
• High strength
• High corrosion resistance
• Good weldability and formability
• Non-magnetic
• High-temperature properties
• High strength-to-weight ratio
| Element | Chromium | Nickel | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Titanium | Nitrogen | Iron |
| 321 | 17.00 min.-19.00 max. | 9.00 min.-12.00 max. | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 5 x (C + N) min.-0.70 max. | 0.1 | Balance |
| 321H | 17.00 min.-19.00 max. | 9.00 min.-12.00 max. | 0.04 min.-0.14 max. | 2 | 0.045 | 0.03 | 0.75 | 4 x (C + N) min.-0.70 max. | 0.1 | Balance |
Chemical Composition (%) of 321H Stainless Steel Plate
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Titanium | Manganese | Nickel | Nitrogen |
| 0.04-0.14 | 0.75 | 0.03 | 0.045 | 17.0-19.0 | 4 x (C + N) min.-0.70 max. | 2.00 | 9.0-12.0 | 0.10 |
Mechanical Properties of 321H Stainless Steel Plate
| Yield Strengtd 0.2% Offset |
Ultimate Tensile Strength |
Elongation in 2 in. |
Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 217 Brinell |
Physical Properties of 321H Stainless Steel Plate
| Density lb/inᶟ | 0.286 |
| Density g/cmᶟ | 7.920 |
| Melting Range | 2550-2635°F/1398 – 1446 °C |
| Thermal Conductivity at 212°F (100°C) | 9.3 BTU/hr/ft²/ft/°F |
| Thermal Conductivity at 212°F (100°C) | 16.0 W/m-°K |
| Electrical Resistivity | 72 Microhm-cm at 20°C |
Application of 321 Stainless Steel Plate
- Aerospace – piston engine manifolds
- Pharmaceutical Production
- Chemical Processing
- Petroleum Refining – polythionic acid service
- Expansion Joints
- Food Processing – equipment and storage
- Waste Treatment – thermal oxidizers
About us
Packing & Delivery
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days or according to the order quantity or upon negotiation
