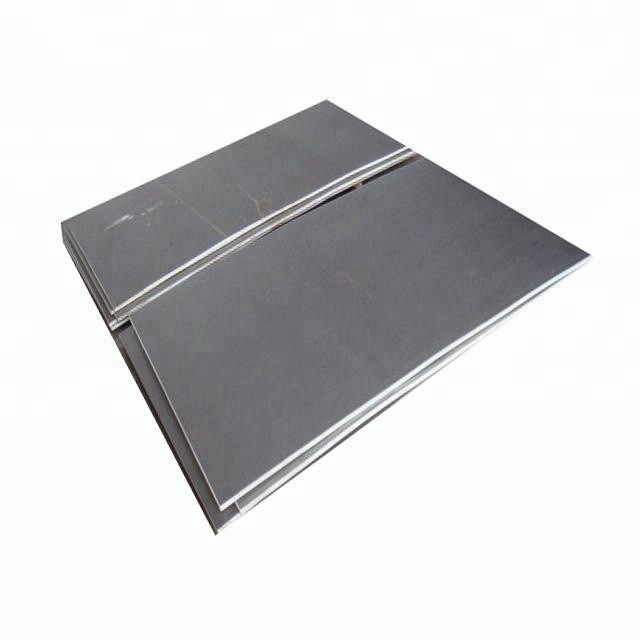

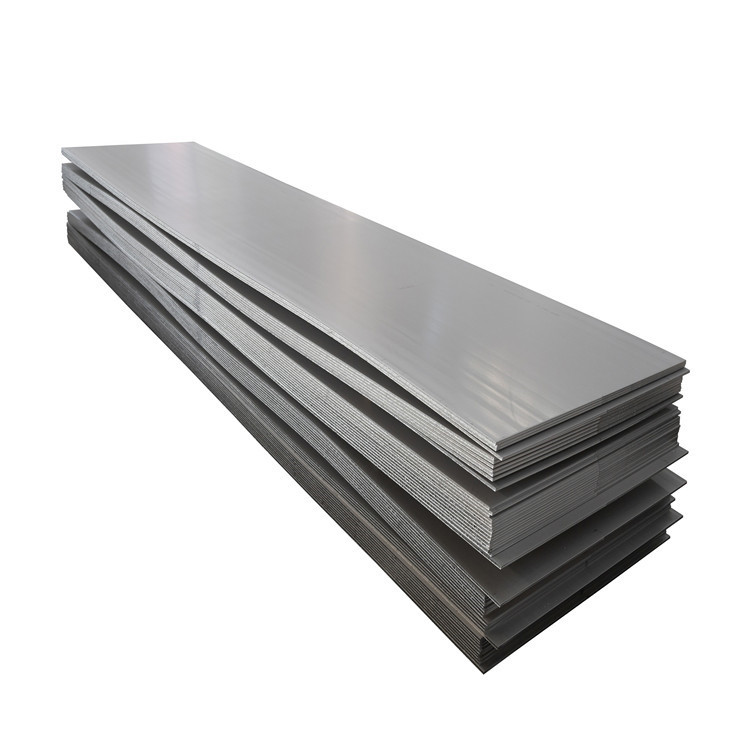

Oxidation Resistance 321 Stainless Steel Plate 1mm~23mm Thickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 321 Stainless Sheet Metal | Material | 321 Stainless Steel Plate |
|---|---|---|---|
| Surface | 2B NO.2 No.4 No.6 | Third Party | SGS BV |
| Width | 1000-2200mm Or As Requirements | Thickness | 1mm~23mm |
| Highlight | 321 Stainless Steel Plate 23mm,Oxidation Resistance 321 Stainless Steel Plate,321 stainless steel sheet 23mm |
||
Product Description
what is 321 Stainless Steel Plate?
321 stainless steel plate is a type of stainless steel plate that is made from an austenitic alloy containing chromium, nickel and titanium. It is non-magnetic and has excellent corrosion resistance, making it ideal for applications in corrosive environments. It is often used in the fabrication of exhaust systems, turbochargers, and other high-temperature components.
what's the character of 321 Stainless Steel Plate?
321 stainless steel plate is a stabilized austenitic stainless steel with good general corrosion resistance. It has excellent resistance to intergranular corrosion after welding and exposure to elevated temperatures. It has good creep strength and stress rupture properties. It also has excellent low temperature toughness and ductility.
321 stainless steel plate offers a variety of benefits, including: resistance to corrosion and oxidation, superior strength at high temperatures, excellent formability and weldability, and a low cost of ownership due to its long lifespan. Additionally, 321 stainless steel plate is non-magnetic, making it ideal for use in applications where a non-magnetic material is required.
Chemical Composition (%) of 321 Stainless Steel Plate
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Titanium | Manganese | Nickel | Nitrogen |
| 0.008 | 0.75 | 0.03 | 0.045 | 17.0-19.0 | 5 x (C + N) min.-0.70 max. | 2.00 | 9.0-12.0 | 0.10 |
Mechanical Properties of 321 Stainless Steel Plate
| Yield Strengtd 0.2% Offset |
Ultimate Tensile Strength |
Elongation in 2 in. |
Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 217 Brinell |
Physical Properties of 321 Stainless Steel Plate
| Density lb/inᶟ | 0.286 |
| Density g/cmᶟ | 7.920 |
| Melting Range | 2550-2635°F/1398 – 1446 °C |
| Thermal Conductivity at 212°F (100°C) | 9.3 BTU/hr/ft²/ft/°F |
| Thermal Conductivity at 212°F (100°C) | 16.0 W/m-°K |
| Electrical Resistivity | 72 Microhm-cm at 20°C |
Application of 321 Stainless Steel Plate
These stainless steel plate grades have a wide range of applications, particularly in settings where higher temperatures are necessary. These stainless steel plate grades are frequently employed in heat exchangers, bellows, expansion joints, heating element tubing, spiral-welded tubes for burner pipes and flues, as well as furnace components. For use in high-temperature mineral processing, this type of stainless steel plate is also used in woven or welded metal screens. It is used in the aerospace sector as well, notably in piston engine manifolds and aircraft exhaust systems. These grades are helpful for equipment and storage in the chemical and food processing sectors. These grades are also well suited for use in waste treatment procedures, the chemical sector, and petroleum refining.
About us
Packing & Delivery
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days or according to the order quantity or upon negotiation
