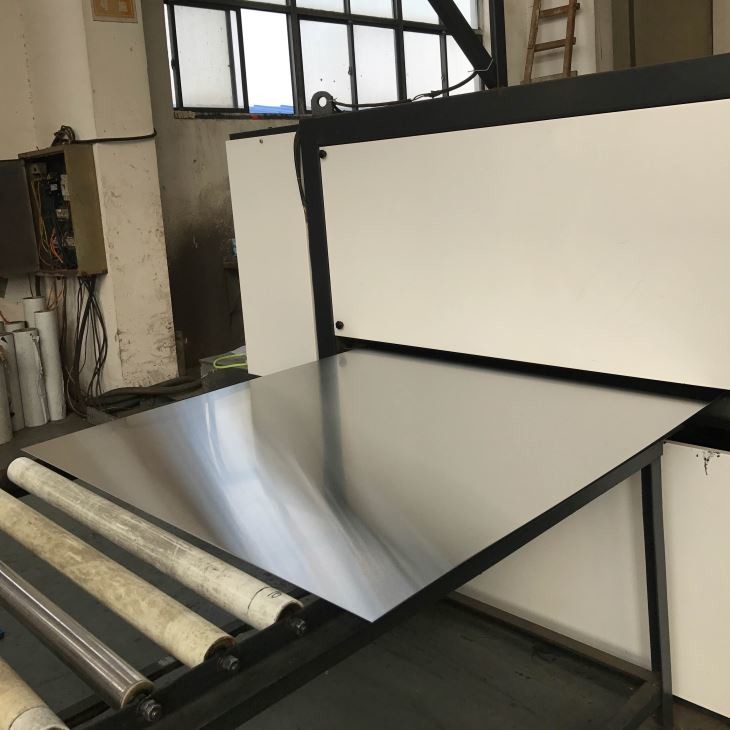

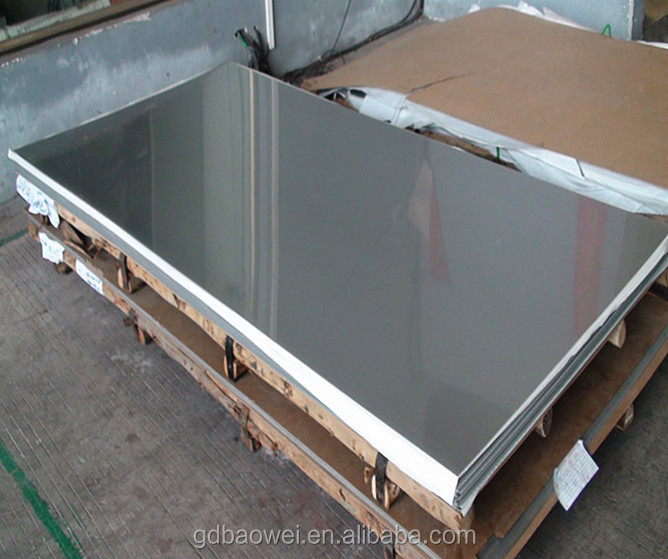

HR CR 309 309s Stainless Steel Sheet 1mm-20mm Stainless Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Stainless Sheet Metal | Material | 309 Stainless Steel |
|---|---|---|---|
| Surface | BA 2B | Third Party | SGS |
| Width | 1000-2000mm Or As Requirement | Thickness | 1mm~20mm |
| Highlight | 309s Stainless Steel Sheet 1mm,HR 20mm Stainless Steel Plate,CR 309s Stainless Steel Sheet |
||
Product Description
309/309s Stainless Steel Plates Definition
Types 309 Stainless Steel and 309S are austenitic chromium-nickel stainless steels that provide excellent corrosion resistance and heat resistance plus good strength at room and elevated temperatures. Type 309S Stainless Steel is identical to Type 309 except for a lower carbon content that minimizes carbide precipitation and improves weldability. They are essentially nonmagnetic as annealed and become lightly magnetic when cold worked.
An ISO 9001:2008 Certified Company, Savoy piping Inc., is a leading Stockholder, Supplier and Exporter of ASTM A240 309/309s Stainless Steel Plate. 309/309s Stainless Steel Plates are cut to your specifications and supplied with a complete set of mill test reports. Custom lengths and widths up to 2000 mm can be made available. Exports is Our Specialty! and we can source many hard-to-find grades and or non-standard sizes to meet the special requirements of our customers. All ASTM SS 304 Steel Plates can be cut to size with the help of our extensive expertise in processing steel Plate products.
Our stock of ASTM A240 309/309s Stainless Steel Plate includes thicknesses of 6mm up to 80mm with width of 1250mm, 1500mm, and 2000mm.
- Order Large or Small Quantities of ASTM A240 309/309s Stainless Steel Plate
- Cut to Size ASTM A240 309/309s Stainless Steel Plate Available
- No Minimum Order Quantity for ASTM A240 309/309s Stainless Steel Plate
309/309s Stainless Steel Plate Range
| 309/309s Stainless Steel Plates Specification | ASTM A240 / ASME SA240 |
| 309/309s Stainless Steel Plates Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| 309/309s Stainless Steel Plates Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 |
| 309/309s Stainless Steel Plates Thickness | 0.6 MM TO 80 MM THICKNESS |
| 309/309s Stainless Steel Plates Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| 309/309s Stainless Steel Plates Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| 309/309s Stainless Steel Plates Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| 309/309s Stainless Steel Plates Coating | PVC coating Normal / Laser, Film: 100 micrometers, Color: black/white. |
| 309/309s Stainless Steel Plates Other Testing | NACE MR0175, Ultrasound TEST, IGC TEST, Intergranular Corrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
| 309/309s Stainless Steel Plates Value Added Services | Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| 309/309s Stainless Steel Plates Packaging | Loose / Carrate / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps |
| 309/309s Stainless Steel Plates Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| 309/309s Stainless Steel Plate sheet Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
309/309s Stainless Steel Plates Chemical Composition and Properties
The chemical composition of grade 309/309s Stainless Steel is outlined in the following table
| Element | 309 | 309S | 309H |
|---|---|---|---|
| Chromium | 22.0 min.-24.0 max. | 22.0 min.-24.0 max. | 22.0 min.-24.0 max. |
| Nickel | 12.0 min.-15.0 max. | 12.0 min.-15.0 max. | 12.0 min.-15.0 max. |
| Carbon | 0.20 | 0.08 | 0.04 min.-0.10 max. |
| Manganese | 2.00 | 2.00 | 2.00 |
| Phosphorus | 0.045 | 0.045 | 0.045 |
| Sulfer | 0.030 | 0.030 | 0.030 |
| Silicon | 0.75 | 0.75 | 0.75 |
| Iron | Balance | Balance | Balance |
MECHANICAL PROPERTIES OF ASTM A213 309S STAINLESS STEEL PLATES
The mechanical properties of grade 309S Stainless Steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 620 MPa | 89900 psi |
| Tensile strength, yield (0.2%) | 310 MPa | 45000 psi |
| Izod impact | 120 - 165 J | 88.5 - 122 ft-lb |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poissons ratio | 0.3 | 0.3 |
| Elongation at break (in 50 mm) | 45% | 45% |
| Hardness, Brinell (converted from Rockwell B hardness) | 147 | 147 |
| Hardness, Knoop (converted from Rockwell B hardness) | 164 | 164 |
| Hardness, Rockwell B | 85 | 85 |
| Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
About us
Packing & Delivery
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days or according to the order quantity or upon negotiation
Q: What the main products you can supply?
A: We are a professional and famous factory in China for Stainles steel sheets/ Coils/ Tubes/ Profiles/Composite packaging Materials; Corten steel; Wear Resistant steel and Carton steels.
Q: Will you accept customized and OEM products?
A: Yes, we can do the production based on your drawings and with your logo, also because we have a very strong design and development team, so the feedback is very good for customized products.
Q: What are your payment terms?
A: Commonly two payment terms for new customers
1 ) 30%T/T as deposit,70% balance against B/L copy. 2)100% Irrevocable L/C at sight.
If you need other terms, please feel free to contact us too, we will try our best.
