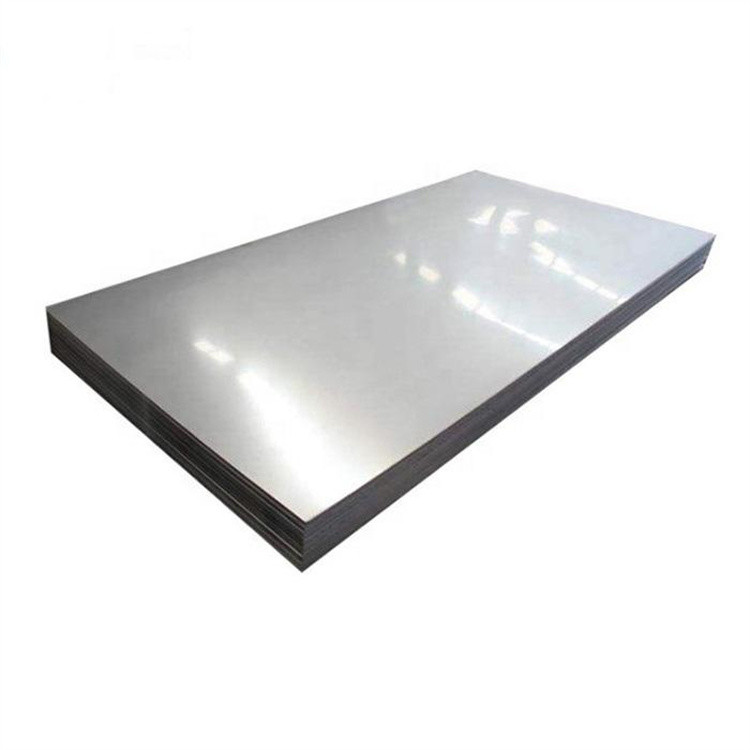

Customizable 304H Stainless Steel Plate ASTM A240 High Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Stainless Steel Sheet | Material | Stainless Steel |
|---|---|---|---|
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | Third Party | SGS BV |
| Width | 1000-2000mm Or As Requirement | Thickness | 3mm |
| Highlight | Customizable 304H Stainless Steel Plate,304H Stainless Steel Plate ASTM A240,Customizable 304h stainless steel sheet |
||
Product Description
304H Stainless Steel Plates Definition
Grade 304H Stainless Steel with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures
An ISO 9001:2008 Certified Company, Savoy piping Inc., is a leading Stockholder, Supplier, and Exporter of ASTM A240 304H Stainless Steel Plate. 304 Stainless Steel Plates are cut to your specifications and supplied with a complete set of mill test reports. Custom lengths and widths up to 2000 mm can be made available. Exports are Our Specialty! and we can source many hard-to-find grades and or non-standard sizes to meet the special requirements of our customers. All ASTM SS 304H Steel plates can be cut to size with the help of our extensive expertise in processing steel Plate products.
Our stock of ASTM A240 304H Stainless Steel Plate includes thicknesses of 6mm up to 80mm with widths of 1250mm, 1500mm, and 2000mm.
- Order Large or Small Quantities of ASTM A240 304H Available
- Cut to Size ASTM A240 304H Stainless Steel Plate Available
- No Minimum Order Quantity for ASTM A240 304H Stainless Steel Plate
304H Stainless Steel Plate Range
| 304H Stainless Steel Plate Specification | ASTM A240 / ASME SA240 |
| 304H Stainless Steel Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| 304H Stainless Steel Plate Grades | 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904 EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539 |
| 304H Stainless Steel Plate Thickness | 0.6 MM TO 80 MM THICKNESS |
| 304 Stainless Steel Plate Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| 304H Stainless Steel Plate Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| 304H Stainless Steel Plate Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| 304H Stainless Steel Plate Coating | PVC coating Normal / Laser, Film: 100 micrometers, Color: black/white. |
| 304H Stainless Steel Plate Other Testing | NACE MR0175, Ultrasound TEST, IGC TEST, Intergranular Corrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
| 304H Stainless Steel Plate Value Added Services | Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| 304H Stainless Steel Plate Packaging | Loose / Carrate / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps |
| 304H Stainless Steel Plate Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| 304H Stainless Steel Plate Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
304H Stainless Steel Plate Chemical Composition and Properties
The chemical composition of grade 304H Stainless Steel is outlined in the following table
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75 max | 0.045 max | 0.03 max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75 max | 0.045max | 0.03 max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
304H Stainless Steel Plate Mechanical and Physical Properties
The mechanical properties of grade 304H Stainless Steel Plates are displayed in the following table.
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
304H Stainless Steel Plates Physical Properties
Physical properties of 304H grade stainless steel in the annealed condition
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
304H Stainless Steel Plate Available in Other Grade
| EN-standard Steel no. k.h.s DIN |
EN-standard Steel name |
SAE grade | UNS |
| 1.4109 | X65CrMo14 | 440A | S44002 |
| 1.4112 | X90CrMoV18 | 440B | S44003 |
| 1.4125 | X105CrMo17 | 440C | S44004 |
| 440F | S44020 | ||
| 1.4016 | X6Cr17 | 430 | S43000 |
| 1.4408 | G-X 6 CrNiMo 18-10 | 316 | S31600 |
| 1.4512 | X6CrTi12 | 409 | S40900 |
| 410 | S41000 | ||
| 1.4310 | X10CrNi18-8 | 301 | S30100 |
| 1.4318 | X2CrNiN18-7 | 301LN | |
| 1.4307 | X2CrNi18-9 | 304L | S3043 |
| 1.4306 | X2CrNi19-11 | 304L | S30403 |
| 1.4311 | X2CrNiN18-10 | 304LN | S30453 |
| 1.4301 | X5CrNi18-10 | 304 | S30400 |
| 1.4948 | X6CrNi18-11 | 304H | S30409 |
| 1.4303 | X5CrNi18-12 | 305 | S30500 |
| X5CrNi30-9 | 312 | ||
| 1.4841 | X22CrNi2520 | 310 | S31000 |
| 1.4845 | X 5 CrNi 2520 | 310S | S31008 |
| 1.4541 | X6CrNiTi18-10 | 321 | S32100 |
| 1.4878 | X12CrNiTi18-9 | 321H | S32109 |
| 1.4404 | X2CrNiMo17-12-2 | 316L | S31603 |
| 1.4401 | X5CrNiMo17-12-2 | 316 | S31600 |
| 1.4406 | X2CrNiMoN17-12-2 | 316LN | S31653 |
| 1.4432 | X2CrNiMo17-12-3 | 316L | S31603 |
| 1.4435 | X2CrNiMo18-14-3 | 316L | S31603 |
| 1.4436 | X3CrNiMo17-13-3 | 316 | S31600 |
| 1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 |
| 1.4429 | X2CrNiMoN17-13-3 | 316LN | S31653 |
| 1.4438 | X2CrNiMo18-15-4 | 317L | S31703 |
| 1.4362 | X2CrNi23-4 | 2304 | S32304 |
| 1.4462 | X2CrNiMoN22-5-3 | 2205 | S31803/S32205 |
| 1.4501 | X2CrNiMoCuWN25-7-4 | J405 | S32760 |
| 1.4539 | X1NiCrMoCu25-20-5 | 904L | N08904 |
| 1.4529 | X1NiCrMoCuN25-20-7 | N08926 | |
| 1.4547 | X1CrNiMoCuN20-18-7 | 254SMO | S31254 |
