202 Stainless Steel Welded Tubes And Pipes Round
| Place of Origin | China |
|---|---|
| Brand Name | HNJBL |
| Certification | BV,SGS |
| Model Number | 202 |
| Minimum Order Quantity | 1ton |
| Price | Negotiate |
| Packaging Details | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Delivery Time | 5-25working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Names | 309 Stainless Steel Pipe | Certificate List | CE, BV, SGS |
|---|---|---|---|
| Standard | JIS ASTM DIN | Delivery Time | 5-28days |
| Steel Grade/Type | 309 | Lengths Range | 6m, 12m |
| Highlight | 202 Stainless Steel Welded Tubes,Welded 202 Stainless Steel Pipe,Welded 202 Steel Pipe |
||
Product Description
202 Stainless Steel Welded Tubes
202 Stainless Steel Pipes And Tubes
Tubes produced under specification ASTM A554 are intended for use in mechanical applications. In said applications, the SUS 202 Cold Rolled Coiled Tubing material may fulfill the user’s requirements with regards to several parameters not limited but including the product’s appearance, resistance to corrosion, and its mechanical properties. The specification covers the details on the automatic welding process of the Stainless Steel 202 Welded Tube, including the use of a process minus the addition of filler metals. Various shapes are covered by the specifications such as square, round, rectangular, or any other shape requirement of the ASTM A554 TP 202 Instrumentation Tubes specified by the buyer.
Heat analysis of the product is another requirement under the ASTM A554. Since the ASTM A554 TP 202 Welded Tube belongs to the austenitic category of stainless steels, the heat analysis to be conducted on the alloy must conform to the specification. The main chemical makeup consists of elements like chromium, nickel, and manganese. This chemistry imparts the WERKSTOFF NR.1.4373 Heat exchanger Tube with multiple good characteristics such as good resistance to corrosion, good toughness, high hardness, and good tensile strength.
Stainless Steel 202 Welded Tube Specification
| Standard | ASTM, AISI, GB, JIS, customers' requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers' request |
| Sample | Free sample is available, but freight should be paid by you |
|
Tolerance
|
Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
|
Finishing
|
A. Sanded |
| B. Gloss #400,Mirror #600 - #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
|
Grade
|
C
|
Cr
|
Ni
|
Mo
|
Other
|
|
301
|
≤0.15
|
16.0~18.0
|
6.00~8.00
|
-
|
-
|
|
301L
|
≤0.030
|
16.0~18.0
|
6.00~8.00
|
-
|
N≤0.20
|
|
304
|
≤0.08
|
18.0~20.0
|
8.00~10.50
|
-
|
-
|
|
304J1
|
0.02~0.05
|
16.5~17.1
|
7.5~7.9
|
-
|
Cu1.9~2.2
|
|
304L
|
≤0.030
|
18.0~20.0
|
9.00~13.00
|
-
|
-
|
|
304N1
|
≤0.08
|
18.0~20.0
|
7.00~10.50
|
-
|
N0.10~ 0.25
|
|
304N2
|
≤0.08
|
18.0~20.0
|
7.50~10.50
|
-
|
Nb≤0.15
|
|
316
|
≤0.08
|
16.0~18.0
|
10.00~14.00
|
2.00~3.00
|
-
|
|
316L
|
≤0.03
|
16.0~18.0
|
12.00~15.00
|
-
|
-
|
|
321
|
≤0.08
|
17.0~19.0
|
9.00~13.00
|
-
|
Ti5×C%
|
|
409L
|
≤0.03
|
17.0~19.0
|
-
|
-
|
Ti6×C%~0.75
|
|
410L
|
≤0.03
|
11.0~13.5
|
-
|
-
|
-
|
|
430
|
≤0.12
|
16.0~18.0
|
-
|
-
|
-
|
|
430J1L
|
≤0.025
|
16.0~20.0
|
-
|
-
|
Nb8(C%+N%)~0.8
Cu0.30~0.80 |
|
436L
|
≤0.025
|
16.0~19.0
|
-
|
0.75~1.25
|
Ti,Nb,Zr8
×(C%+N%)~0.8 |
|
410
|
≤0.15
|
11.5~13.5
|
-
|
-
|
-
|
|
420J1
|
0.16~0.25
|
12.0~14.0
|
-
|
-
|
-
|
|
420J2
|
0.26~0.4
|
12.0~14.0
|
-
|
-
|
-
|
|
2205
|
0.38~0.43
|
21~23
|
4.5~6.5
|
2.5~3.5
|
-
|
|
2507
|
≤0.03
|
24.0~26.0
|
6.00~8.00
|
3.0~5.0
|
-
|
Surface Finish
|
Surface finish
|
Characteristics & Application
|
|
NO.1
|
Hot-rolled surface, annealed and pickled, can be used as cold-rolling material,industial tanks and chem i cal devices.
|
|
NO.2D
|
Cold-rolled, an nealed and pick led with out skinpassing the dull prod ucts can be used as auto mo bile parts, build ing materrials and pipings.
|
|
NO.2B
|
The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its mechamical properties, N02B could nearly satisfy com pre hen sive uses.
|
|
NO.3
|
Polished with abra sive belt of grit #100#120,have bet ter bright ness with dis con tin u ous coarse stria, used as in ner and ex ter nal or na ments for building, elec tri cal ap pli anc es and kitchen uten sils etc.
|
|
NO.4
|
Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc.
|
|
HL
|
Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc.
|
|
BA
|
Cold rolled, bright an nealed and skin passed, the prod uct has ex cel lent bright ness and good re flex iv i ty like mirror, used for lectrical appliances, mirror, kitch en apparatus, or na ment ma te ri als etc.
|
Product Applications
Good weldability and flame cutting, nonmagnetic. The shipbuilding industry, welded constructions.
Physical properties (average values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: Approx. 7.80
Solution Annealing
Harden from a temperature of 1000-1050oC followed by water quenching.
.

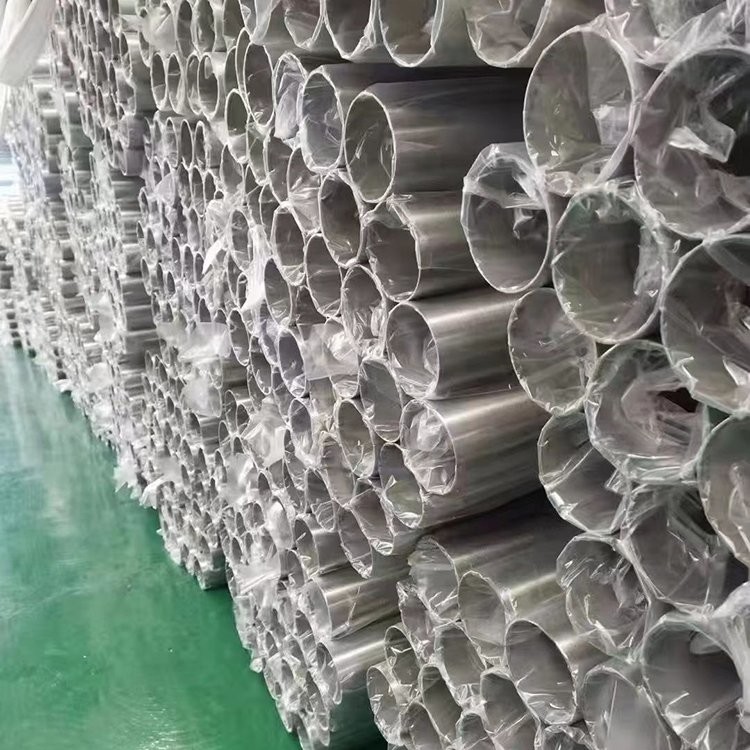

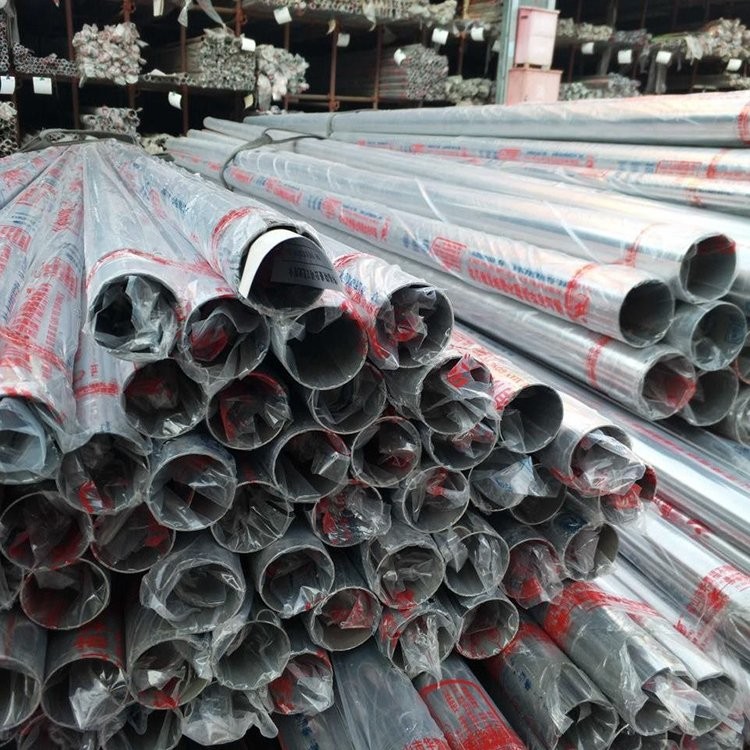

Product show
Manufacturing Technique
Certificate
Package and Delivery
|
Package
|
Standard export seaworthy package,suit for all kinds of transport, or as required.
|
|
Water-proof Paper + Edge protection + Wooden Pallets
|
|
|
Bulk Size
|
Any size
|
|
Loading Port
|
Tianjin, Xingang Port, Qingdao,Shanghai, Ningbo, or any China Seaport
|
|
Container
|
1*20ft container load Max. 25 Ton, Max. length 5.8m
|
|
1*40ft container load Max. 25 Ton, Max. Length 11.8m
|
|
|
Delivery Time
|
7-15 days or according to the order's quantity
|
Duplex Stainless Steel Pipes and Tubes Applications
The Duplex Stainless Steel Pipes and Tubes are used in the following applications:-
- Chemical Processing, Transport, and Storage
- Oil and Gas Exploration and Offshore Rigs
- Mil and Gas Refining
- Marine Environments
- Pollution Control Equipment
- Pulp & Paper Manufacturing
- Chemical Process Plant
FAQ
Q. Are you a factory or trading company?
A. We are a factory company.
Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q. How many countries have you already exported?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q. How do you resolve the problem with your products?
A. Person of aging services: For customer complaints commissioner set up special complaint handling, complaint issues recorded the the first time, and find the relevant person in charge of the feedback and resolution. Details check our "Quality corrective action report"
Q. How long do you need the delivery time?
1)Supply within 5-10days (product in our stock list)
2)Custom products need to be calculated according to the quantity
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q.How can we get your price?
A. We need the below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
