AH32 AH36 Shipbuilding Steel Plate 1500mm 3900mm Grade A B D

Place of Origin	China
Brand Name	HNJBL
Certification	ISO9001, ISO ,BV
Model Number	AH32
Minimum Order Quantity	1
Price	Negotiate
Packaging Details	Standard packing for shipping
Delivery Time	15-25 working days
Payment Terms	L/C, T/T
Supply Ability	50000 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	High Quality Steel Sheet Black Iron Sheet Metal Shipbuilding Steel Plate	Thickness Range	5 Mm -150 Mm
Width Range	1500 Mm - 3900 Mm	Shape	Flat Steel Plate
Application	Ship/container/flange/construction	Length	Customer Requirement
Packing	Standard Seaworthy Packing
Highlight	AH32 AH36 Shipbuilding Steel Plate , Shipbuilding Steel Plate 1500mm , Black Steel Sheet 1500mm

Leave a Message

Product Description

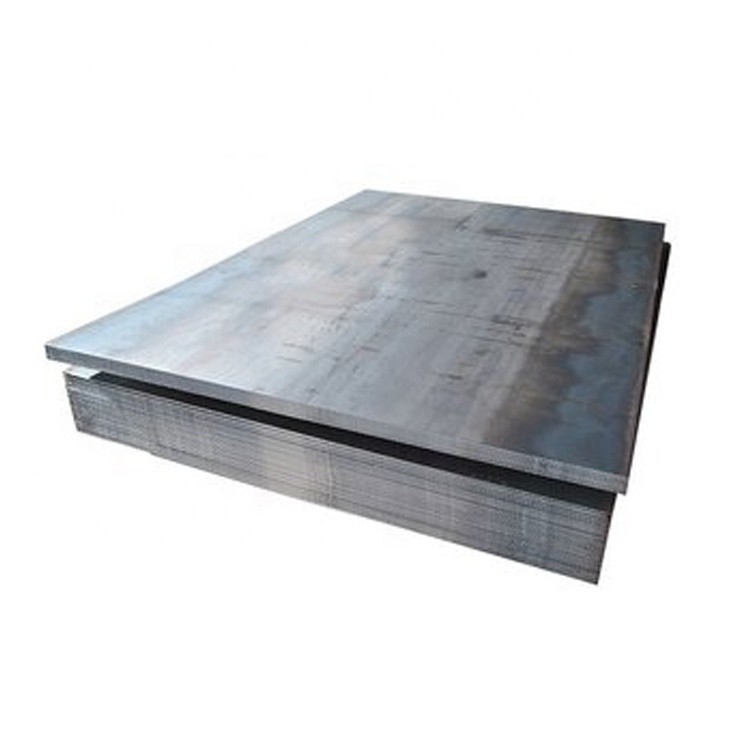

High Quality Steel Sheet Black Iron Sheet Metal Shipbuilding Steel Plate

Shipbuilding steel plate refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society. Often used as a special steel ordering, scheduling, sales, a ship including ship plates, steel, and so on.

The quality of shipbuilding steels has an extremely large impact on the quality, efficiency, and cost of ships built from those steels. Many steel producers established a system to supply wide and long plates to the shipbuilding industry.

Product Name	Shipbuilding AH32 AH36 Steel Plate / Shipbuilding AH32 AH36 Steel sheet
Material	Carbon Steel
Standard	ABS/NKK/BV/DNVGL grade A/B/D/E/, CCS, DNV, GL, ABS, LR, BV, etc
Grade	Grade A/B/D/E/ AH32/AH36/DH32/DH36/EH32/EH36 Q345CDE/Q390CDE/Q420CDE/Q460CDE Q550CDE/Q690CDE Q345CDE-Z15/Z25/Z35
Shape	flat plate, Angle Bar, Unequal Angle Steel,
Size	Thickness: 6mm-650mm Width: 1500mm-4020mm Length: 3000mm-18800mm
Payment terms	T/T,L/C,western union, Paypal
Price terms	CFR,FOB,CIF,Ex-work,CNF
Application	Shipbuilding Steel Plate Grade A steel plate is used for shipbuiling's hull structure and platform. The shipbuilding steel plate grade A is the common tensile strength steel. It has good toughness properties and higher strength, strong corrosion-resistance,the processing properties,and welding properties. ASTM A131 Grade A steel plate can be used in the manufacture of the ship's hull structure whose weight is below 10000 tons,and usually do navigation around coastal and river area.
Package	Standard export seaworthy package or as required.
Contact	If you have any question,please feel free to contact me.

AH32 AH36 Shipbuilding Steel Plate 1500mm 3900mm Grade A B D 0

Chemical and Mechanical Requirements

Elements	C	Mn	Al	Si	P	S
AH32	≤0.18	0.7~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
DH32	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
EH32	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
AH36	≤0.18	0.7~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
DH36	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
EH36	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04

Shipbuiding Standards from Different Countries

Shipbuilding steel plates are produced under the approval of production methods of classification societies in different countries refers to offshore and marine steels.

ABS (American Bureau of Shipping)
BV (Bureau Veritas)
CCS (China Classification Society)
DNV (Det Norske Veritas)
GL (Germanischer Lloyd)
HR (Hellenic Register of Shipping)
KR (Korean Register of Shipping)
LR (Lloyd's Register of Shipping)
NK (Nippon Kaiji Kyokai)
RINA (Registro Italiano Navale)
RS (India Register of Shipping)

Mechanical Properties
Steel Grade	Thickness/mm	Yield point/ MPa	Tensile strength/ MPa	Elongation/ %	V-type impact test
					Temperature/ ℃	Average impact absorption workA_kv/J
					Temperature/ ℃	Vertical	Horizontal
A	≤50	≥235	400~490	≥22	-	-	-
B	≤50	≥235	400~490	≥22	0	≥27	≥20
D	≤50	≥235	400~490	≥22	-10	≥27	≥20
E	≤50	≥235	400~490	≥22	-40	≥27	≥20
AH32	≤50	≥315	440~590	≥22	0	≥31	≥22
DH32	≤50	≥315	440~590	≥22	-20	≥31	≥22
EH32	≤50	≥315	440~590	≥22	-40	≥31	≥22
AH36	≤50	≥355	490~620	≥22	0	≥34	≥24
DH36	≤50	≥355	490~620	≥22	-20	≥34	≥24
EH36	≤50	≥355	490~620	≥22	-40	≥34	≥24

Product Advantages

AH32 AH36 Shipbuilding Steel Plate 1500mm 3900mm Grade A B D 1

PRODUCT APPLICATION

AH32 AH36 Shipbuilding Steel Plate 1500mm 3900mm Grade A B D 2

PRODCTION PROCESS

AH32 AH36 Shipbuilding Steel Plate 1500mm 3900mm Grade A B D 3

Our team

*Reply your inquiry within 24 hours

*Customized design is available,Third Party Inspection is welcomed

*Delivery the goods to our customer all over the world with speed and precision

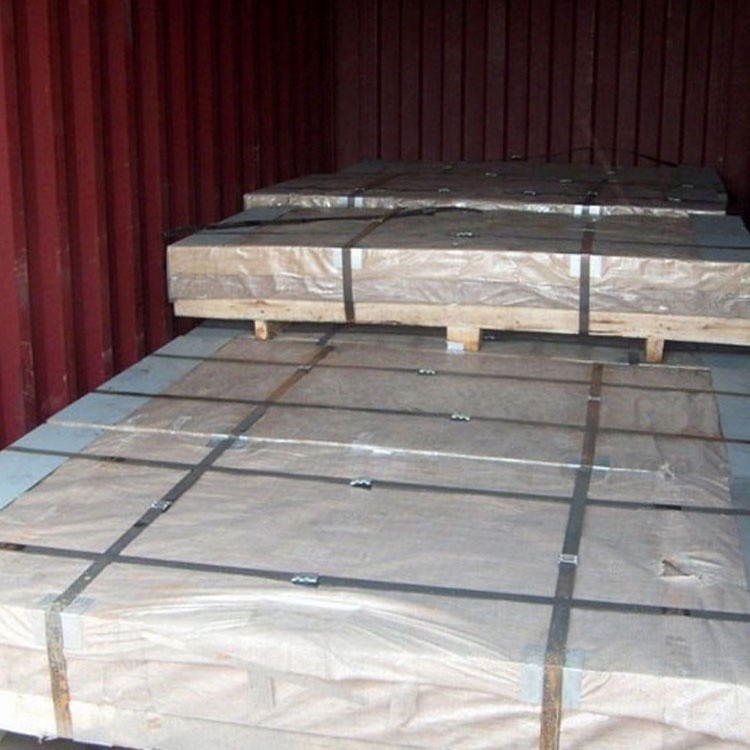

Packaging and Loading

1 Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.

FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel, and our company also is a very professional and technical foreign trade company for steel products.We have more export experience with competitive price and best after-sales service.Apart from this,we can provide a wide range of steel products to meet the requirement of customer.

Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.

Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the freight will be covered by customer account.

Q: How can I get your quotation as soon as possible?
A: The email will be checked within 24 hours,meanwhile,the Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you have any certifications?

A: Yes,that’s what we guarantee to our clients. we have ISO9000,ISO9001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.

Q: What is your terms of payment ?
A: Our payment terms is TT, LC or Western Union.

Q: Do you accept the third party inspection?

A: Yes absolutely we accept as well as Mill Test Certification is supplied with shipment.

Q: What are your company's main products ?

A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
