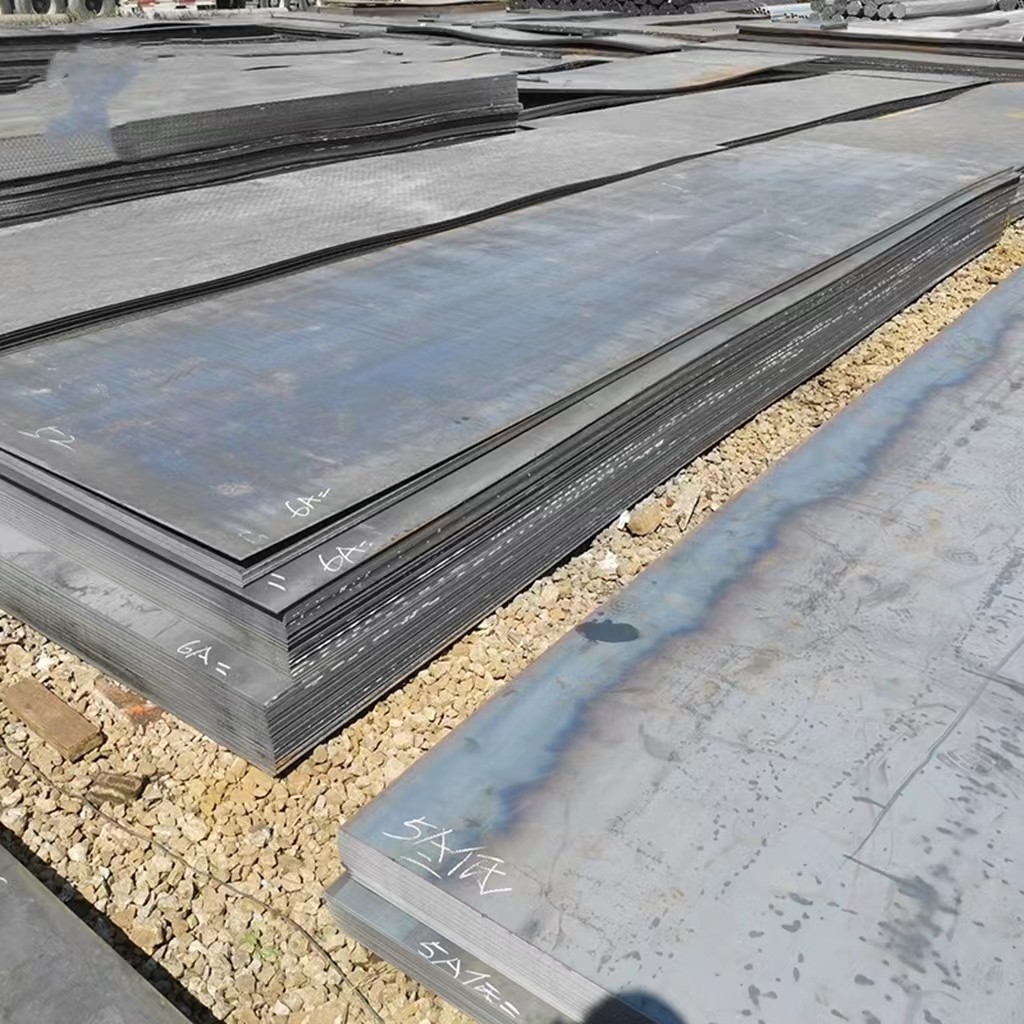

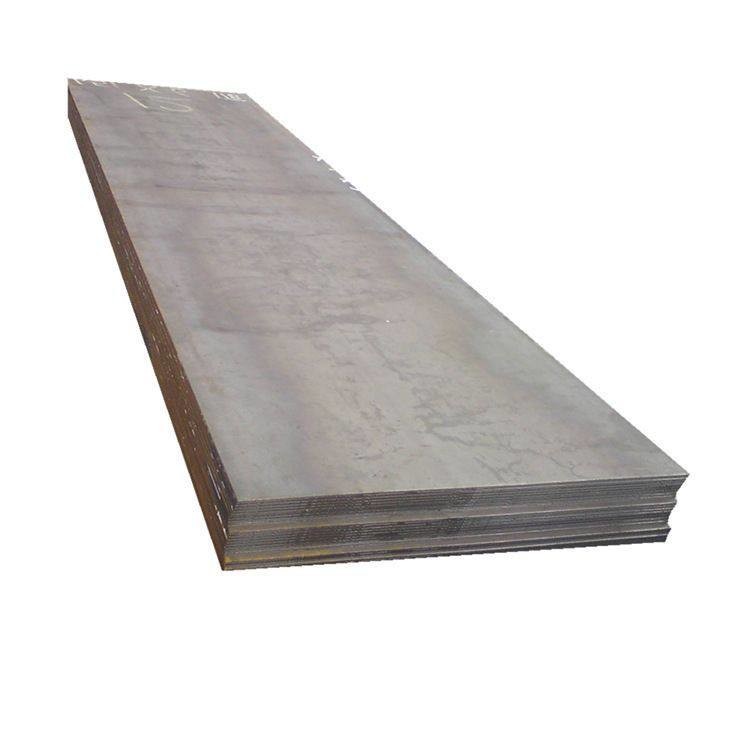

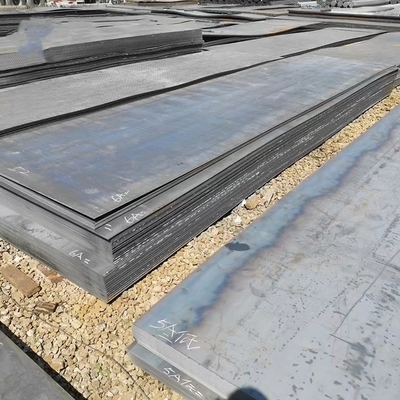

9mm 12mm Shipbuilding Steel Plate Black Surface AH36 Steel Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Shipbuilding Steel Plate | Thickness Range | 5 Mm -150 Mm |
|---|---|---|---|
| Width Range | 1500 Mm - 3900 Mm | Shape | Flat Steel Plate |
| Technology | Cold Rolled.hot Rolled | Length | Customer Requirement |
| Highlight | 9mm 12mm Shipbuilding Steel Plate,Black Surface AH36 Steel Plate,9mm 12mm AH32 Steel Plate |
||
Product Description
Shipbuilding AH32 AH36 Steel Plate / Shipbuilding AH32 AH36 Steel sheet
Before taking a deeper look at the properties and applications of specific offshore and marine plate grades, it is important to understand the key mechanical properties present in these grades:
Strength: The load a material can bear, measured by yield point and tensile strength. Yield point is the maximum point of stress at which a material will permanently change shape, and tensile strength is the point at which a bent material will break.
Toughness: The ability of a material to absorb impact without breaking.
Hardness: The wear-resistance ability of a material, usually measured by a Brinell test.
Machinability: How easily a material can be welded, bolted, drilled, or machined.
Each of these mechanical properties is crucial in ensuring primary offshore and marine steel plate grades are equipped for use in maritime applications.
1 Commodity: AH32,EH36 ship plate
2 Material: CCSA~CCSD,AH32,AH40,DH32 etc
3 Standard: CCS/BV/LR/ABS
4 Thickness: 3-300mm
5 Width: 2000- 3000mm
6 MOQ: 10 TON,with negotiation
7 Port: Tianjin Shanghai Qingdao
8 Package: standard package or as your requirement
9 Delivery Time: within 15 days after receiving the deposite or as request
Chemical and Mechanical Requirements
|
Elements |
C |
Mn |
Al |
Si |
P |
S |
|---|---|---|---|---|---|---|
|
AH32 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
AH36 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
Shipbuiding Standards from Different Countries
Shipbuilding steel plates are produced under the approval of production methods of classification societies in different countries refers to offshore and marine steels.
- ABS (American Bureau of Shipping)
- BV (Bureau Veritas)
- CCS (China Classification Society)
- DNV (Det Norske Veritas)
- GL (Germanischer Lloyd)
- HR (Hellenic Register of Shipping)
- KR (Korean Register of Shipping)
- LR (Lloyd's Register of Shipping)
- NK (Nippon Kaiji Kyokai)
- RINA (Registro Italiano Navale)
- RS (India Register of Shipping)
|
Mechanical Properties |
|||||||
|---|---|---|---|---|---|---|---|
|
Steel Grade |
Thickness/mm |
Yield point/ MPa |
Tensile strength/ MPa |
Elongation/ % |
V-type impact test |
||
|
Temperature/ ℃ |
Average impact absorption workAkv/J |
||||||
|
Vertical |
Horizontal |
||||||
|
A |
≤50 |
≥235 |
400~490 |
≥22 |
- |
- |
- |
|
B |
≤50 |
≥235 |
400~490 |
≥22 |
0 |
≥27 |
≥20 |
|
D |
≤50 |
≥235 |
400~490 |
≥22 |
-10 |
≥27 |
≥20 |
|
E |
≤50 |
≥235 |
400~490 |
≥22 |
-40 |
≥27 |
≥20 |
|
AH32 |
≤50 |
≥315 |
440~590 |
≥22 |
0 |
≥31 |
≥22 |
|
DH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-20 |
≥31 |
≥22 |
|
EH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-40 |
≥31 |
≥22 |
|
AH36 |
≤50 |
≥355 |
490~620 |
≥22 |
0 |
≥34 |
≥24 |
|
DH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-20 |
≥34 |
≥24 |
|
EH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-40 |
≥34 |
≥24 |
Product Advantages
PRODUCT APPLICATION
PRODCTION PROCESS
Our team
*Reply your inquiry within 24 hours
*Customized design is available,Third Party Inspection is welcomed
*Delivery the goods to our customer all over the world with speed and precision

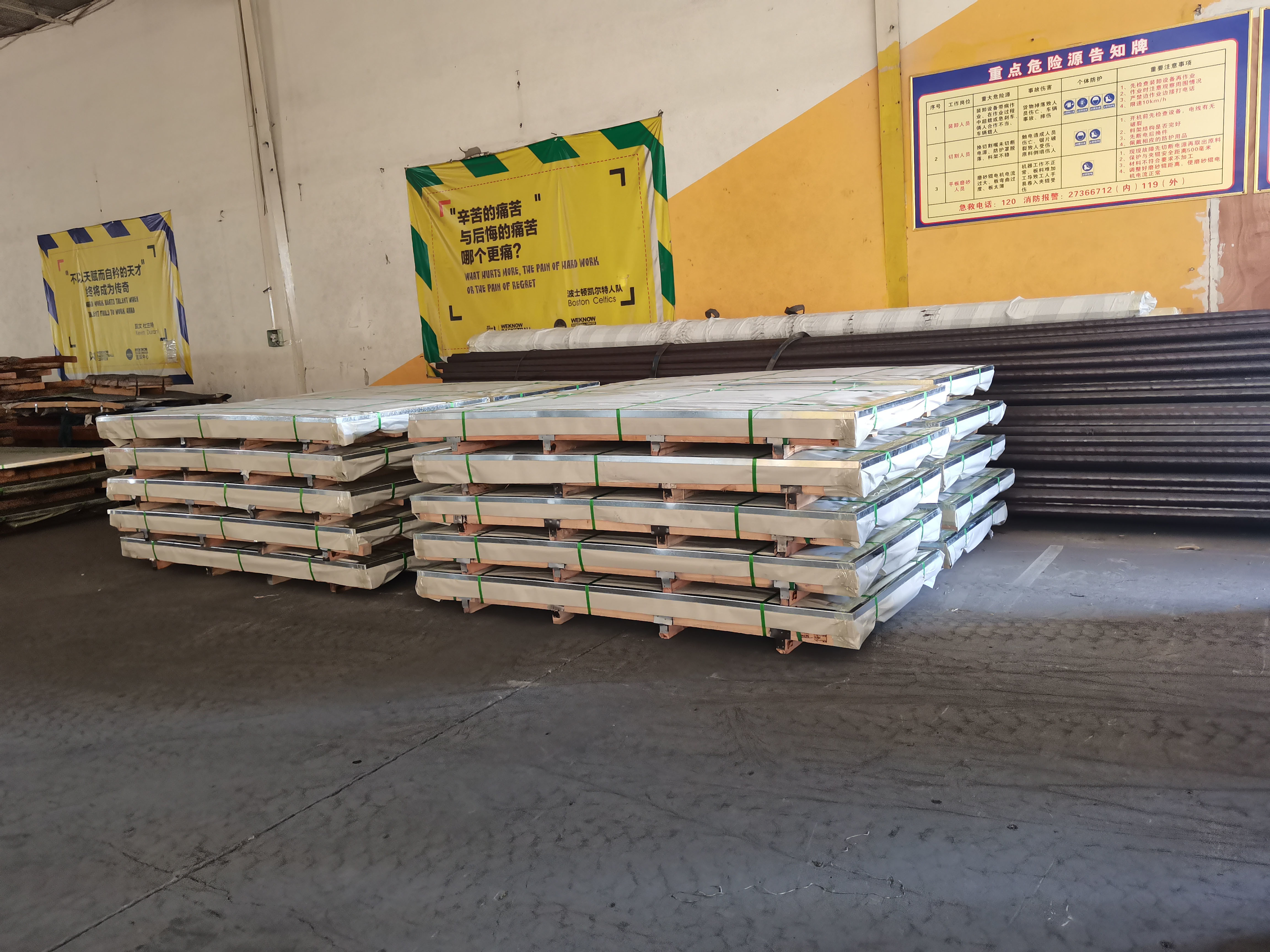

Packaging and Loading
1 Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.
FAQ
Q: How do you control the quality?
We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
Q: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q: Can you accept trail orders?
Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist. Surely we will have further and longer relationship after the beginning.
Q: Can you provide samples for checking before order?
A: Samples can be provided as you required.
