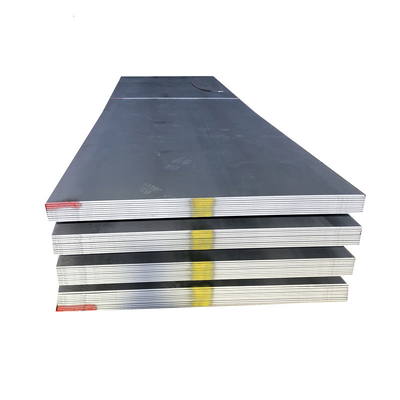

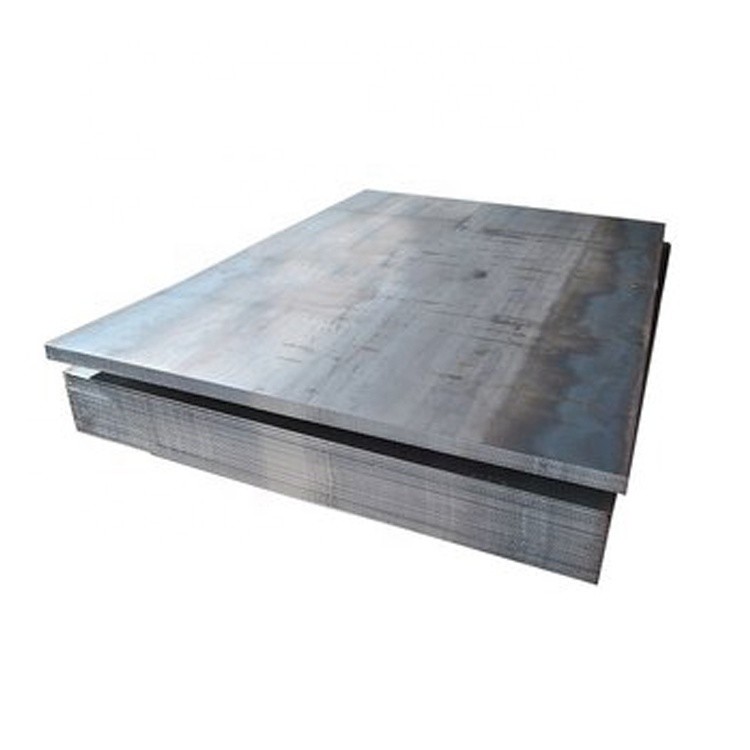

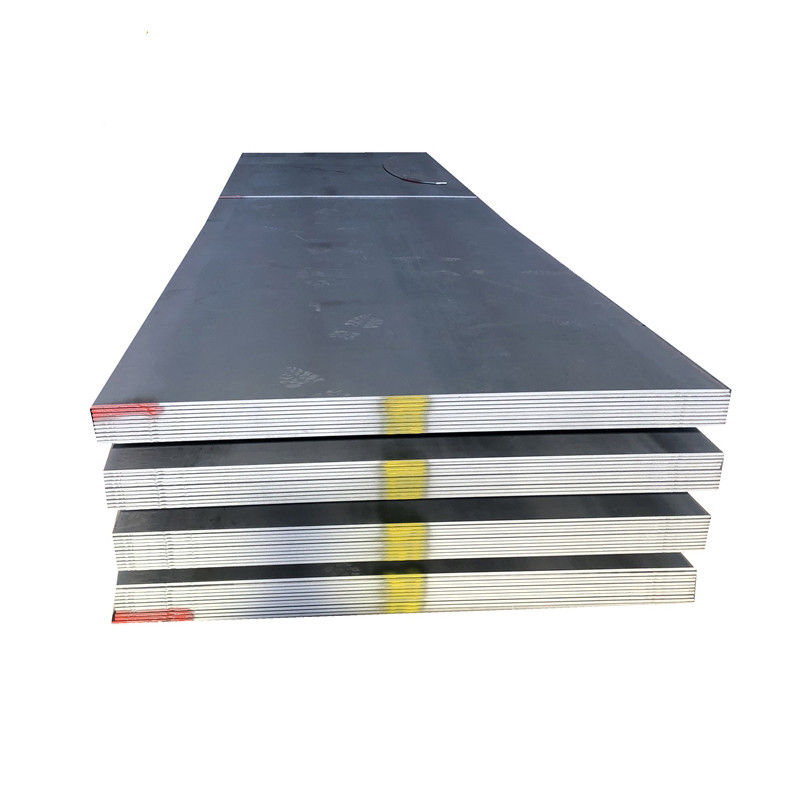

LR AH36 Structural Steel Plate 1500mm Width ASTM A131 Good Tensile Strength
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Shipbuilding Steel Plate | Grade | AH32/36/40 |
|---|---|---|---|
| Processing Service | Cutting, Bending,Welding, Punching, | Tolerance | ±0.5% |
| Use | Marine Steel | Thickness Range | 5 Mm -150 Mm |
| Width Range | 1500 Mm - 4000 Mm | Length Range | 6 M, 12 M, Coils |
| Highlight | LR AH36 Structural Steel Plate,Structural Steel Plate 1500mm,1500mm Width ASTM A131 Steel |
||
Product Description
LR AH36 Structural Steel Plate
What is the Shipbuilding Steel Plate?
The Shipbuilding Plate Ah36 comes under the specification of ASTM A131/A131M grade. These plates have a good impact strength and work well in different marine ecosystems. This lr shipbuilding steel plate is a high-strength grade that is usually hot rolled and possesses good tensile strength. These plates are divided into twelve grades. The shipbuilding steel plate lr grade a is the most common grade that has moderate corrosion resistance in the systems. These grades are subjected to an impact force of 20 degrees C. A grade a shipbuilding steel plate can be custom designed in a wide range of shapes and sizes as per product requirements. If you have any queries or questions or want to get a quote on these plates, contact us for more information.
Shipbuilding Steel Classification
The standard strength steel of China Classification Society is divided into four quality grades: A, B, C, and D, namely, CCSA, CCSB, CCSC, and CCSD. The high strength structural steel regulated by the China Classification Society is three strength grades and four quality grades.
Common grades are A, B, D, E, AH32/36/40, DH32/36/40, and EH32/36/40 which ranged from different strength. The plates usually used to manufacture ship hulls, bulkheads, upper decks and hatch covers for tankers, bulk carriers, container ships and LNG carriers.
For the high strength shipbuilding plates like AH36, DH36, EH36 steel plate, they have been widely used in high stress areas of ships, comparing with general strength steel, they are offering the same strength with the smaller thickness.
Shipbuiding Standards from Different Countries
Shipbuilding steel plates are produced according to the classification society,different countries refers to offshore and marine steels in different classification society. Mainly as following:
ABS (American Bureau of Shipping)
BV (Bureau Veritas)
CCS (China Classification Society)
DNV (Det Norske Veritas)
GL (Germanischer Lloyd)
HR (Hellenic Register of Shipping)
KR (Korean Register of Shipping)
LR (Lloyd's Register of Shipping)
NK (Nippon Kaiji Kyokai)
RINA (Registro Italiano Navale)
RS (India Register of Shipping)
What Is Thickness Of Shipbuilding Plate?
The thickness of Shipbuilding Plates ranges between 5 mm to 150 mm. It can be customized according to the specific requirements of the client.
|
Product Name
|
high strength steel plate Shipbuiding
|
|
Material
|
Carbon Steel/ Alloy Steel
|
|
Standard
|
CCS, DNV, GL, ABS, LR, BV, etc
|
|
Grade
|
Grade A/B/D/E/ AH32/AH36/DH32/DH36/EH32/EH36 Q550CDE/Q690CDE Q345CDE-Z15/Z25/Z35
|
|
Size |
Thickness: 6mm-650mm
Width: 1500mm-4020mm Length: 3000mm-18800mm |
|
Application
|
Used to manufacture the hull and deck of ocean-going, coastal and inland shipping ships.
|
|
Payment terms
|
T/T,L/C,Western union, Paypal
|
|
Price terms
|
CFR,FOB,CIF,EXW
|
|
Package
|
Standard export seaworthy package or as required.
|
Chemical and Mechanical Requirements
|
Elements |
C |
Mn |
Al |
Si |
P |
S |
|---|---|---|---|---|---|---|
|
AH32 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
AH36 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
Shipbuiding Standards from Different Countries
Shipbuilding steel plates are produced under the approval of production methods of classification societies in different countries refers to offshore and marine steels.
- ABS (American Bureau of Shipping)
- BV (Bureau Veritas)
- CCS (China Classification Society)
- DNV (Det Norske Veritas)
- GL (Germanischer Lloyd)
- HR (Hellenic Register of Shipping)
- KR (Korean Register of Shipping)
- LR (Lloyd's Register of Shipping)
- NK (Nippon Kaiji Kyokai)
- RINA (Registro Italiano Navale)
- RS (India Register of Shipping)
|
Mechanical Properties |
|||||||
|---|---|---|---|---|---|---|---|
|
Steel Grade |
Thickness/mm |
Yield point/ MPa |
Tensile strength/ MPa |
Elongation/ % |
V-type impact test |
||
|
Temperature/ ℃ |
Average impact absorption workAkv/J |
||||||
|
Vertical |
Horizontal |
||||||
|
A |
≤50 |
≥235 |
400~490 |
≥22 |
- |
- |
- |
|
B |
≤50 |
≥235 |
400~490 |
≥22 |
0 |
≥27 |
≥20 |
|
D |
≤50 |
≥235 |
400~490 |
≥22 |
-10 |
≥27 |
≥20 |
|
E |
≤50 |
≥235 |
400~490 |
≥22 |
-40 |
≥27 |
≥20 |
|
AH32 |
≤50 |
≥315 |
440~590 |
≥22 |
0 |
≥31 |
≥22 |
|
DH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-20 |
≥31 |
≥22 |
|
EH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-40 |
≥31 |
≥22 |
|
AH36 |
≤50 |
≥355 |
490~620 |
≥22 |
0 |
≥34 |
≥24 |
|
DH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-20 |
≥34 |
≥24 |
|
EH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-40 |
≥34 |
≥24 |
Product Advantages
PRODUCT APPLICATION
PRODCTION PROCESS
FAQ
Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
Q: How is your Payment Term?
A:We prefer TT or L/C
Q: Can you provide sample?
A: Yes, for regular size of samples, it's for free but buyer need to pay freight cost.
Q:Surface coating?
A:Antirusted painting, varnish painting, galvanized, 3LPE, 3PP,Zinc oxide yellow primer,Zinc phosphate primer and as per
customers' request.
Q:Why choose our company?
A:(1)We are specialized in this industry for more than 20 years
(2) We are the gold supplier on Alibaba com
Q: What's the MOQ?
A: 25Tons is ok
Q: What's your delivery time?
A:Regular lead time is 15 to 30 days after receiving deposit
