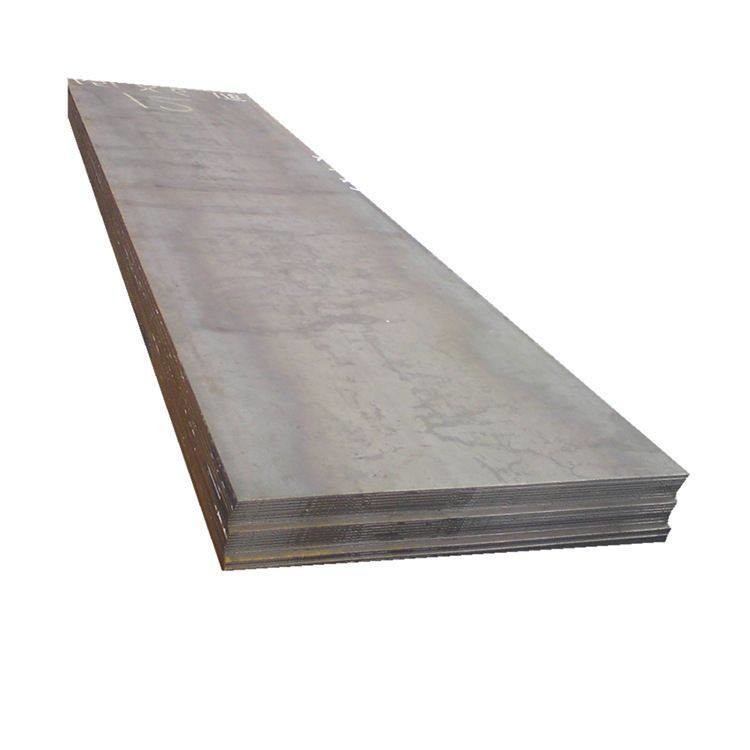

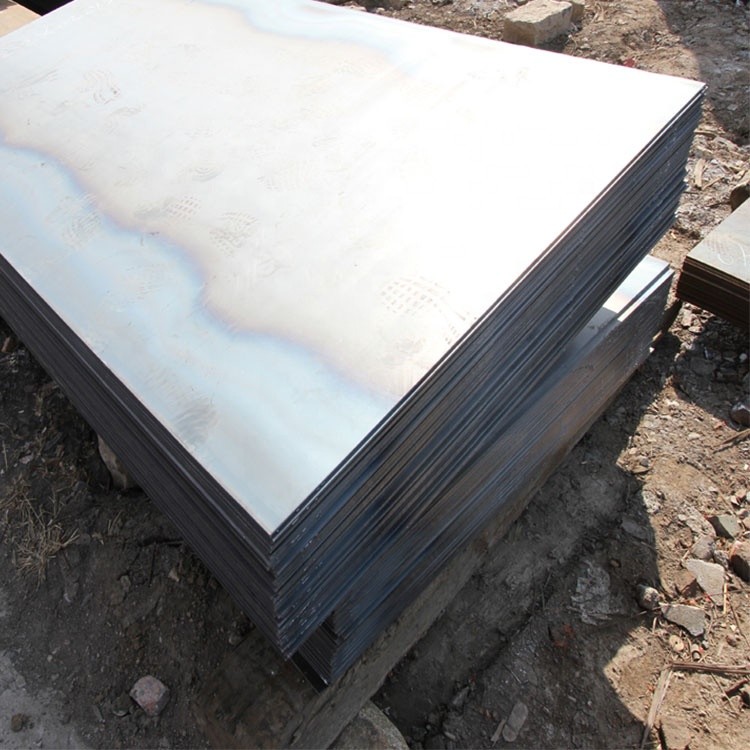

AH36 Shipbuilding Steel Plate 6m High Strength Structural Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Shipbuilding Steel Plate | Grade | AH36 |
|---|---|---|---|
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling | Tolerance | ±1% |
| Use | Marine | Thickness Range | 5 Mm -150 Mm |
| Width Range | 1200 Mm - 3900 Mm | Length Range | 6 M, 12 M, Coils |
| Highlight | AH36 Shipbuilding Steel Plate,Shipbuilding Steel Plate 6m,6m High Strength Structural Steel |
||
Product Description
AH36 Shipbuilding Steel Plate
What is the Shipbuilding Steel Plate?
Shipbuilding steel plate refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society. Modern shipbuilding plates have much higher tensile strengths than their predecessors, making them much better suited to the efficient construction of large container ships.
The quality of shipbuilding steels has an extremely large impact on the quality, efficiency, and cost of ships built from those steels. Many steel producers established a system to supply wide and long plates to the shipbuilding industry.
Shipbuilding Steel Classification
The standard strength steel of China Classification Society is divided into four quality grades: A, B, C, and D, namely, CCSA, CCSB, CCSC, and CCSD. The high strength structural steel regulated by the China Classification Society is three strength grades and four quality grades.
Common grades are A, B, D, E, AH32/36/40, DH32/36/40, and EH32/36/40 which ranged in different strengths. The plates are usually used to manufacture ship hulls, bulkheads, upper decks and hatch covers for tankers, bulk carriers, container ships and LNG carriers.
For the high strength shipbuilding plates like AH36, DH36, EH36 steel plates, they have been widely used in high-stress areas of ships, comparing with general strength steel, they are offering the same strength with a smaller thickness.
Shipbuilding Standards from Different Countries
Shipbuilding steel plates are produced according to the classification society,different countries refers to offshore and marine steels in different classification society. Mainly as follows:
ABS (American Bureau of Shipping)
BV (Bureau Veritas)
CCS (China Classification Society)
DNV (Det Norske Veritas)
GL (Germanischer Lloyd)
HR (Hellenic Register of Shipping)
KR (Korean Register of Shipping)
LR (Lloyd's Register of Shipping)
NK (Nippon Kaiji Kyokai)
RINA (Registro Italiano Navale)
RS (India Register of Shipping)
|
Product Name
|
high strength steel plate Shipbuiding
|
|
Material
|
Carbon Steel/ Alloy Steel
|
|
Standard
|
CCS, DNV, GL, ABS, LR, BV, etc
|
|
Grade
|
Grade A/B/D/E/ AH32/AH36/DH32/DH36/EH32/EH36 Q550CDE/Q690CDE Q345CDE-Z15/Z25/Z35
|
|
Size |
Thickness: 6mm-650mm
Width: 1500mm-4020mm Length: 3000mm-18800mm |
|
Application
|
Used to manufacture the hull and deck of ocean-going, coastal and inland shipping ships.
|
|
Payment terms
|
T/T,L/C,Western union, Paypal
|
|
Price terms
|
CFR,FOB,CIF,EXW
|
|
Package
|
Standard export seaworthy package or as required.
|
Chemical and Mechanical Requirements
|
Elements |
C |
Mn |
Al |
Si |
P |
S |
|---|---|---|---|---|---|---|
|
AH32 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH32 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
AH36 |
≤0.18 |
0.7~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
DH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
|
EH36 |
≤0.18 |
0.90~1.60 |
≥0.015 |
0.10~0.50 |
≤0.04 |
≤0.04 |
Shipbuiding Standards from Different Countries
Shipbuilding steel plates are produced under the approval of production methods of classification societies in different countries refers to offshore and marine steels.
- ABS (American Bureau of Shipping)
- BV (Bureau Veritas)
- CCS (China Classification Society)
- DNV (Det Norske Veritas)
- GL (Germanischer Lloyd)
- HR (Hellenic Register of Shipping)
- KR (Korean Register of Shipping)
- LR (Lloyd's Register of Shipping)
- NK (Nippon Kaiji Kyokai)
- RINA (Registro Italiano Navale)
- RS (India Register of Shipping)
|
Mechanical Properties |
|||||||
|---|---|---|---|---|---|---|---|
|
Steel Grade |
Thickness/mm |
Yield point/ MPa |
Tensile strength/ MPa |
Elongation/ % |
V-type impact test |
||
|
Temperature/ ℃ |
Average impact absorption workAkv/J |
||||||
|
Vertical |
Horizontal |
||||||
|
A |
≤50 |
≥235 |
400~490 |
≥22 |
- |
- |
- |
|
B |
≤50 |
≥235 |
400~490 |
≥22 |
0 |
≥27 |
≥20 |
|
D |
≤50 |
≥235 |
400~490 |
≥22 |
-10 |
≥27 |
≥20 |
|
E |
≤50 |
≥235 |
400~490 |
≥22 |
-40 |
≥27 |
≥20 |
|
AH32 |
≤50 |
≥315 |
440~590 |
≥22 |
0 |
≥31 |
≥22 |
|
DH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-20 |
≥31 |
≥22 |
|
EH32 |
≤50 |
≥315 |
440~590 |
≥22 |
-40 |
≥31 |
≥22 |
|
AH36 |
≤50 |
≥355 |
490~620 |
≥22 |
0 |
≥34 |
≥24 |
|
DH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-20 |
≥34 |
≥24 |
|
EH36 |
≤50 |
≥355 |
490~620 |
≥22 |
-40 |
≥34 |
≥24 |
Product Advantages
PRODUCT APPLICATION
PRODCTION PROCESS
CERTIFICATE
FAQ
Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
Q: How is your Payment Term?
A:We prefer TT or L/C
Q: Can you provide sample?
A: Yes, for regular size of samples, it's for free but buyer need to pay freight cost.
Q:Surface coating?
A:Antirusted painting, varnish painting, galvanized, 3LPE, 3PP,Zinc oxide yellow primer,Zinc phosphate primer and as per
customers' request.
Q:Why choose our company?
A:(1)We are specialized in this industry for more than 20 years
(2) We are the gold supplier on Alibaba com
Q: What's the MOQ?
A: 25Tons is ok
Q: What's your delivery time?
A:Regular lead time is 15 to 30 days after receiving deposit
