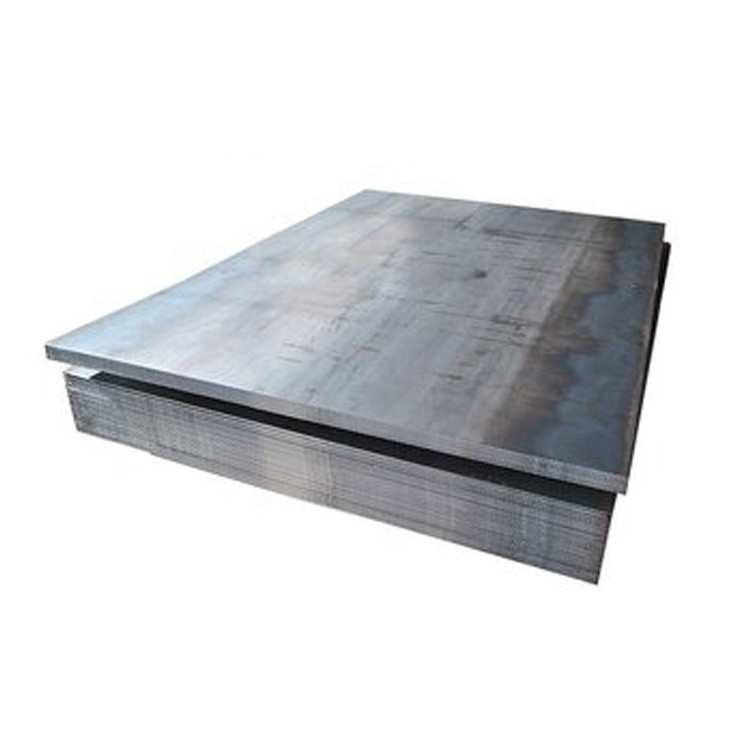

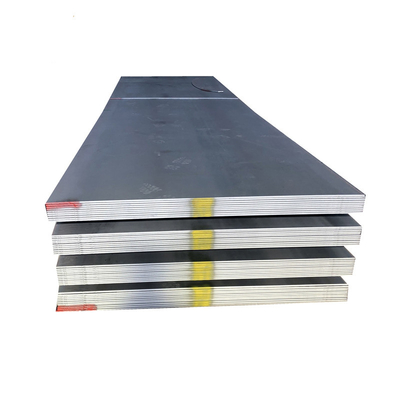

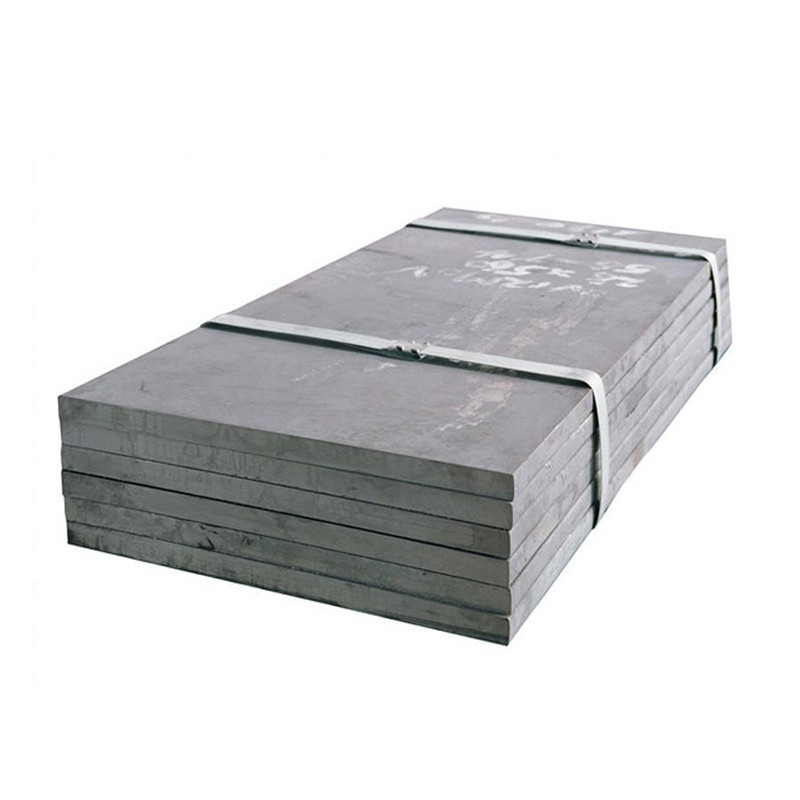

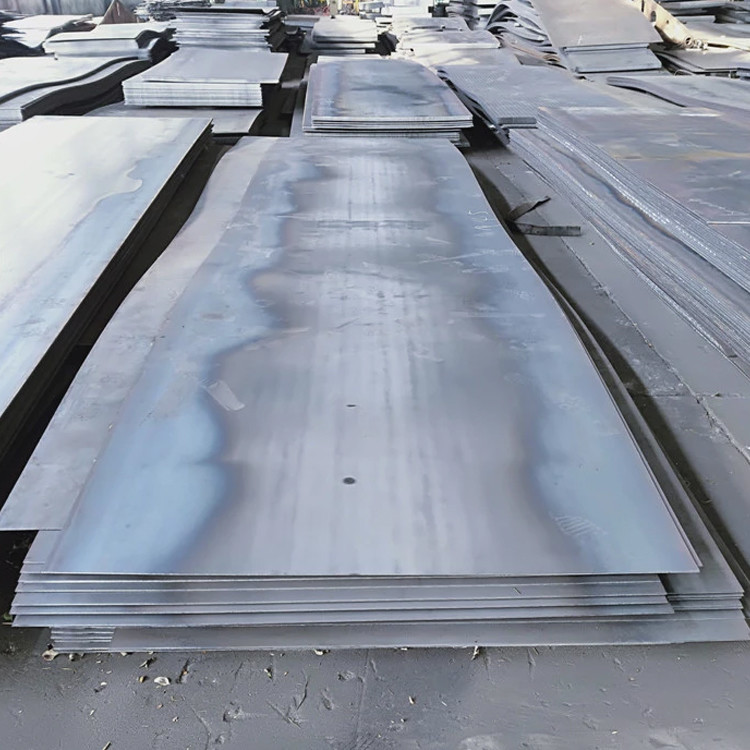

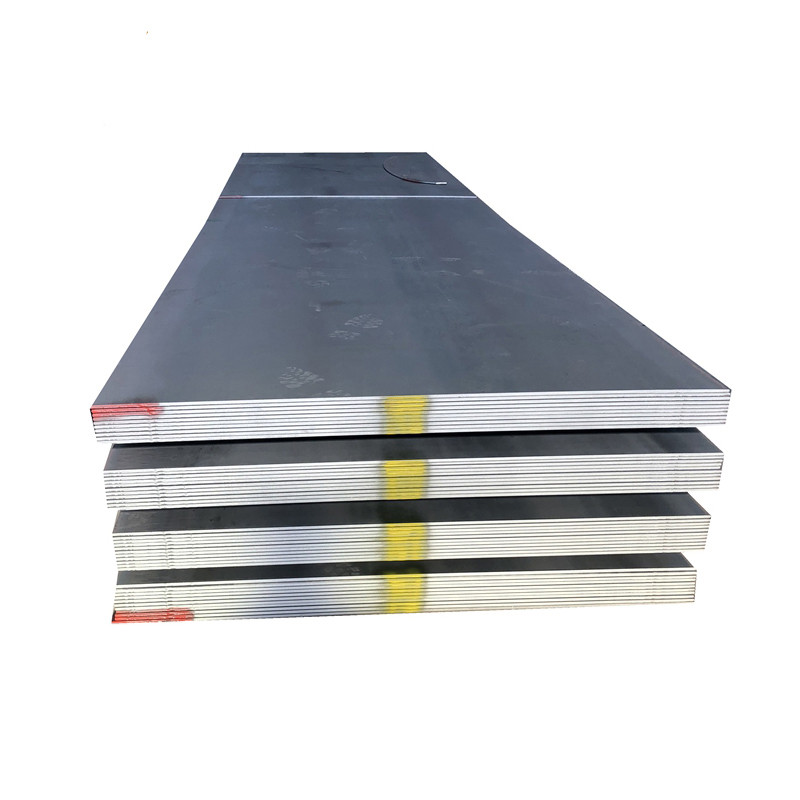

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32

Place of Origin	China
Brand Name	HNJBL
Certification	ISO9001, ISO ,BV
Model Number	AH32
Minimum Order Quantity	1
Price	Negotiate
Packaging Details	Standard packing for shipping
Delivery Time	15-25 working days
Payment Terms	L/C, T/T
Supply Ability	50000 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Ship Plate, Boiler Plate, Container Plate, Making Pipes,	Grade	A, B, D, E, AH32/36/40, DH32/36/40, And EH32/36/40
Processing Service	Welding, Punching, Cutting, Bending, Decoiling	Tolerance	±1%
Use	Common Use High Strength Steel In Offshore & Marine	Thickness Range	5 Mm -150 Mm
Width Range	1500 Mm - 3900 Mm	Length Range	6 M, 12 M, Coils
Highlight	ISO9001 Shipbuilding Steel Plate , Shipbuilding Steel Plate 1% Tolerance , High Strength Steel Sheet DH32 DH36

Leave a Message

Product Description

SHIPBUILDING STEEL PLATE EX-STOCK
EH36 and DH36 and AH36 High strength shipbuilding steels and Grade A normal strength plates available
Mill is Dillinger Hutte so steel produced in Germany and rolled in either Germany or France (G7 Origin).
MTC’s to EN10204 3.2
Thickness 5 – 150 mm
Widths – 1500, 2000, 2055, 2500 and 3000 metres
Lengths: 6m, 12m and 14m

Product Name	high strength steel plate Shipbuiding
Material	Carbon Steel/ Alloy Steel
Standard	CCS, DNV, GL, ABS, LR, BV, etc
Grade	Grade A/B/D/E/ AH32/AH36/DH32/DH36/EH32/EH36 Q345CDE/Q390CDE/Q420CDE/Q460CDE Q550CDE/Q690CDE Q345CDE-Z15/Z25/Z35
Size	Thickness: 6mm-650mm Width: 1500mm-4020mm Length: 3000mm-18800mm
Application	Used to manufacture the hull and deck of ocean-going, coastal and inland shipping ships.
Payment terms	T/T,L/C,Western union, Paypal
Price terms	CFR,FOB,CIF,EXW
Package	Standard export seaworthy package or as required.

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32 0

Chemical and Mechanical Requirements

Elements	C	Mn	Al	Si	P	S
AH32	≤0.18	0.7~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
DH32	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
EH32	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
AH36	≤0.18	0.7~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
DH36	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04
EH36	≤0.18	0.90~1.60	≥0.015	0.10~0.50	≤0.04	≤0.04

Shipbuiding Standards from Different Countries

Shipbuilding steel plates are produced under the approval of production methods of classification societies in different countries refers to offshore and marine steels.

ABS (American Bureau of Shipping)
BV (Bureau Veritas)
CCS (China Classification Society)
DNV (Det Norske Veritas)
GL (Germanischer Lloyd)
HR (Hellenic Register of Shipping)
KR (Korean Register of Shipping)
LR (Lloyd's Register of Shipping)
NK (Nippon Kaiji Kyokai)
RINA (Registro Italiano Navale)
RS (India Register of Shipping)

Mechanical Properties
Steel Grade	Thickness/mm	Yield point/ MPa	Tensile strength/ MPa	Elongation/ %	V-type impact test
					Temperature/ ℃	Average impact absorption workA_kv/J
					Temperature/ ℃	Vertical	Horizontal
A	≤50	≥235	400~490	≥22	-	-	-
B	≤50	≥235	400~490	≥22	0	≥27	≥20
D	≤50	≥235	400~490	≥22	-10	≥27	≥20
E	≤50	≥235	400~490	≥22	-40	≥27	≥20
AH32	≤50	≥315	440~590	≥22	0	≥31	≥22
DH32	≤50	≥315	440~590	≥22	-20	≥31	≥22
EH32	≤50	≥315	440~590	≥22	-40	≥31	≥22
AH36	≤50	≥355	490~620	≥22	0	≥34	≥24
DH36	≤50	≥355	490~620	≥22	-20	≥34	≥24
EH36	≤50	≥355	490~620	≥22	-40	≥34	≥24

Product Advantages

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32 1

PRODUCT APPLICATION

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32 2

COMPANY INTRODUCTION

Henan Jinbailai Industrial Co.,LTD is a professional manufacturer dedicated to manufacturing high-quality steel pipes.Located in Henan Province, it mainly produces steel pipe, stainless steel, galvanized sheet, aluminum sheet and other metal materials. The company adheres to the concept of "people-oriented, dedicated and innovative" and always attaches importance to the introduction and training of talents. The company has a strong technical force, the technical staff have undergone strict training and assessment, the work is rigorous and conscientious, and the testing equipment is complete to ensure the quality of the products.

PRODCTION PROCESS

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32 3

CERTIFICATE

ISO9001 Shipbuilding Steel Plate 1% Tolerance DH32 DH36 EH32 4

FAQ

Q: Can we visit your factory?

A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.

Q: Can provide OEM/ODM service?

A: Yes. Please feel free to contact us for more details discuss.

Q: How is your Payment Term?

A:We prefer TT or L/C

Q: Can you provide sample?

A: Yes, for regular size of samples, it's for free but buyer need to pay freight cost.

Q:Surface coating?

A:Antirusted painting, varnish painting, galvanized, 3LPE, 3PP,Zinc oxide yellow primer,Zinc phosphate primer and as per
customers' request.

Q:Why choose our company?

A:(1)We are specialized in this industry for more than 20 years

(2) We are the gold supplier on Alibaba com

Q: What's the MOQ?

A: 25Tons is ok

Q: What's your delivery time?

A:Regular lead time is 15 to 30 days after receiving deposit
