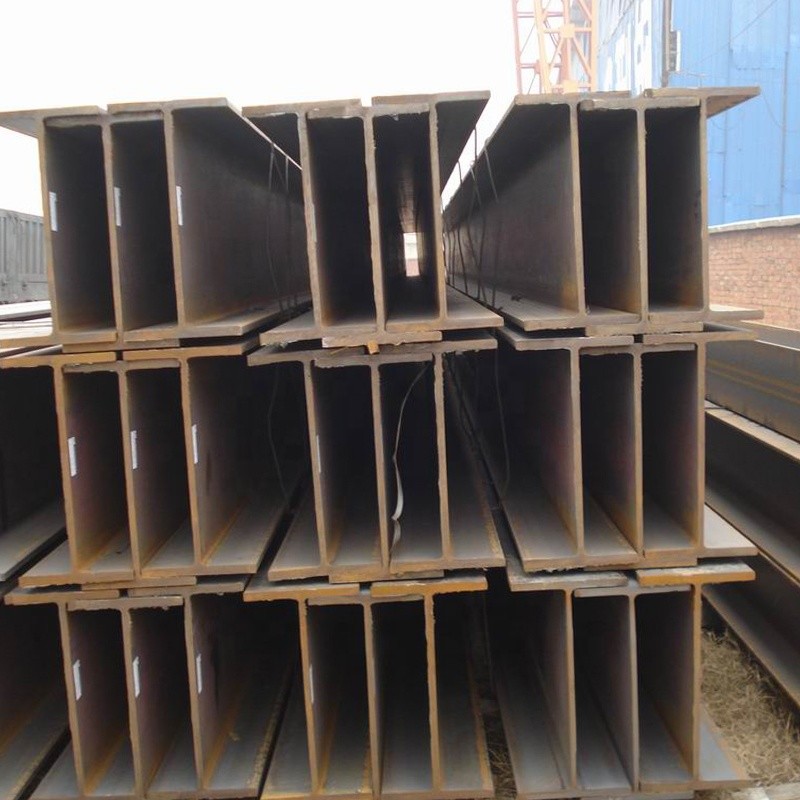

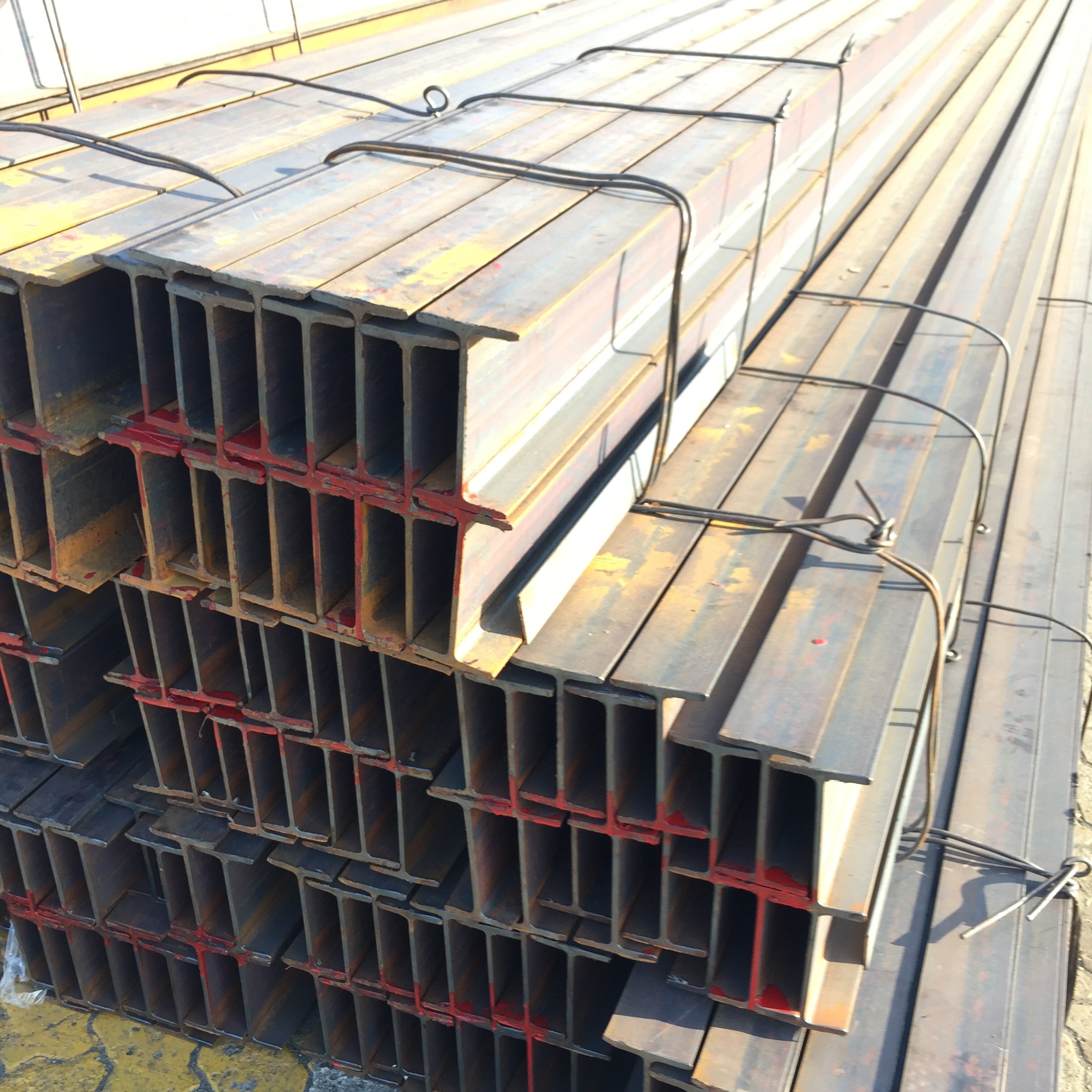

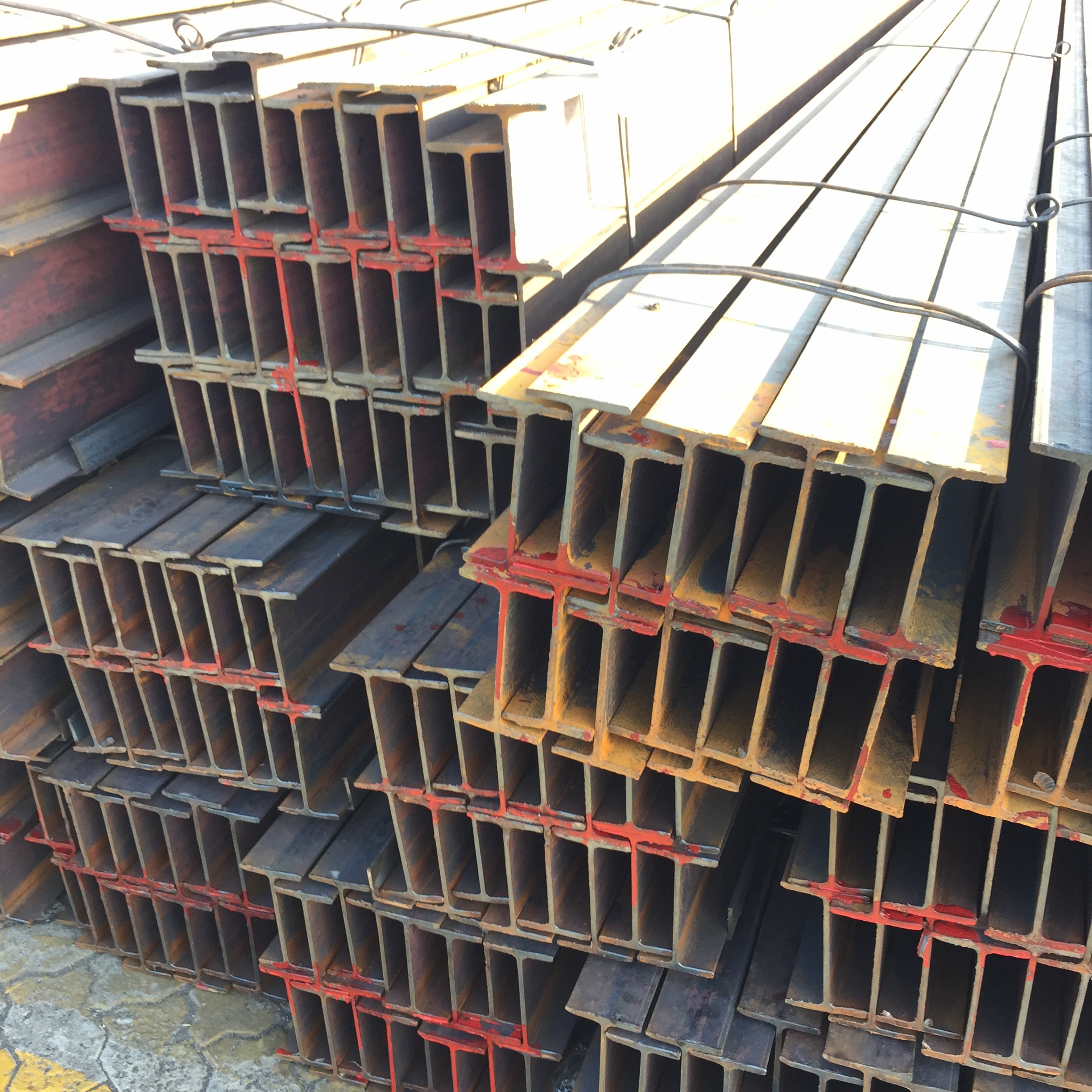

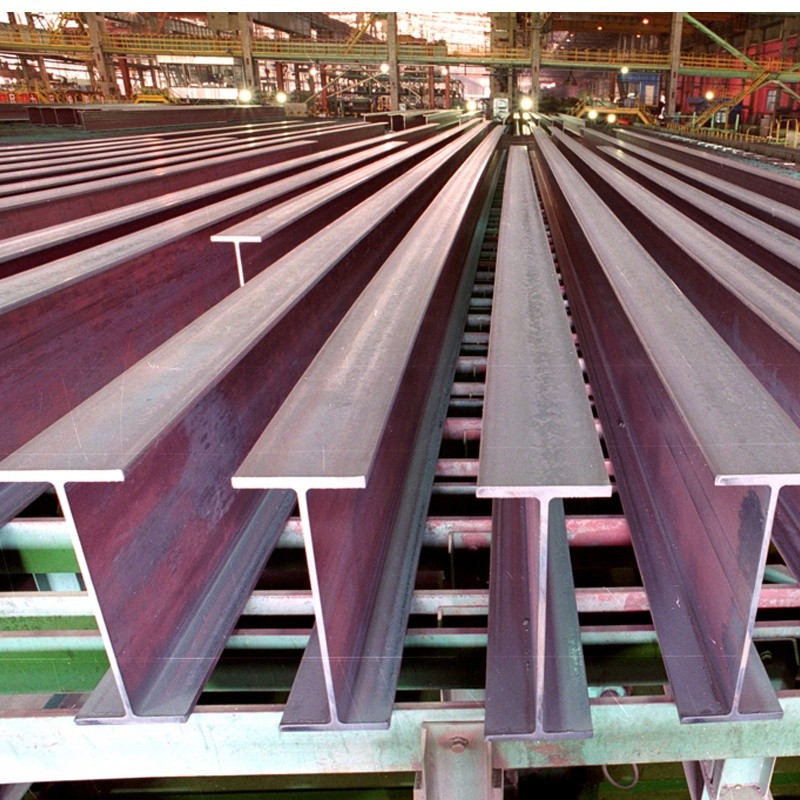

309S Galvanised Steel H Beam

  • 309S Galvanised Steel H Beam
  • 309S Galvanised Steel H Beam
  • 309S Galvanised Steel H Beam
  • 309S Galvanised Steel H Beam
  • 309S Galvanised Steel H Beam
Place of Origin China
Brand Name HNJBL
Certification SGS, BV
Model Number A36
Minimum Order Quantity 1ton
Price Negotiate
Packaging Details Waterproof,Standard Sea-worthy Packing
Delivery Time 5-25working days
Payment Terms L/C, T/T
Supply Ability 50000ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technique Hot Rolled Application Mechanical & Manufacture, Industry
Flange Thickness 3.2-45mm Web Thickness 4.5-70mm
Processing Service Bending, Welding, Punching, Cutting Model Number H Steel
Highlight

309S Galvanised Steel H Beam

,

Galvanised Steel H Beam 5.8m

,

5.8m galvanised i beam
Leave a Message
Product Description

Construction Structural Steel Profiles Hot Rolled I Beams H Beams



Specification



Product Name Construction Structural Steel Profiles Carbon Steel Stainless Steel Profiles Hot Rolled I Beams H Beams
Grade 201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Dimensions 5# 8# 10# 12# 14# 16# 18# 20# 22# 24# 25# 28# 30# 32# 34# 36# 40#
Standard AiSi ASTM JIS DIN EN BS
Tech cold rolled / hot rolled

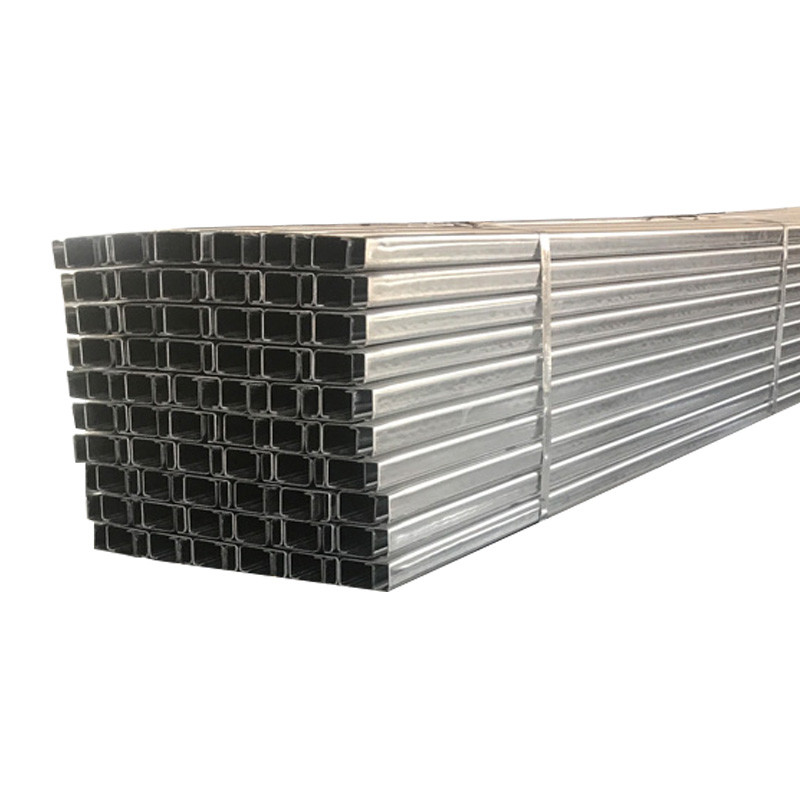

Type U channel, C channel, I&H channel
Length 5.8m,6m,12m or as per customer's request
Size 50mm*37mm*4.5mm -- 400mm*104*14.5
Applications 1.Industrial structure of the steel structure bearing bracket.
2.Underground engineering steel pile and retaining structure.
3.Petrochemical and electric power and other industrial equipment structure
4.Large span steel bridge components
5.Ships, machinery manufacturing frame structure
6.The train, automobile, tractor beam bracket
7.Port of conveyor belt, high speed damper bracket
Processing Service Bending, Welding, Decoiling, Punching, Cutting
Place of Origin Jiangsu China
Surface Treatment Pickled,Black,Bright,Polishing,Blasting,etc
Payment T/T terms, 30% pre-payment, 70% balance see B/L copy
Delivery Time 5-15 days for ordinary orders (standard orders ≦50 ton); specified orders needs final confirmation as per customer’s request
Name Model Specifications Theoretical weight (per meter)
Channel 5# 50*37*4.5 5.438
Channel 6.3# 63*40*4.8 6.634

Channel 8# 80*43*5.0 8.046
Stainless steel channel 10# width: 100mm
high: 48mm
wall thickness: 5.3mm
 Theoretical weight per meter: 10kg
Reference unit price: < $20 / kg
Channel 12# 120*53*5.5 12.059
Channel 14#A 140*58*6.0 14.535
Channel 14#B 140*60*8.0 16.733
Channel 16#A 160*63*6.5 17.24
Channel 16#B 160*65*8.5 19.752
Channel 18#A 180*68*7.0 20.174
Channel 18#B 180*70*9.0 23
Channel 20#A 200*73*7.0 22.637
Channel 20#B 200*75*9.0 25.777
Channel 22#A 220*77*7.0 24.999
Channel 22#B 220*79*9.0 28.453
Channel 25#A 250*78*7.0 27.41
Channel 25#B 250*80*9.0 31.335
Channel 25#C 250*82*1.1 35.26
Channel 28#A 280*82*7.5 31.427
Channel 28#B 280*84*9.5 35.823
Channel 28#C 280*86*11.5 40.219
Channel 30#A 300*85*7.5 34.463
Channel 30#B 300*87*9.5 39.173
Channel 30#C 300*89*11.5 43.883
Channel 32#A 320*88*8.0 38.083
Channel 32#B 320*90*10 43.107
Channel 32#C 320*92*12 48.131
Channel 36#A 360*96*9.0 47.814
Channel 36#B 360*98*11 53.466
Channel 36#C 360*100*13 59.118
Channel 40#A 400*100*10.5 58.928
Channel 40#B 400*102*12.5 65.208
Channel 40#C 400*104*14.5 71.488
