10CrMo910 Boiler Steel Plate DIN Standard Alloy Steel Plate
| Place of Origin | China |
|---|---|
| Brand Name | HNJBL |
| Certification | API, ce, RoHS, SNI, BIS, SASO, PVOC, SONCAP, SABS, sirm, tisi, |
| Model Number | 4140 |
| Minimum Order Quantity | 1ton |
| Price | Negotiate |
| Packaging Details | Waterproof,Standard Sea-worthy Packing |
| Delivery Time | 5-25working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Boiler Pressure Vessel Steel | Length | 1000-18000mm |
|---|---|---|---|
| Grade | 12Cr1MoV Alloy Steel | Tolerance | ±10% |
| Technique | Hot Rolled Or Cold Rolled | Shape | Plate, Coil, Strips, Flat Bar |
| Highlight | 10CrMo910 Boiler Steel Plate,Boiler Steel Plate DIN Standard,DIN Standard Alloy Steel Plate |
||
Product Description
DIN Standard 10CrMo910 Pressure Vessel Steel Plate
Pressure vessel steel plate 10CrMo910 with Cr-Mo alloy elements for boiler and pressure vessel built used. Current HNJBL steel rolling range for boiler steel plate 13CrMo44,thickness from 8-300mm,width from 1500-4000mm and length from 5000-14000mm,the unit weight for one piece of 10CrMo910 can reach 30 tons rolling from steel ingots. Simulated welded post heat treatment is suggested to be done when delivering 10CrMo910 boiler steel plate to improve the weldability when using steel plate 10CrMo910 to building pressure vessels.
Thickness: 6MM to 300MM,
Width: 1500mm to 4050mm,
Length: 3000mm to 15000mm
Chemical Composition and Mechanical Properties:
| 10CrMo9 10 Chemical Composition | |||||||
| Grade | The Element Max (%) | ||||||
| 10CrMo9 10 | C | Si | Mn | P | S | Al | Cr |
| 0.06-0.15 | 0.50 | 0.40-0.70 | 0.035 | 0.030 | 2.00-2.50 | ||
| Cu | Ni | Mo | Nb | Ti | V | ||
| 0.3 | 0.9-1.0 | ||||||
| Grade | 10CrMo9 10 Mechanical Property | |
| Thickness | Yield | |
| 10CrMo9 10 | mm | Min Mpa |
| 6-16 | 310 | |
| 16-40 | 300 | |
| 40-60 | 290 | |
| 60-100 | 270 | |
| 100-150 | 250 | |
Technical Requirements & Additional Services:
♦ Low temperature impacting test
♦ Rolling under standard NACE MR-0175 (HIC+SSCC)
♦ Ultrasonic test under EN 10160,ASTM A435,A577,A578
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ Shot blasting and Painting,Cutting and welding as per end user’s demands

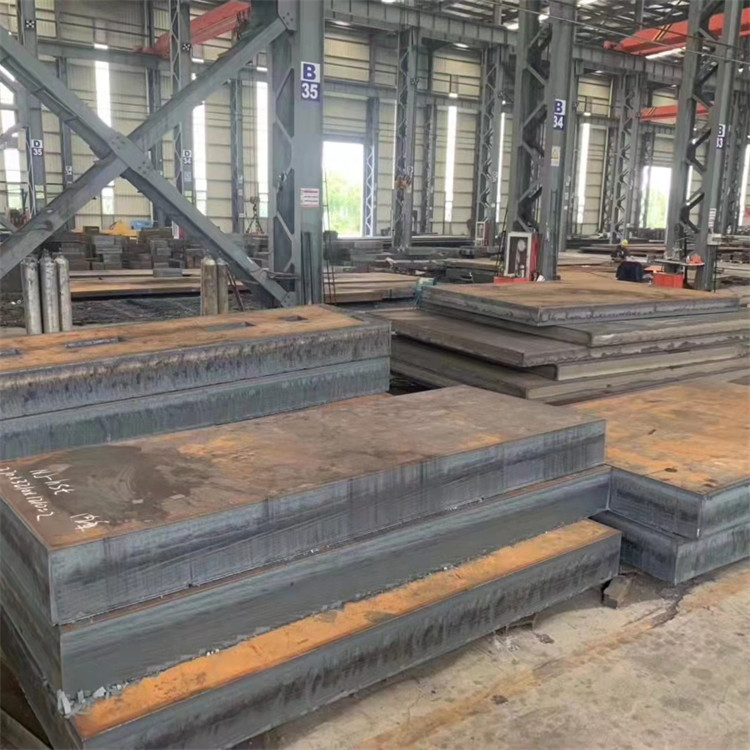

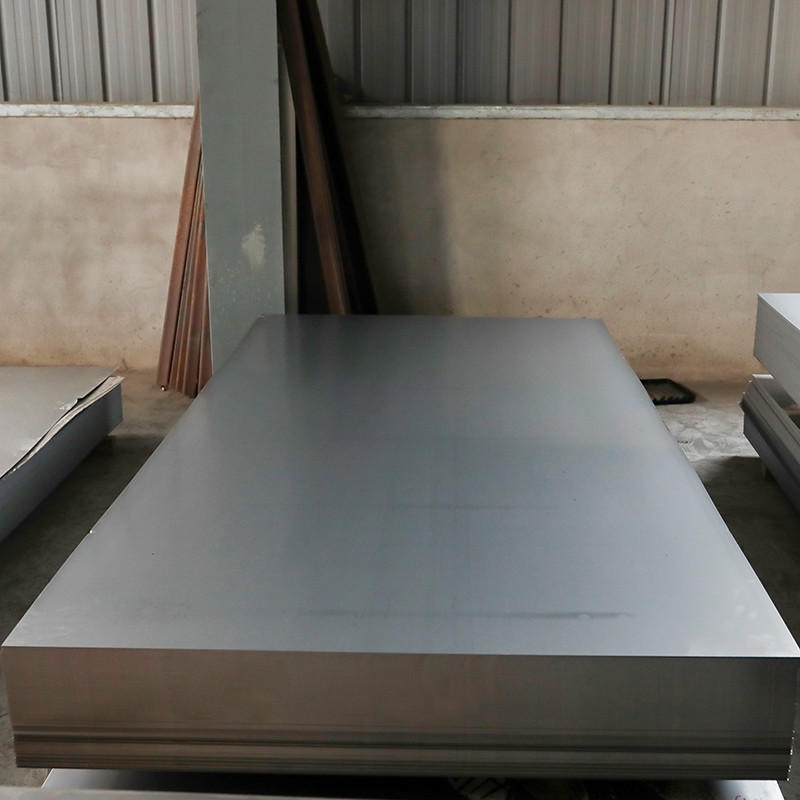

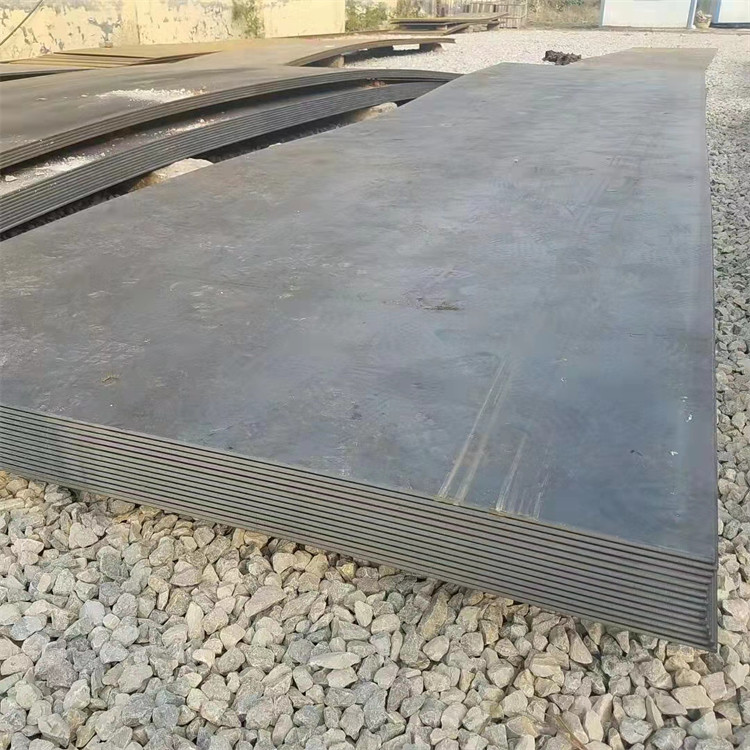

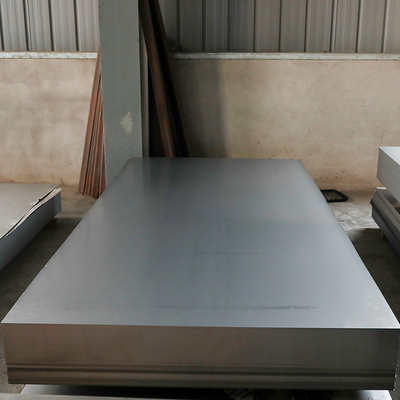

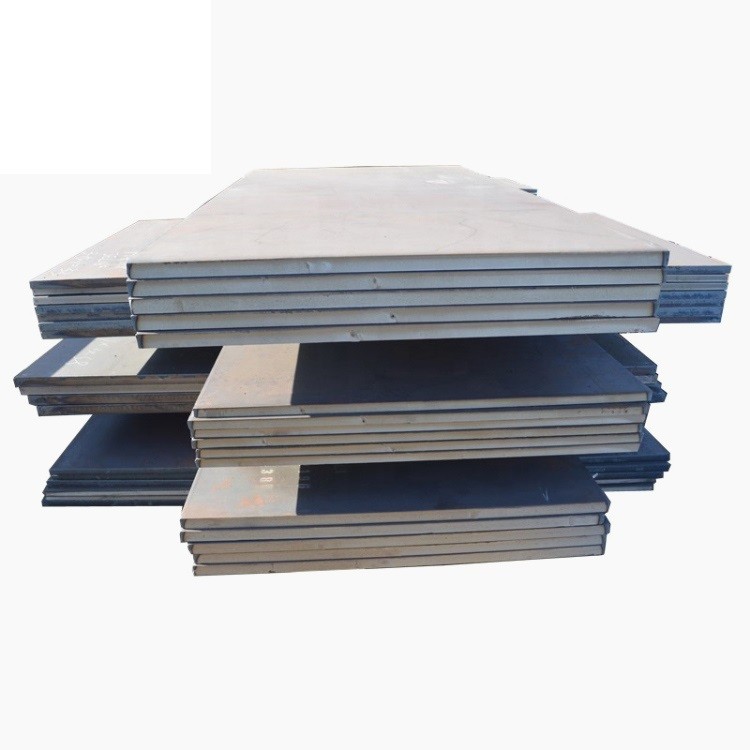

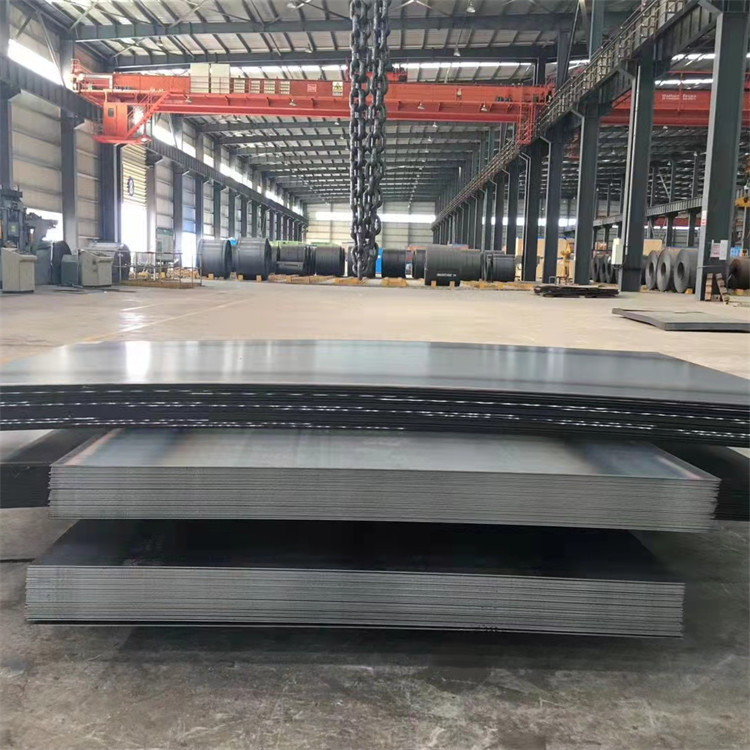

Product pictures
Our Adavantages
1. Certificates: ISO, API, BIS, TUV, ABS, BV, LR, DNV GL, CCS, RMRS, RINA, etc.
2. Third Party Inspection: SGS, BV, Intertek; ABS,LR, DNV GL, NK, CCS, RMRS, RINA, KR.
3. Available Test: UT, MT, Impact Test, PWHT, etc.
4. Specification limit is matchless in China even in the World, typical examples:
The Min. thickness for shipbuilding steel plates is 3mm.
The Min. thickness for hot rolled steel plates is 0.6mm.
The Max. width for pressure vessel steel plates: exceeds 5000mm.
